how to create pcb design for rak3172-based lorawan® end-device using kicad

RAK3172 is a compact, low-power LoRaWAN module designed for long-range IoT applications. It supports standard AT commands for quick integration and can also run independently using RUI3. This eliminates the need for an external MCU, making it ideal for simple, efficient end-device designs.

In this guide, you'll learn how to design a custom PCB for a standalone LoRaWAN device using KiCad, with the RAK3172 as the core module. This serves as a practical starting point for building custom IoT hardware using open-source design tools.

Installation of KiCad (Version 9)

KiCad is an open-source EDA tool used to design schematics and PCBs. It's increasingly favored by engineers and makers for its robust features and active development community.

If you haven't installed KiCad yet, download it from their official website. Choose the appropriate installer for your operating system and follow the setup instructions.

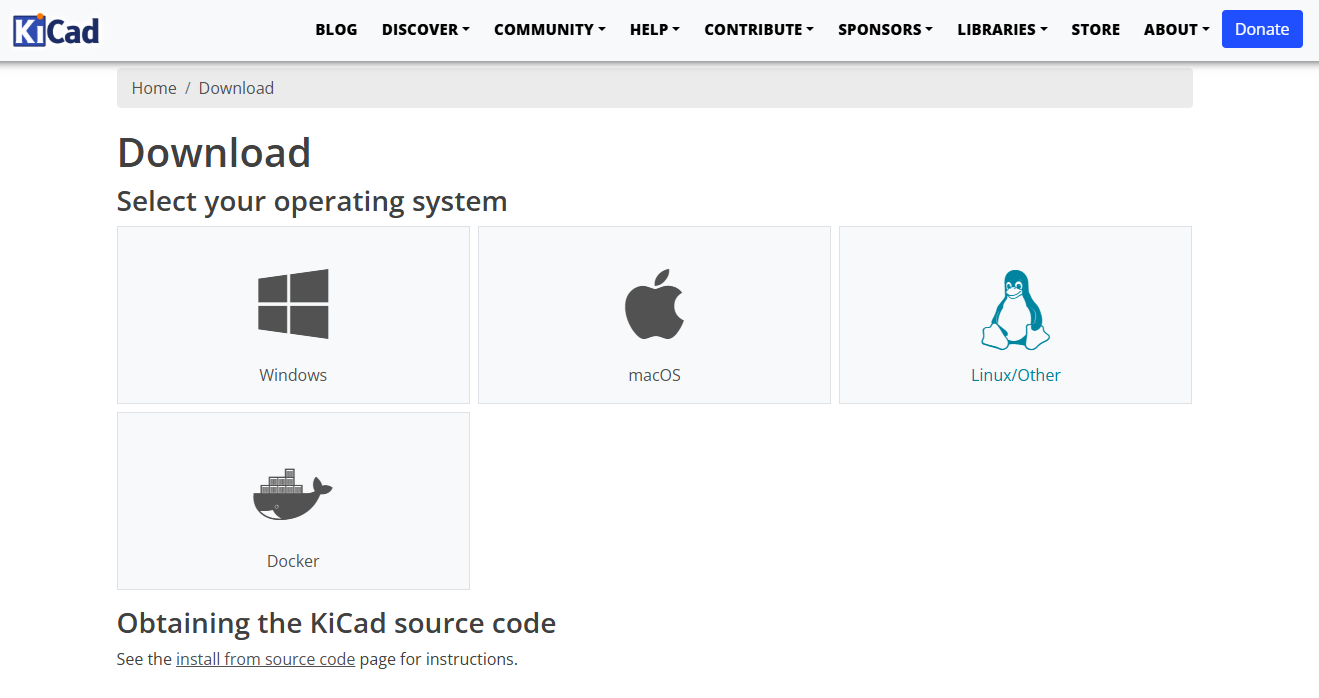

KiCad Download Page
Figure 1: KiCad Download Page



Getting RAK3172 KiCad Files from Snapmagic

🗒️
NOTE

You can skip this step if RAK3172 is already added in the KiCad version you use.


To create a PCB design for RAK3172, you need to have the schematic symbol and footprint layout for the RAK3172 LoRaWAN Module. You can download the compatible files from Snapmagic (formerly known as Snapeda).

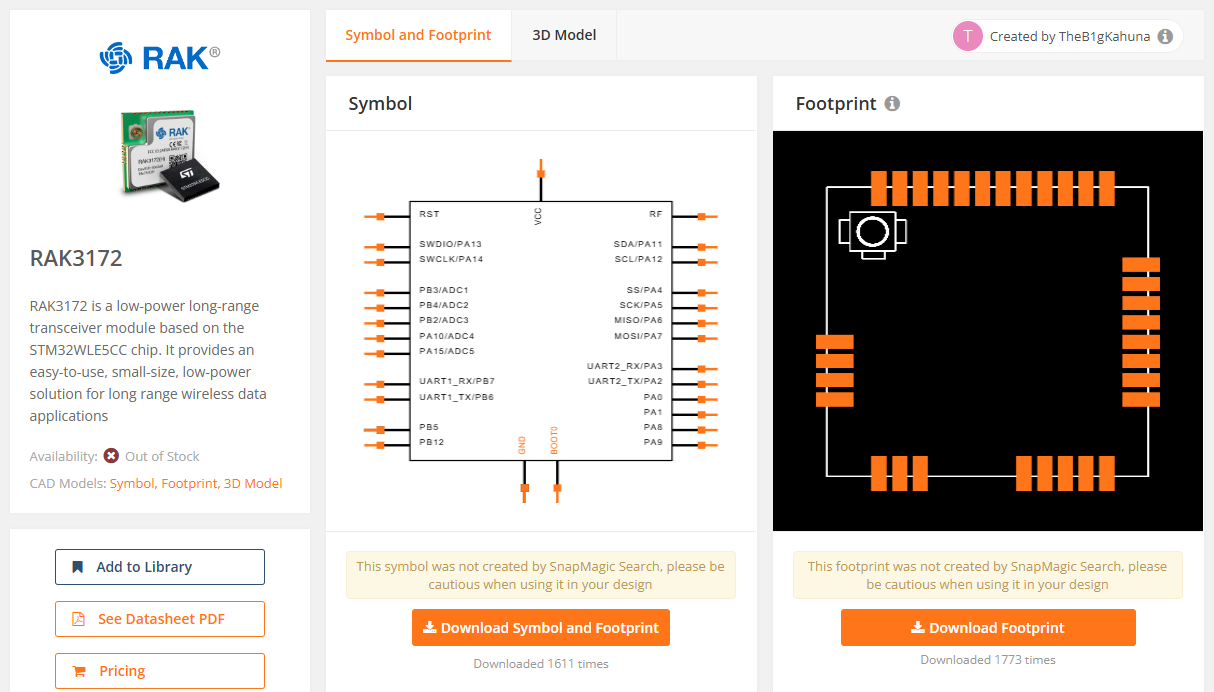

RAK3172 Snapeda Page
Figure 2: RAK3172 Snapeda Page



The files include the schematic symbol, PCB footprint, and 3D step file. You need to select the correct EDA software and version, which in this case is KiCad. Download these files and save them on your PC.

🗒️
NOTE

You may need to create an account on Snapmagic to download these design files for free.


Adding the RAK3172 Schematic and PCB Layout to KiCad

Adding the schematic symbol and PCB footprint in KiCad is straightforward. KiCad allows you to organize libraries in several ways, whether by project, design, or other criteria. However, library management strategies are beyond the scope of this tutorial. For simplicity of this guide, files are kept in a single local directory.

To begin, open KiCad and click on Preferences. From there, you can add the schematic symbol for the RAK3172 LoRaWAN module under Manage Symbol Libraries and the PCB footprint.

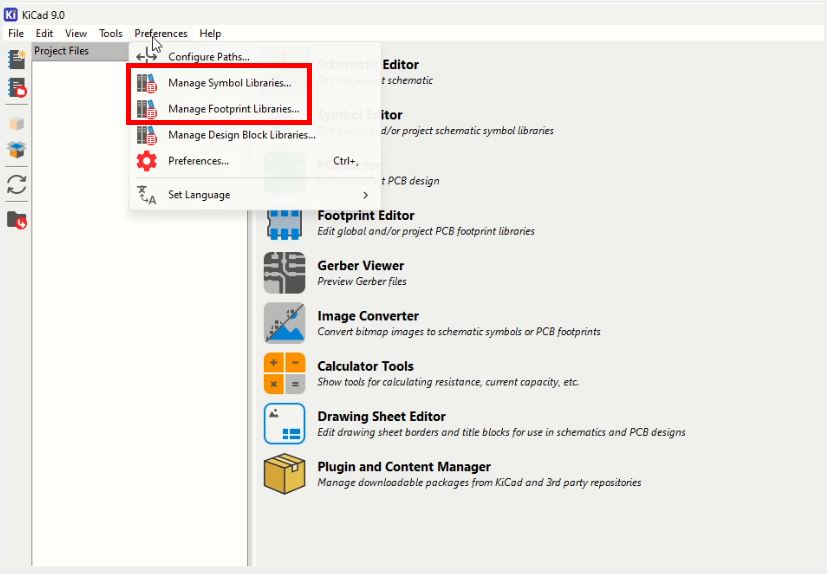

KiCad Preferences Menu
Figure 3: KiCad Preferences Menu


Designing the Schematic

After saving the files in their designated locations on your PC, you can begin designing the schematic for the RAK3172 LoRaWAN module. This step involves navigating KiCad's schematic editor, including tasks like zooming, panning, placing components, wiring connections, and organizing the layout.

RAK3172 Imported on KiCad
Figure 4: RAK3172 Imported on KiCad


Here’s a complete schematic that includes all the essential parts:

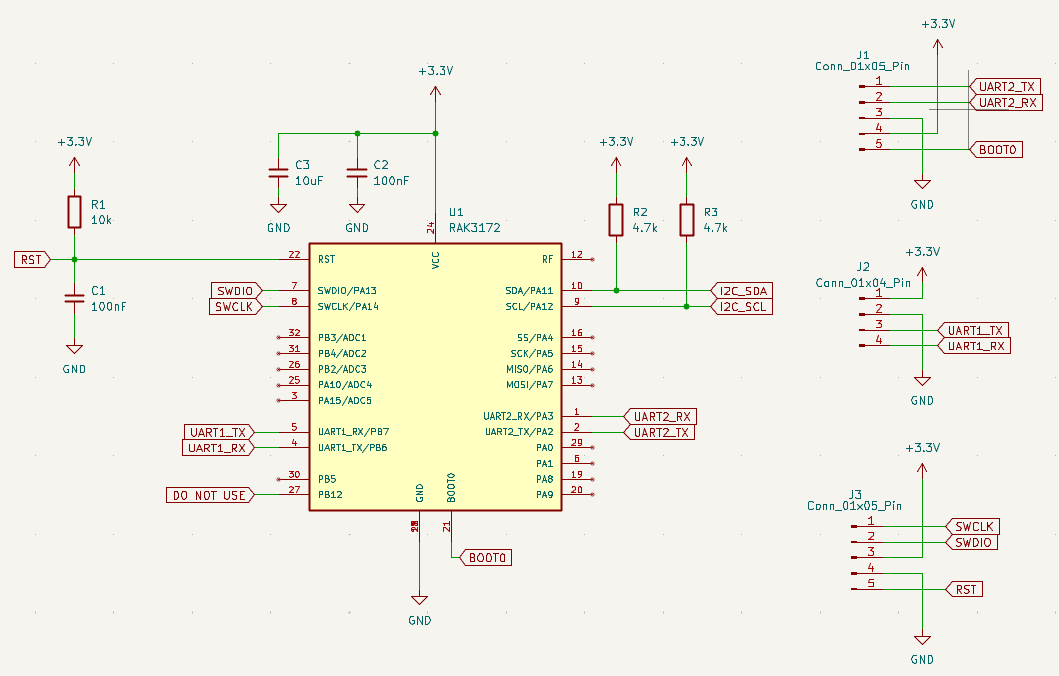

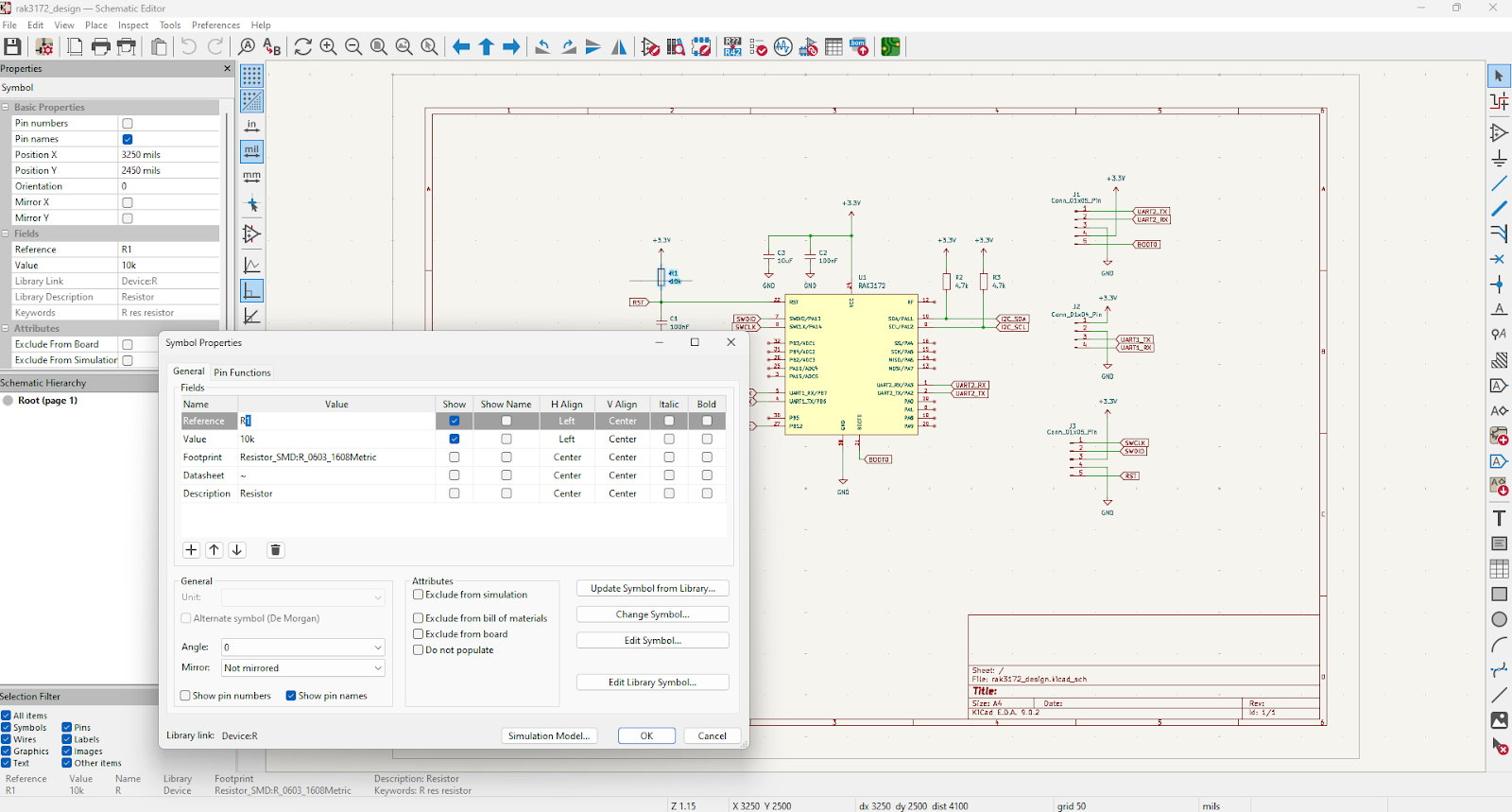

RAK3172 Schematic in KiCad
Figure 5: RAK3172 Schematic in KiCad



Creating the PCB Layout

Since the PCB footprint for the RAK3172 has been added to KiCad, you can double-click the RAK3172 schematic symbol to configure the Footprint field. Navigate to the location of the footprint file named RAK3172.KiCad_mod.

In  KiCad, the file extension for PCB footprints is KiCad_mod, while the file extension for schematic symbols is KiCad_sym.

To begin your PCB layout, click Switch to PCB Editor. This action will link the schematic design to your PCB layout.

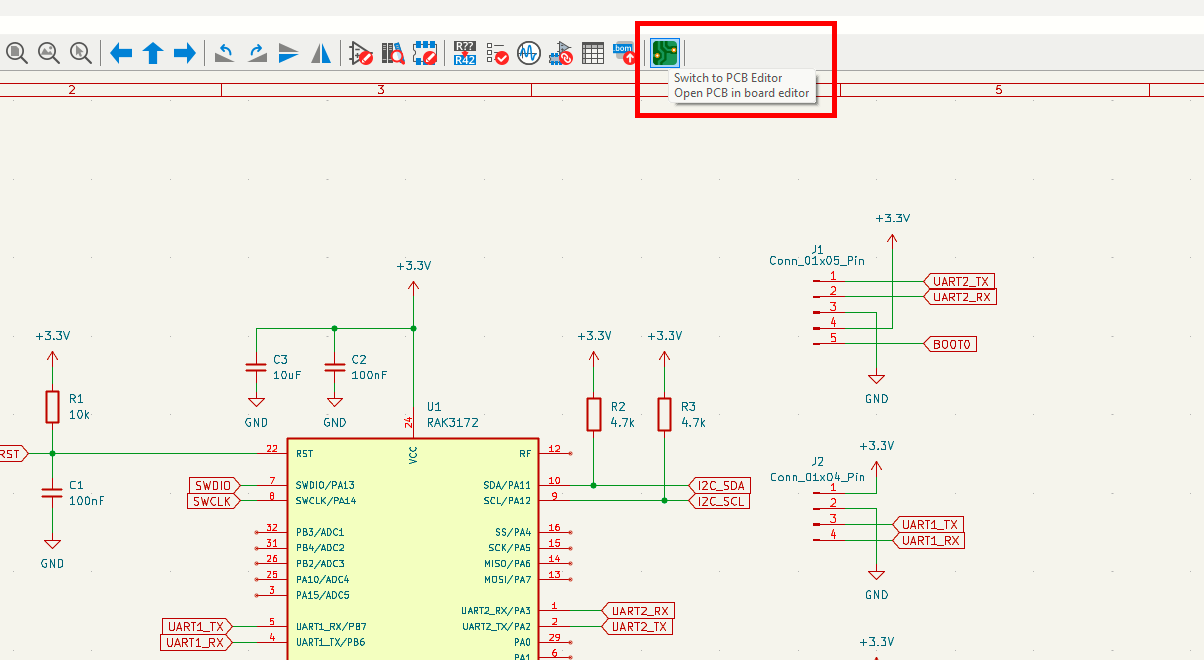

KiCad Switch to PCB Editor
Figure 6: KiCad Switch to PCB Editor



This will also allow you to switch between the schematic and PCB layout as needed. From here, you can begin your PCB layout.

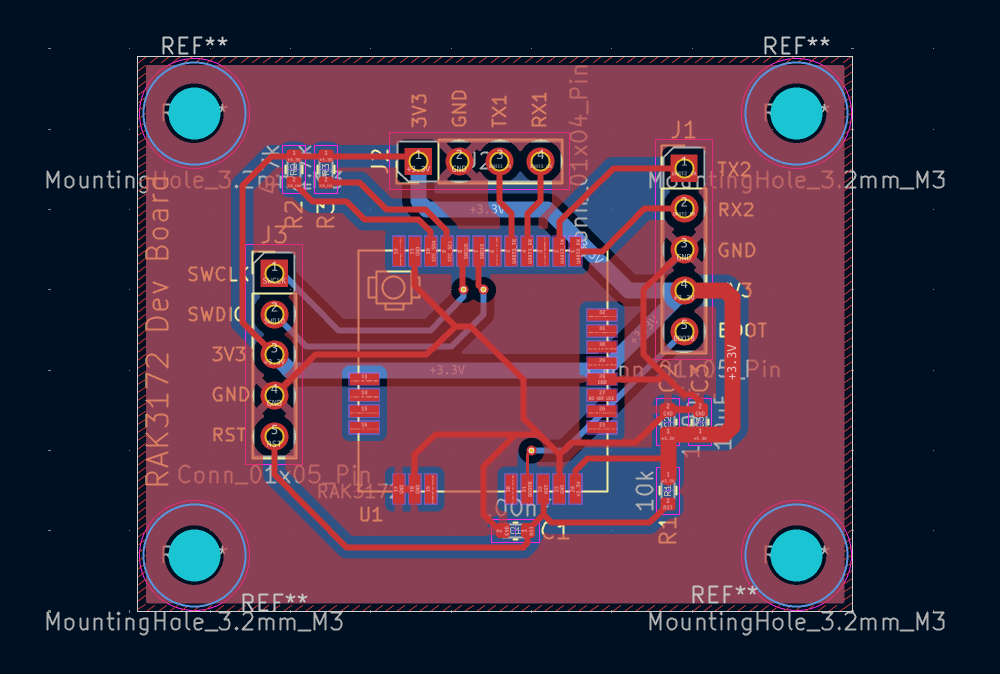

PCB Editor RAK3172 PCB Layout
Figure 7: PCB Editor RAK3172 PCB Layout



Generating Manufacturing Files

Once the PCB design is complete, generating the Gerber and drill files required by the PCB manufacturer is straightforward. Simply click on File and then select Fabrication Output

In this menu, you will find several options for generating production files. Select Gerbers, and within the Gerbers settings, make sure to also generate the drill files. The output files will be saved in the folder you specify.

After the files are generated, compress the entire folder into a .zip file. This file will be submitted to your PCB manufacturer for fabrication.

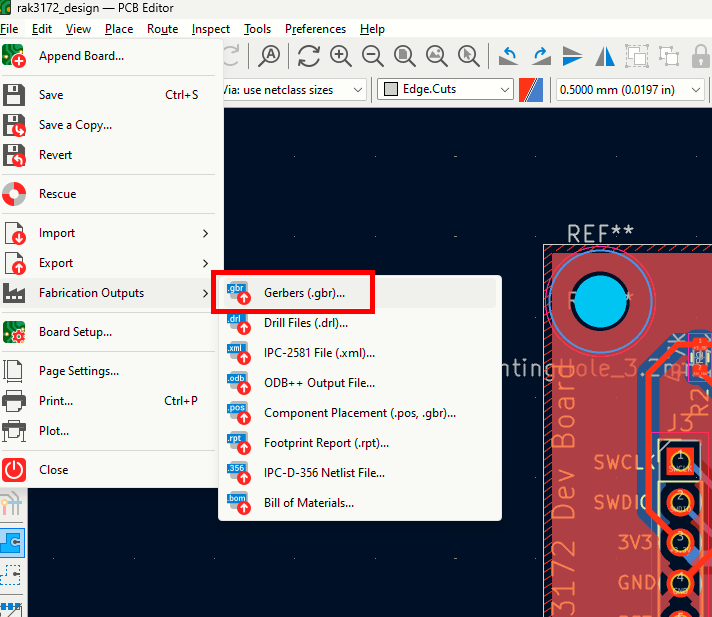

PCB Editor Export Gerber Files
Figure 8: PCB Editor Export Gerber Files



These are the files that you will be able to generate.

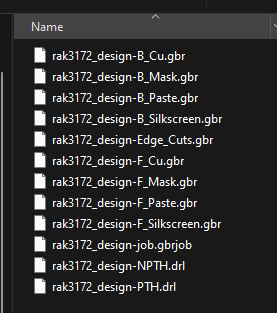

PCB Editor All Gerber Files Available
Figure 9: PCB Editor All Gerber Files Available



Uploading Gerber Files to JLCPCB

Once the zip file is generated, you can use these files as production files for your PCB manufacturer. In this guide, JLCPCB is used as an example.

If the files are correct, you should be able to see the PCB design you created by uploading the zip file to the PCB manufacturer's website. Typically, you can simply drag the zip file or the raw Gerber files onto the website to immediately view a preview and receive an estimated cost.

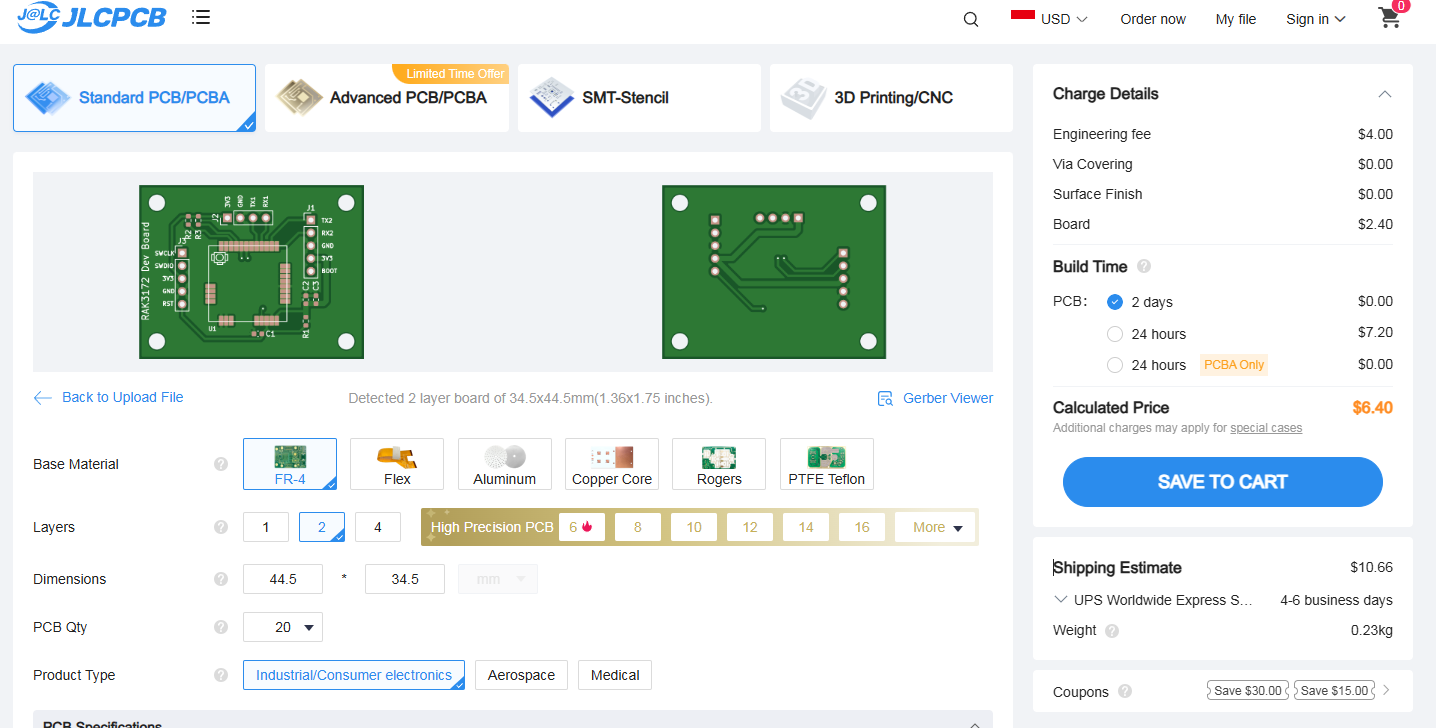

JLCPCB Gerber Quotation
Figure 10: JLCPCB Gerber Quotation
🗒️
NOTE

Need a step-by-step visual guide? Watch this "7-Step LoRaWAN PCB Design with RAK3172 (No MCU! Only $5.99) KiCad Tutorial" video. It covers installing KiCad, adding the RAK3172 libraries, designing the schematic and PCB, generating Gerber files, and uploading them to JLCPCB.
