how to store and visualize actility data with datacake and mqtt (part 3)

This guide explains how to forward data via MQTT to an InfluxDB database, visualize it in Grafana using Node-RED, and simulate network coverage for the RAK2560 Sensor Hub connected to a WisGate RAK7268V2 gateway.

This tutorial is the last part of the Actility guide series:

• Part 1: Connect WisGate RAK7268V2 to Actility
• Part 2: Connect the WisNode RAK2560 Sensor Hub to Actility
• Part 3: Use Actility's Connections to Forward Data for Storage and Visualization (this guide)

Connect Actility to Datacake and MQTT Broker

Sensor data in the Actility LoRaWAN server represents only a small part of a complete sensor application. The data must be forwarded to visualization platforms or processing systems, eventually even triggering actions based on sensor values.

Actility offers many various interfaces in the Connections section that allow sensor data to be exported from the LoRaWAN server. This guide uses connections to an MQTT broker and to Datacake as examples.

All integrations are configured in the Actility Console’s Connections section. To begin:

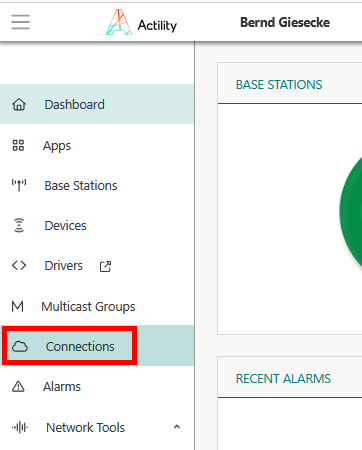

Figure 1: Actility Connections Tab

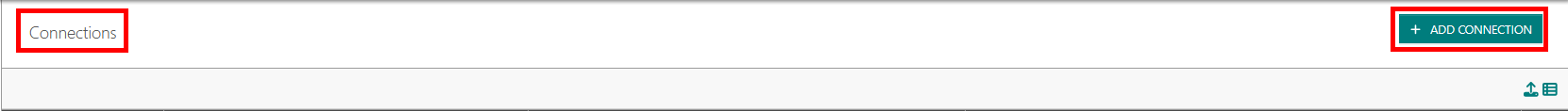

1. In the Connections window, click on ADD CONNECTION.

Figure 2: Click the Add Connection Button

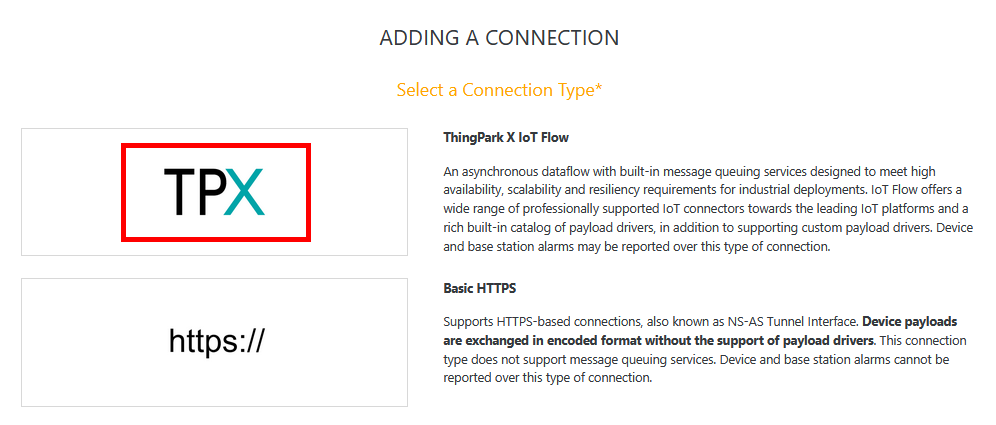

2. Then, select ThingPark X IoT Flow.

Figure 3: Actility Select Connection Type

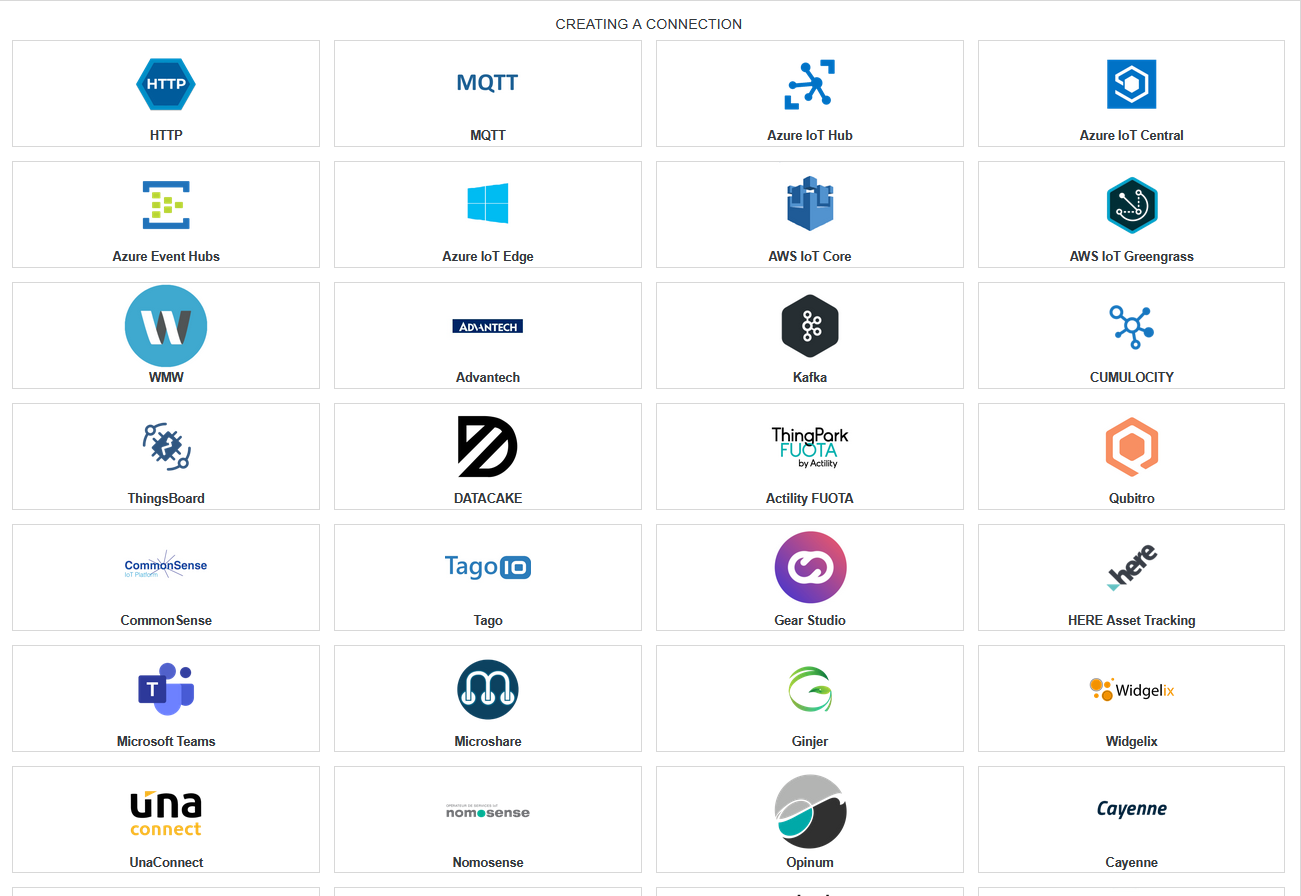

3. A list of available connections will appear.

Figure 4: Actility Connections Available

Connect Actility to Datacake

Before setting up a connection, create a Datacake account. A free trial is available.

Once the account is set up, go to the dashboard and generate the API Token from your Datacake Account settings, since this token will be required during the connection setup.

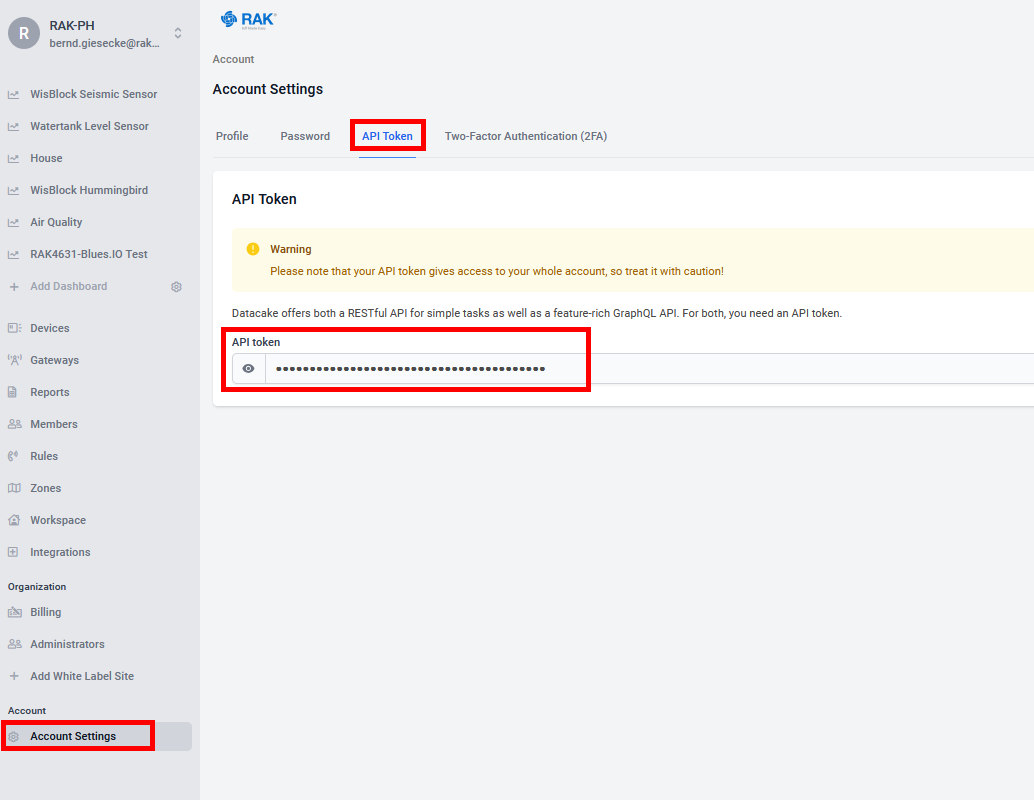

Figure 5: Datacake API Token

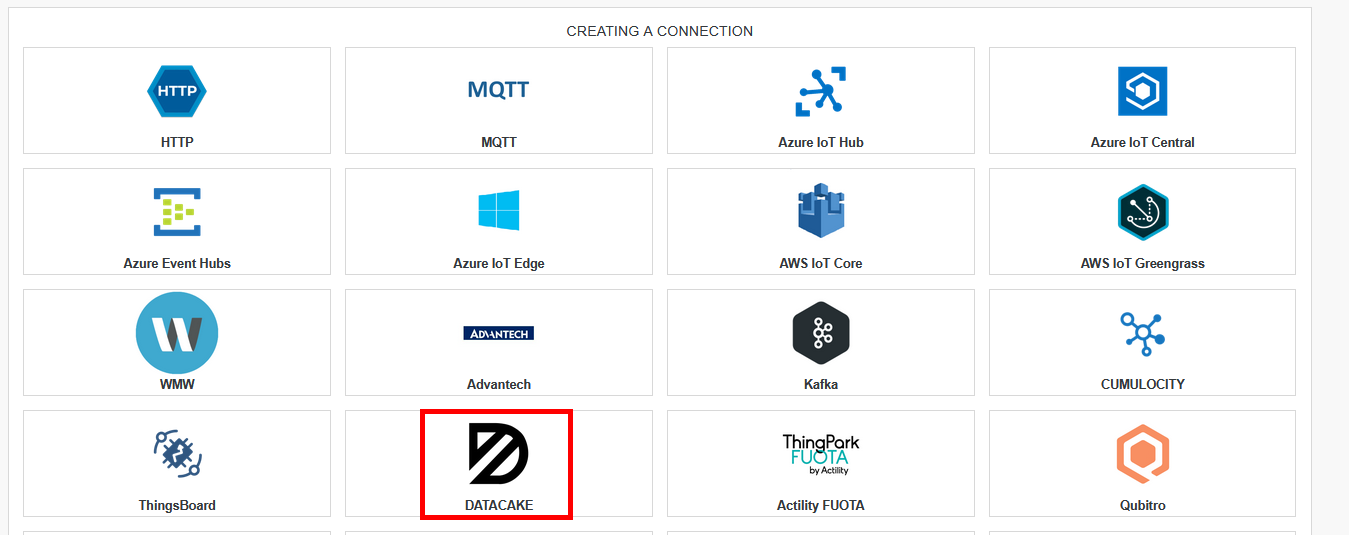

1. Open the connection overview, click on ADD CONNECTION, select ThingPark X IoT Flow, then choose the Datacake option.

Figure 6: Actility Datacake Connection

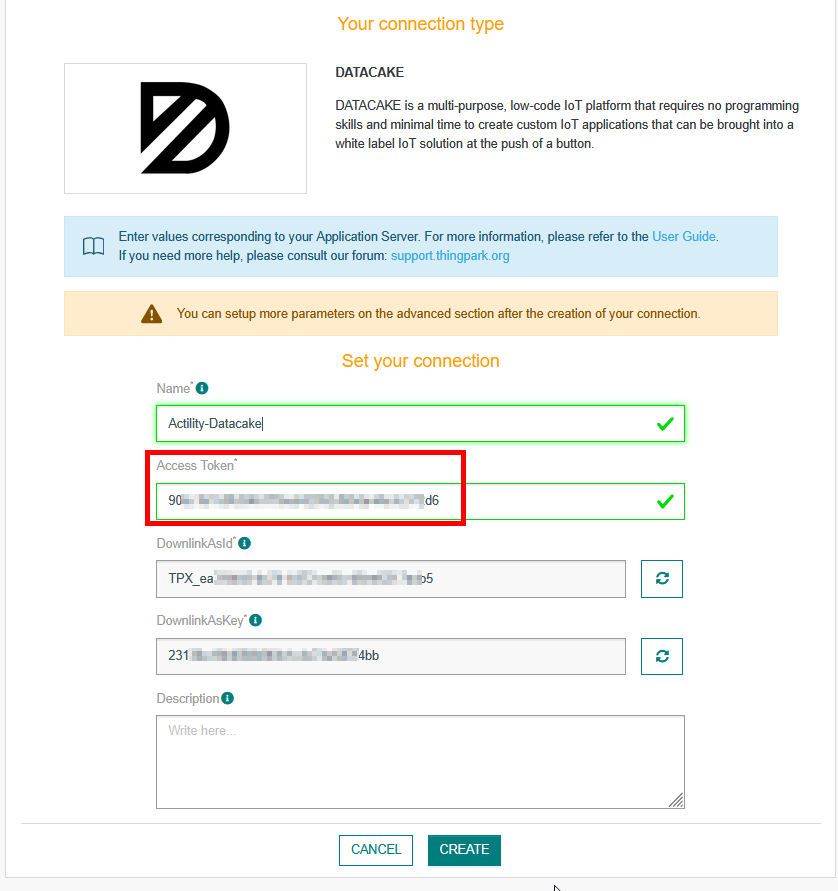

2. In the next window, enter the information required to set up the connection to Datacake. Paste the API token retrieved from Datacake into the Access Token field. When finished, click Create.

Figure 7: Actility Datacake Connection Access Token

3. After the connection is created, go to the Devices overview in the Actility Console and open the device details, then click on the ADD A CONNECTION button to link the Datacake integration.

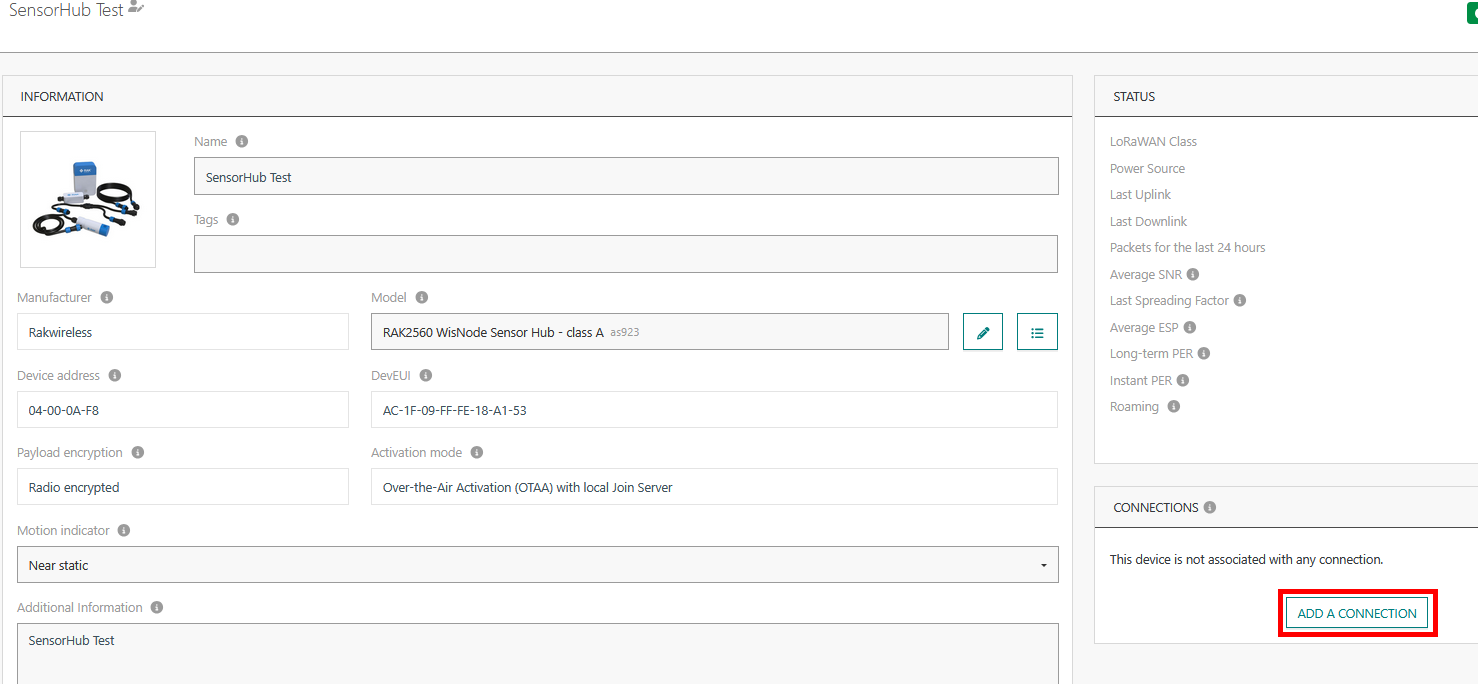

Figure 8: Actility Console Add Connection

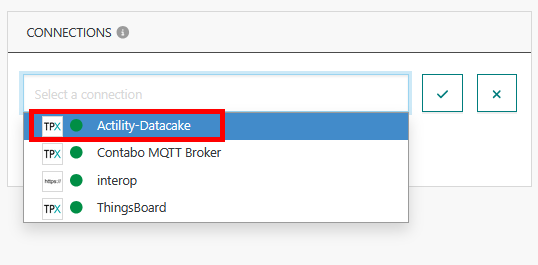

4. In the connections list, select Actility-Datacake and click the check button to confirm the selection.

Figure 9: Select Actilty-Datacake on the connection list

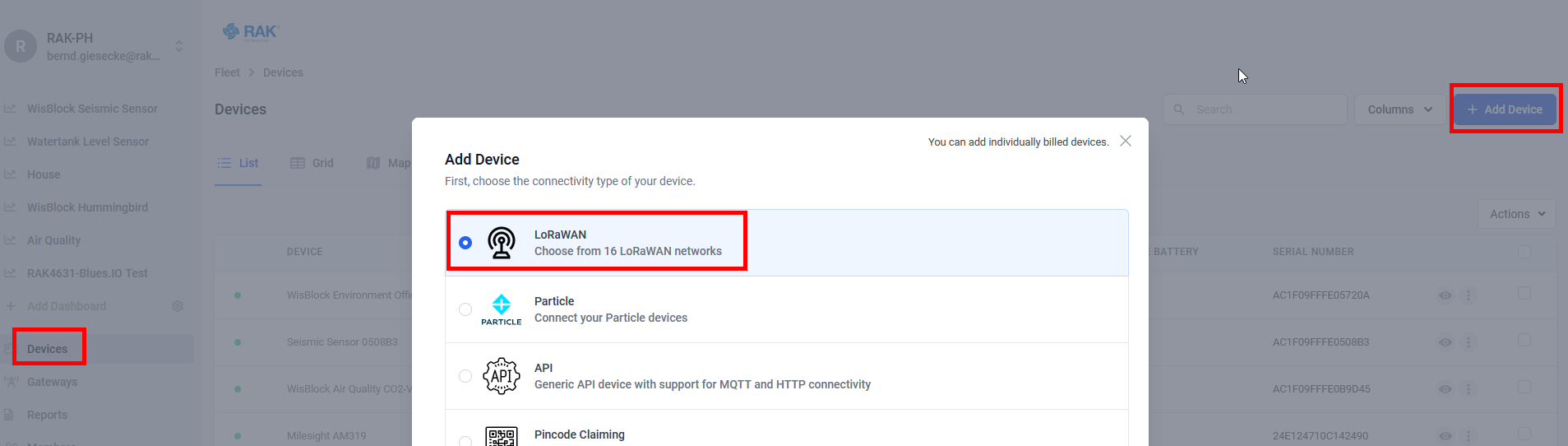

5. Go to the Datacake account. Open Devices, click + Add Device, and select LoRaWAN as device type.

Figure 10: Datacake Add LoRaWAN Device

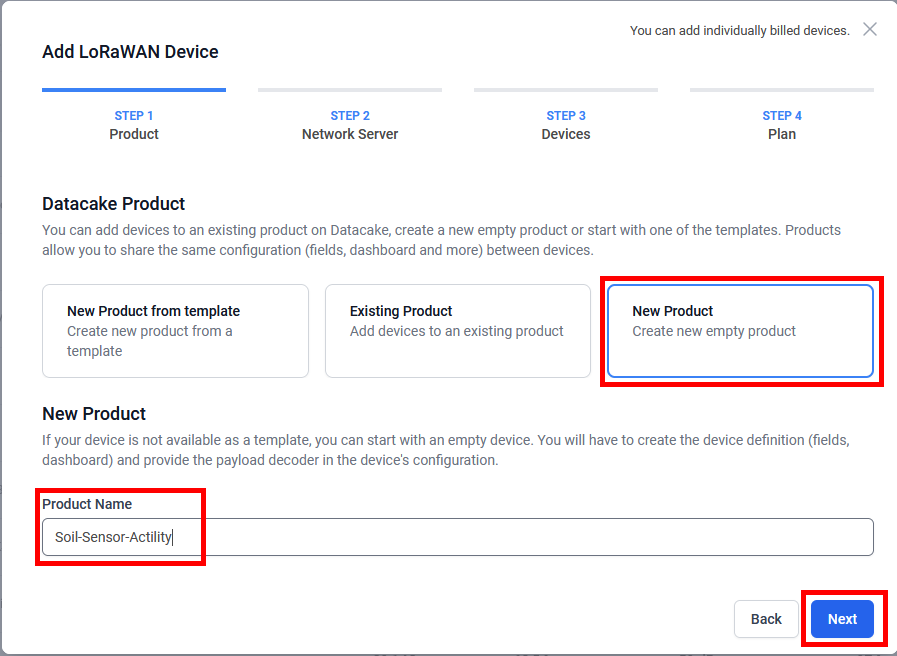

6. In the Add LoRaWAN Device window, select New Product and enter a Product Name, then click Next.

Figure 11: Datacake Add New Product and Product Name

7. Select Actility as the LoRaWAN server.

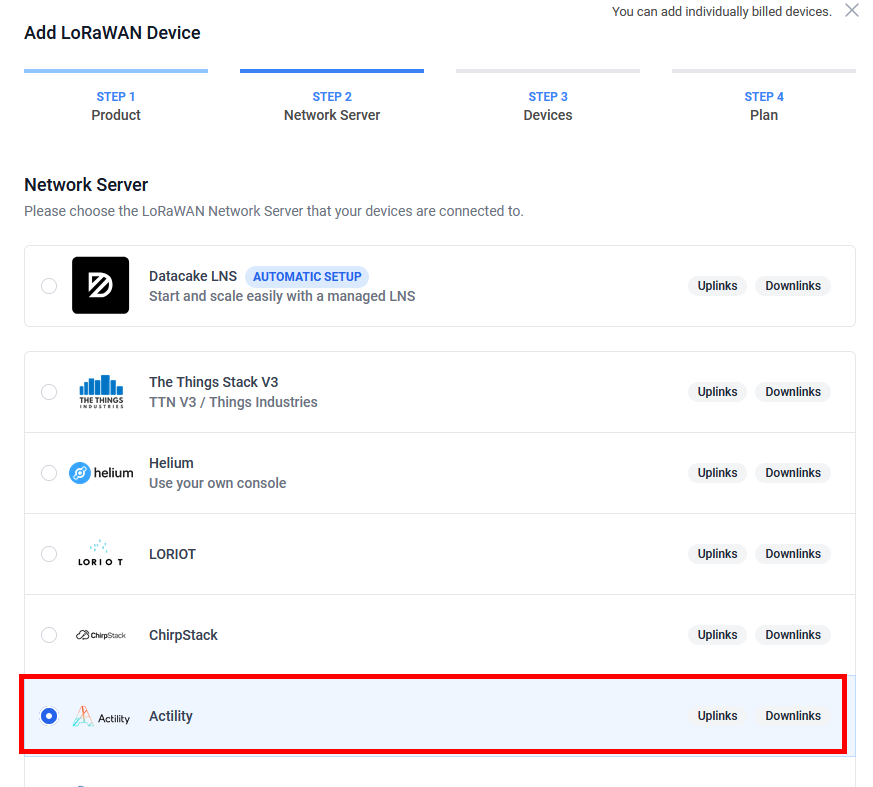

Figure 12: Select Actility As the Network Server

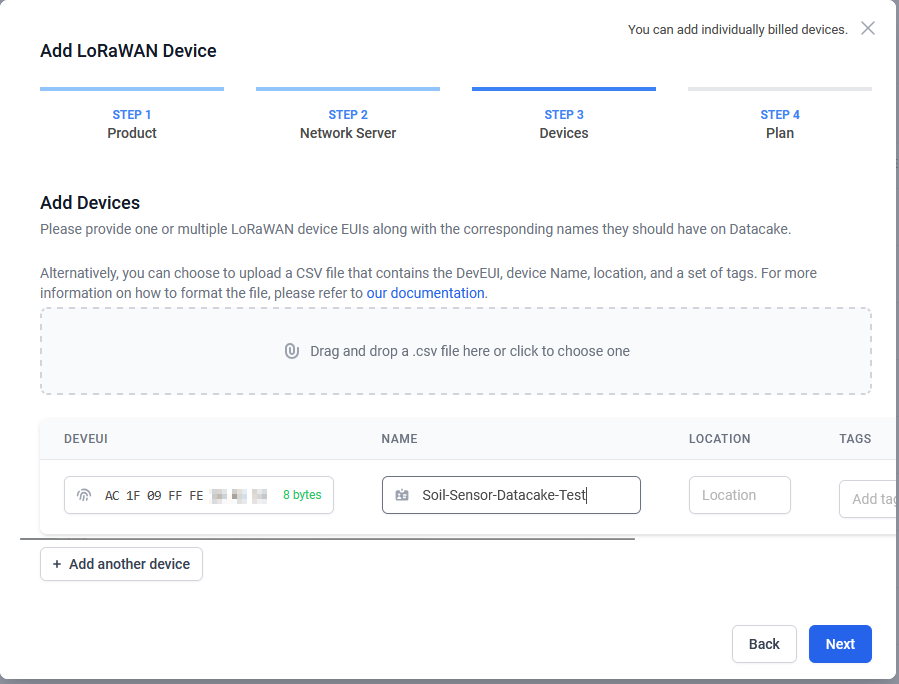

8. In the next window enter the DevEUI of the SensorHub and a name.

Figure 13: Datacake Add LoRaWAN Device

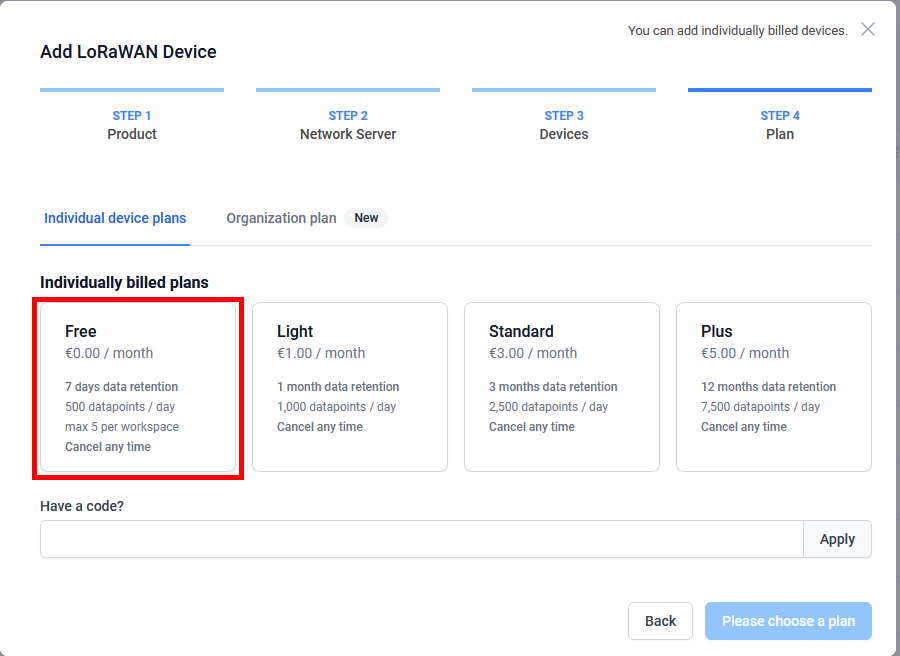

9. Add the device to select a plan. Datacake offers free plans with a limited number of devices and limited data retention time.

Figure 14: Datacake Select the Free Bill Plan

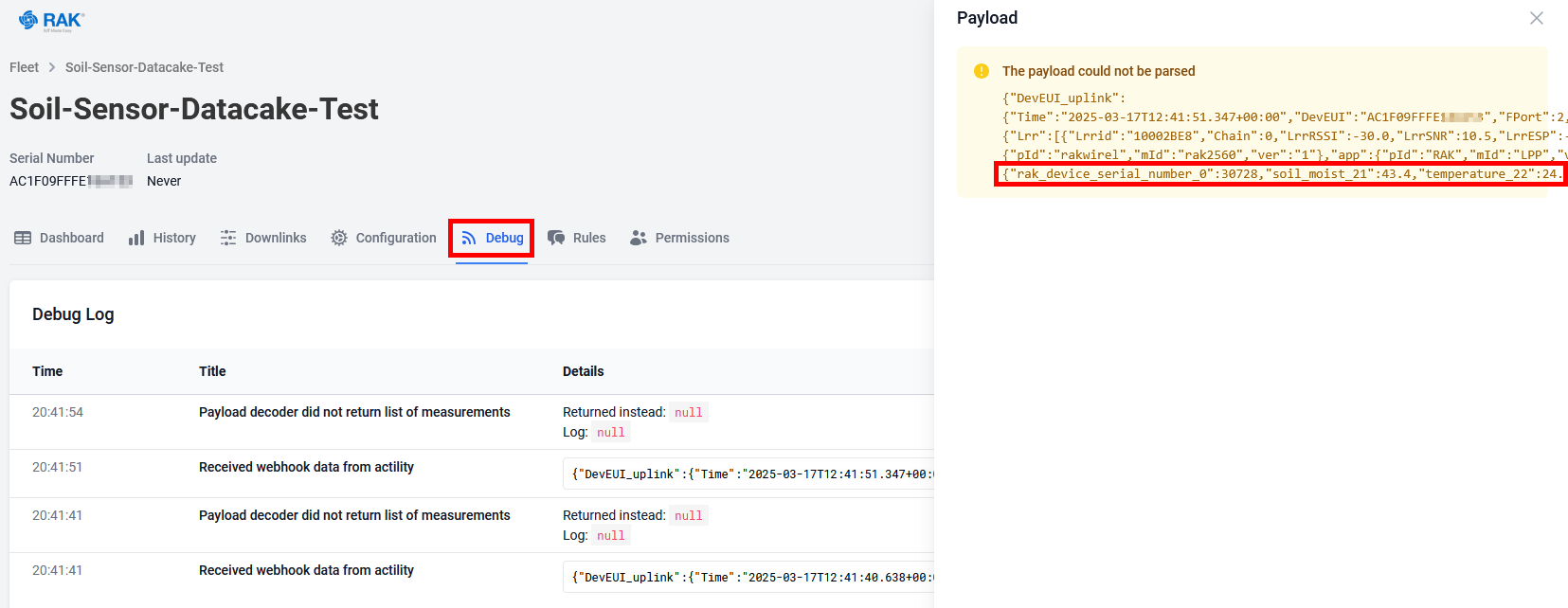

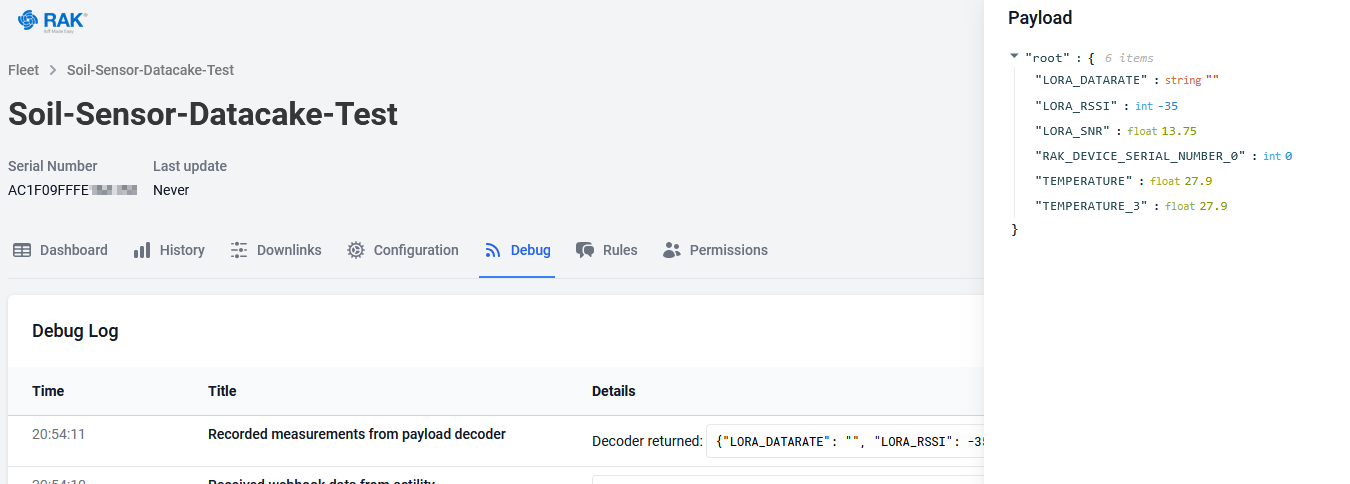

10. Open the device in Datacake and go to Debug. If the connection is successful, the log will show the data received from Actility.

Figure 15: Datacake Select Go to the Debug Tab

11. After adding a Payload Decoder in the Configuration, the decoded payload can be read on the screen.

Figure 16: Datacake Add the Decoder

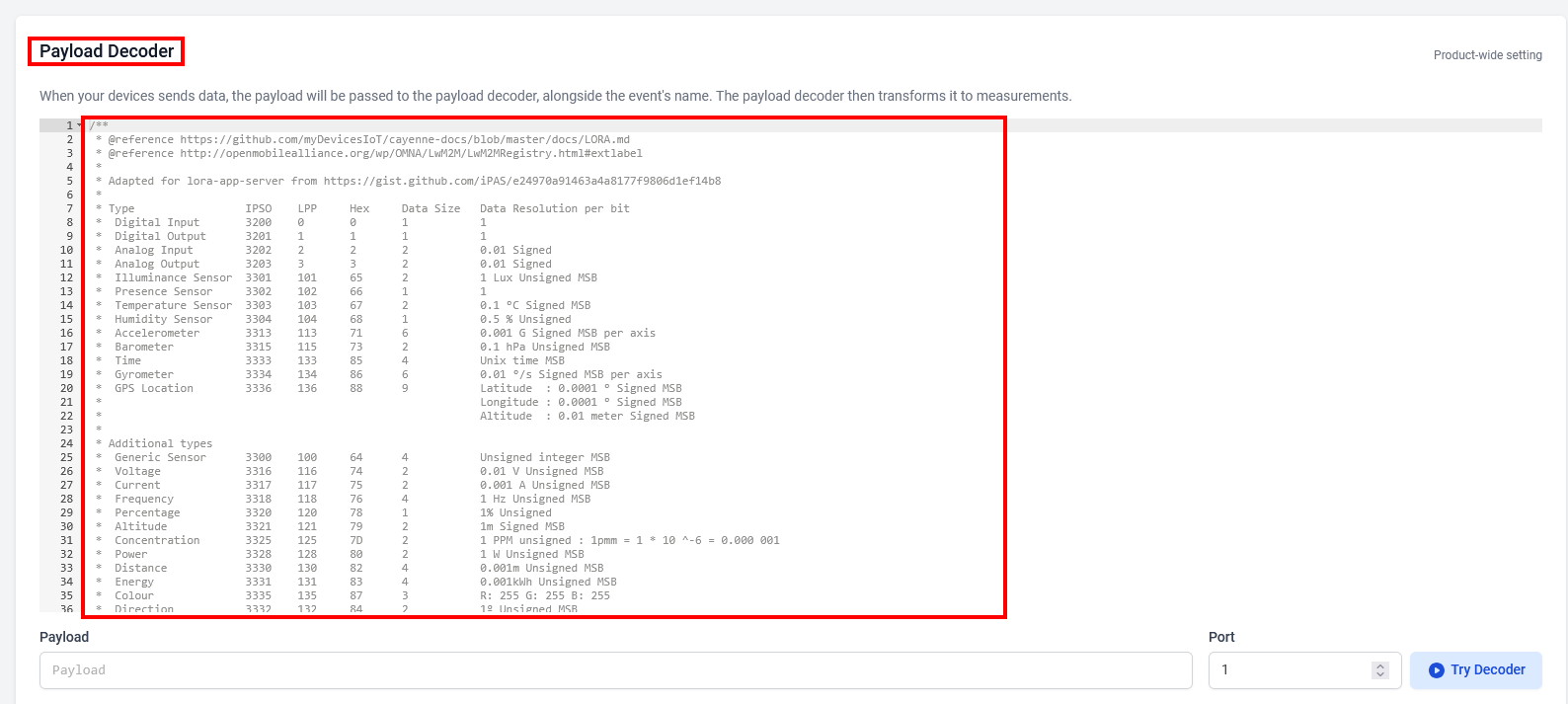

12. The payload decoder must be added in the device Configuration. Scroll down to the Payload Decoder and paste the decoder there, replacing the existing code.

Figure 17: Payload Decoder Sensor Data

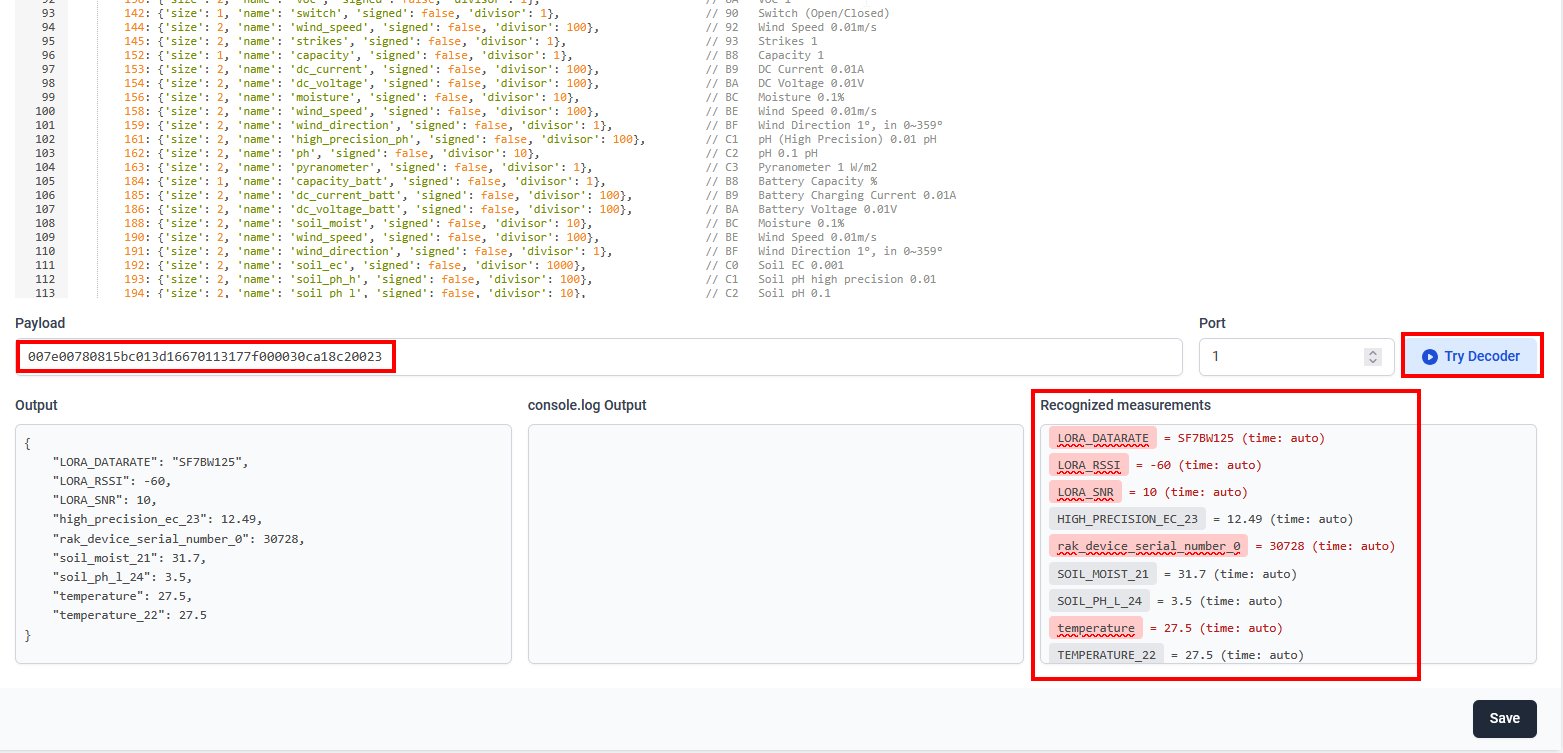

13. Next, the data fields have to be generated. The easiest way is to use an example payload (e.g., from the Debug output) and run it through the decoder by clicking Try Decoder.

Figure 18: Datacake Try Payload Decoder

14. All sensor data fields are shown in the Recognized measurements field

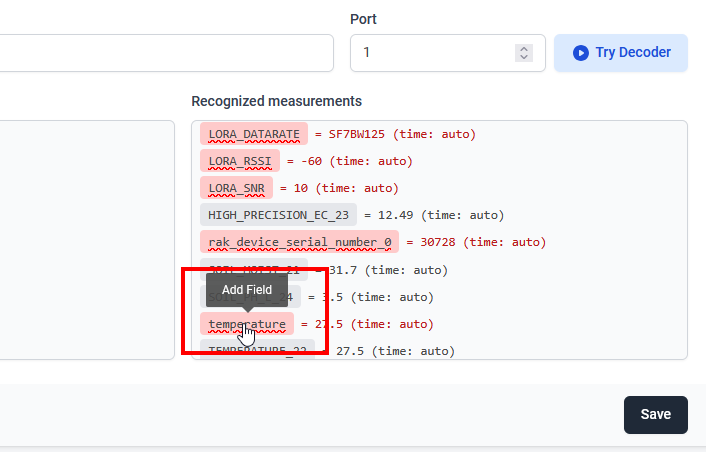

15. On the first run, all data fields are marked red. Hover over a data field and left-click to automatically create a matching Datacake field.

Figure 19: Add Field After Decoder Test

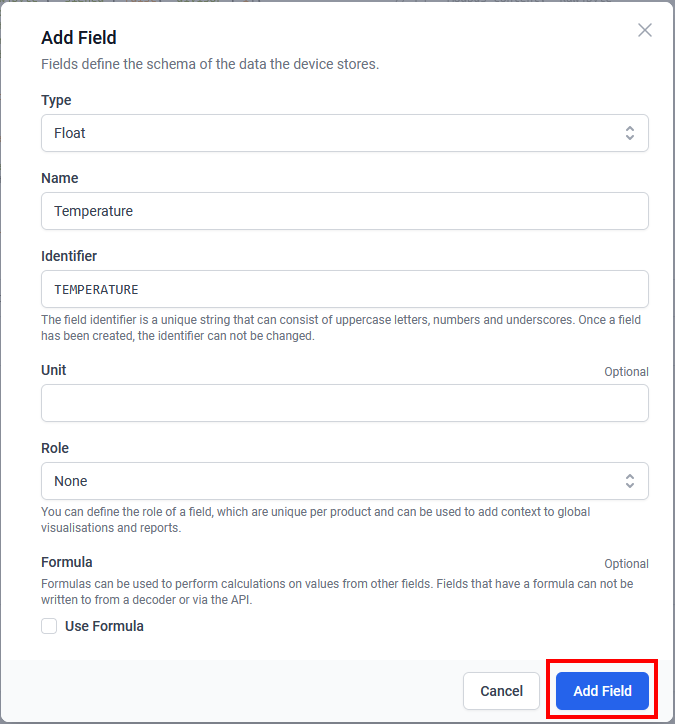

16. A pop-up window will appear where you can add the data field. Change the entries if needed, then click Add Field.

Figure 20: Add Field Information

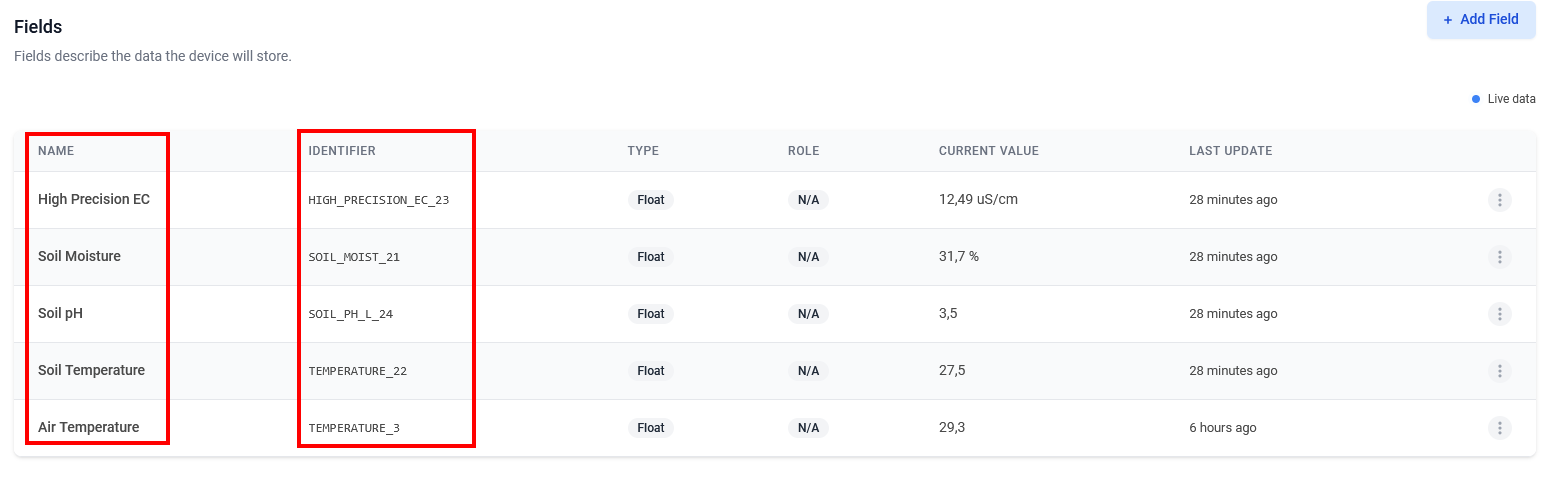

17. Repeat steps 15 to 17 for all sensor data fields from the decoder test run. At the end, all fields should be listed in the Fields view.

• NAME: The sensor field name used for the dashboard creation.
• IDENTIFIER: The data field name created by the decoder.

Figure 21: All Fields Added on Datacake

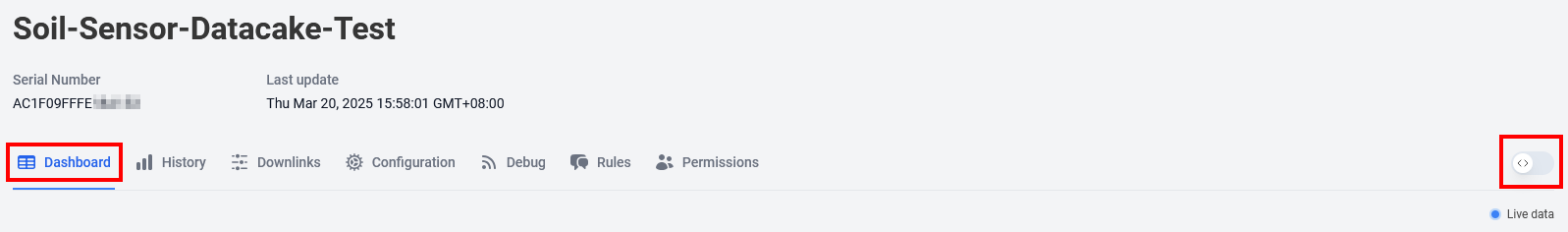

18. Next, go to the Dashboard. It will be empty by default. Toggle the edit button on the right side to start the customization.

Figure 22: Datacake Device Dashboard

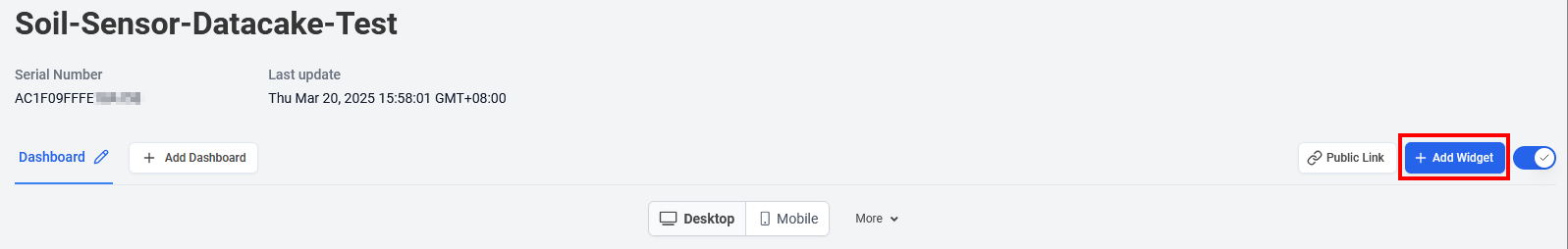

19. Then click on the button Add Widget to add a new data widget.

Figure 23: Datacake Device Dashboard Add Widget

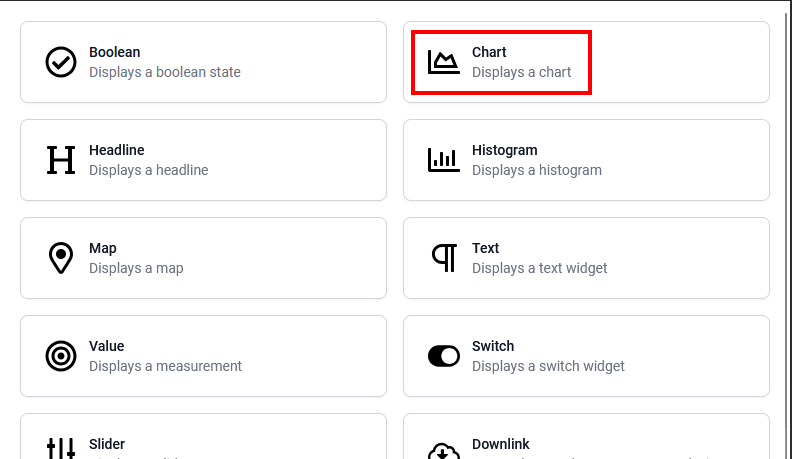

20. Select a widget type from the pop-up window. Use the Chart for this example.

Figure 24: Select Widget Type

21. Now the widget needs to be configured.

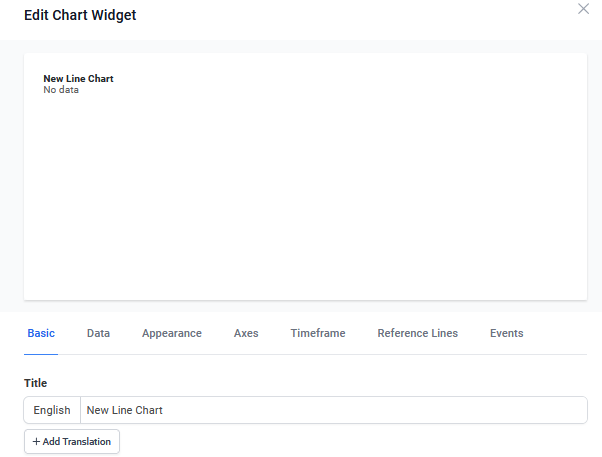

Figure 25: Edit the Widget Selected

22. You can edit on the following tabs:

• In the Basic tab, the widget name is defined.
• In the Data tab, the data field is selected.
• The Field selector shows all data fields generated by the payload decoder. Choose Air Temperature.

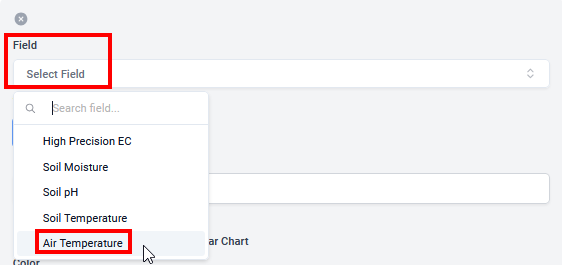

Figure 26: On the Dashboard, select the field created

23. For a basic dashboard, no other information is needed. Click on Add to close the window.

The new widget will be shown in the dashboard now.

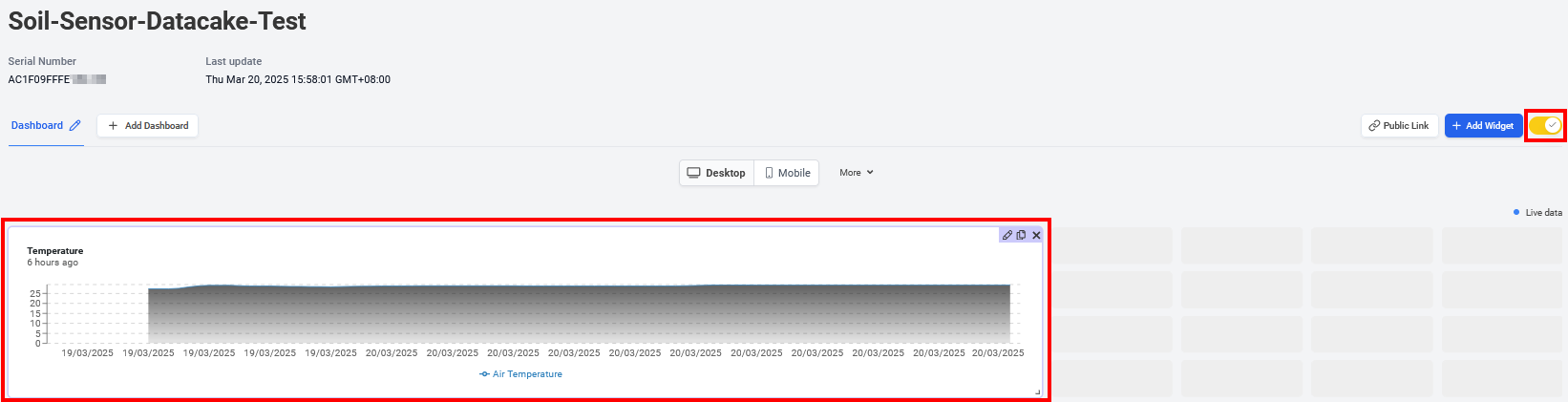

Figure 27: Save On Dashboard the Widget

24. Repeat these steps for each sensor value you want to display on the dashboard.

25. When you’re done, click the yellow button on the right side to save the new dashboard.

Datacake also offers many options to create and customize widgets. For more details, refer to the official Datacake documentation.

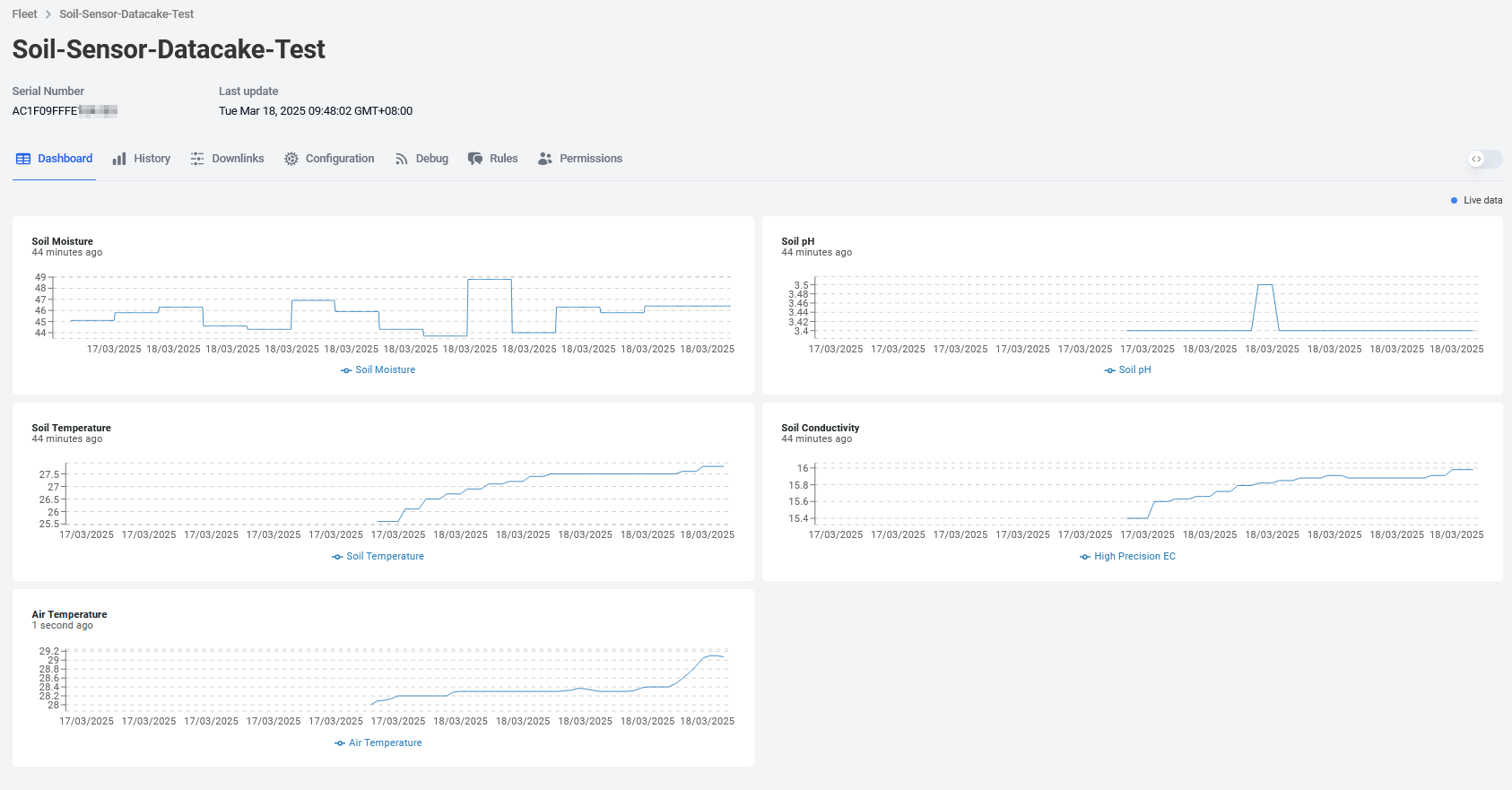

Figure 28: Example dashboard in Datacake for the Soil Sensor

Connect Actility to an MQTT Broker and a Visualization Stack

For this connection, an active MQTT Broker is required. A Mosquitto MQTT Broker is installed on a VPS server with basic security settings. Depending on the setup of the used MQTT broker, additional configuration might be needed. Refer to the  ThingPark documentation for detailed instructions.

For sensor data visualization, an InfluxDB database and Grafana are used. Both are installed on the same VPS server.

Set Up the MQTT Connection in Actility

1. In the Actility console, open the Connections section and click ADD CONNECTION.

2. Select ThingPark X IoT Flow, then choose MQTT. In the next window, click on MQTT.

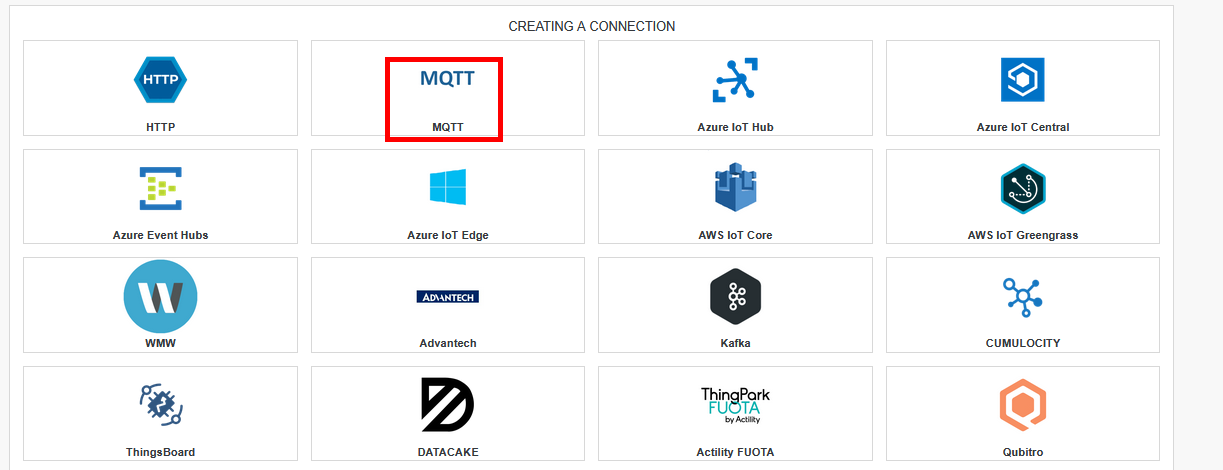

Figure 29: Actilty Create a MQTT Connection

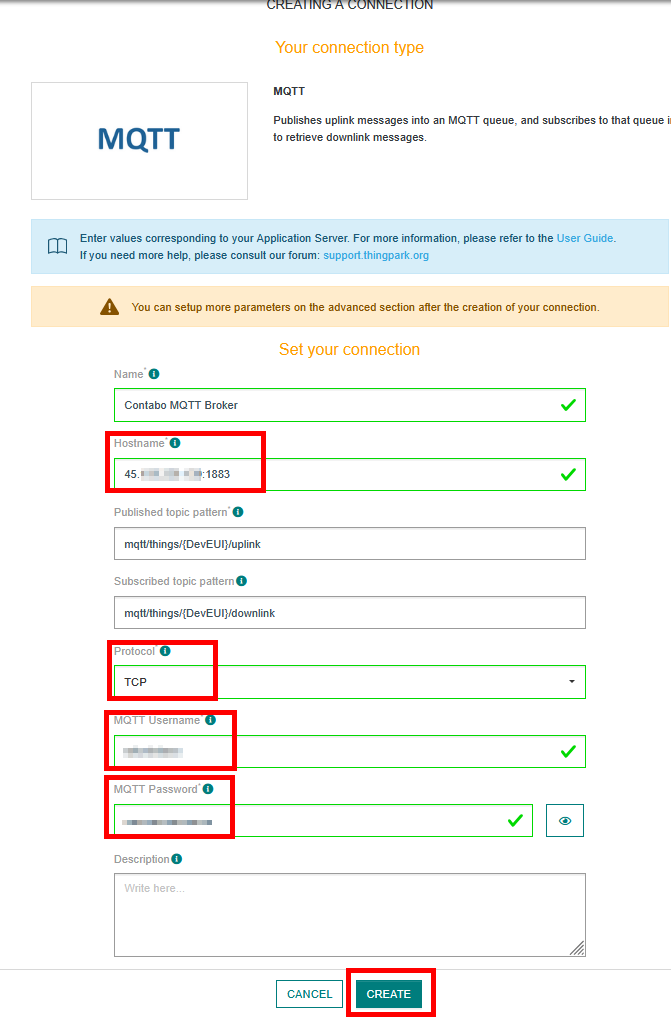

3. In the next window, configure the connection to your MQTT broker. Enter the following details, then click CREATE to save the connection.

• Name: Any descriptive name.
• Hostname: Enter a name, any name is possible.
• Port: Enter the host URL or IP address together with the port. Depending on the setup of the MQTT broker, the port number can be different.
• Publish topic pattern: Leave unchanged.
• Subscribe topic pattern: Leave unchanged.
• Protocol: Select the connection protocol (here TCP).
• Authentication: Enter MQTT Username and MQTT Password (depending on the connection protocol, it might be required to enter different connection certificates here).

Figure 30: Actility MQTT Parameters

4. After creating the MQTT connection, go to the devices overview page in the Actility console.

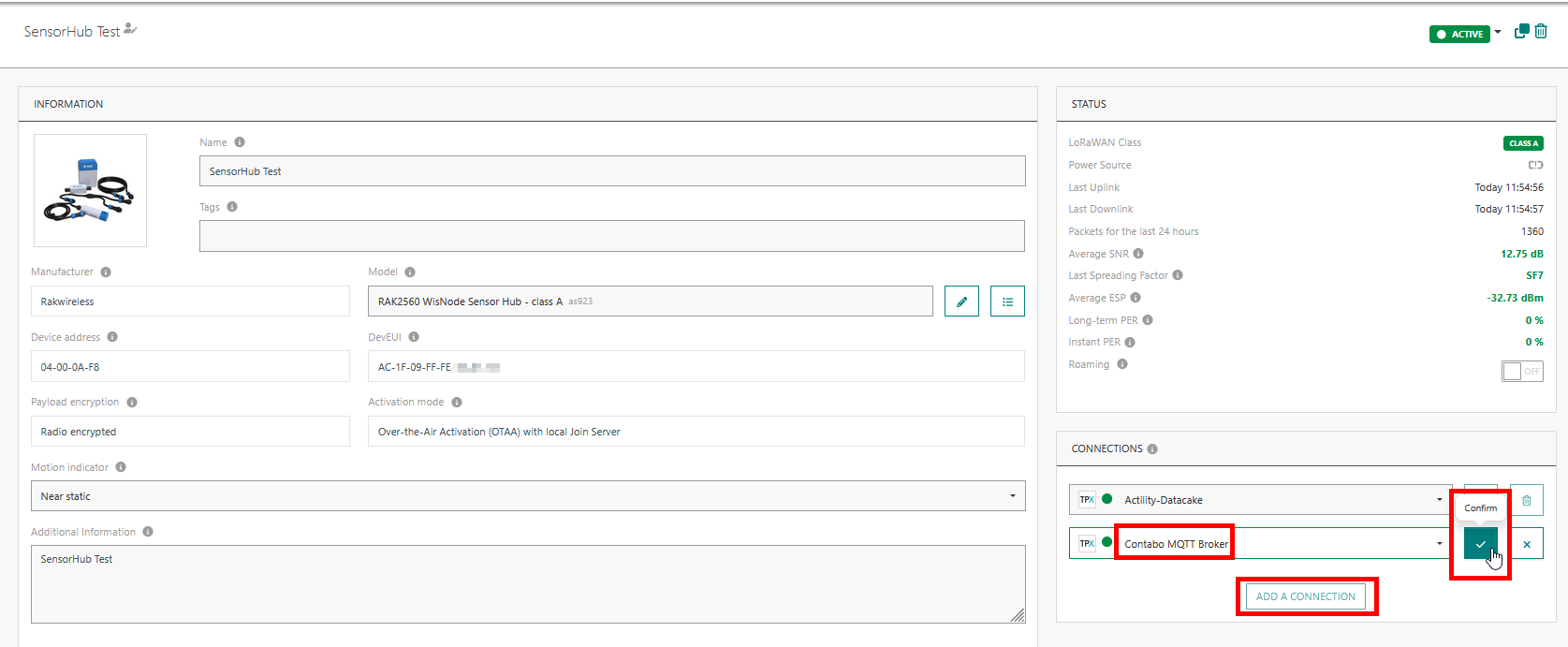

5. Click on ADD A CONNECTION, select the MQTT Broker connection, and confirm.

Figure 31: Actility MQTT Broker Connection

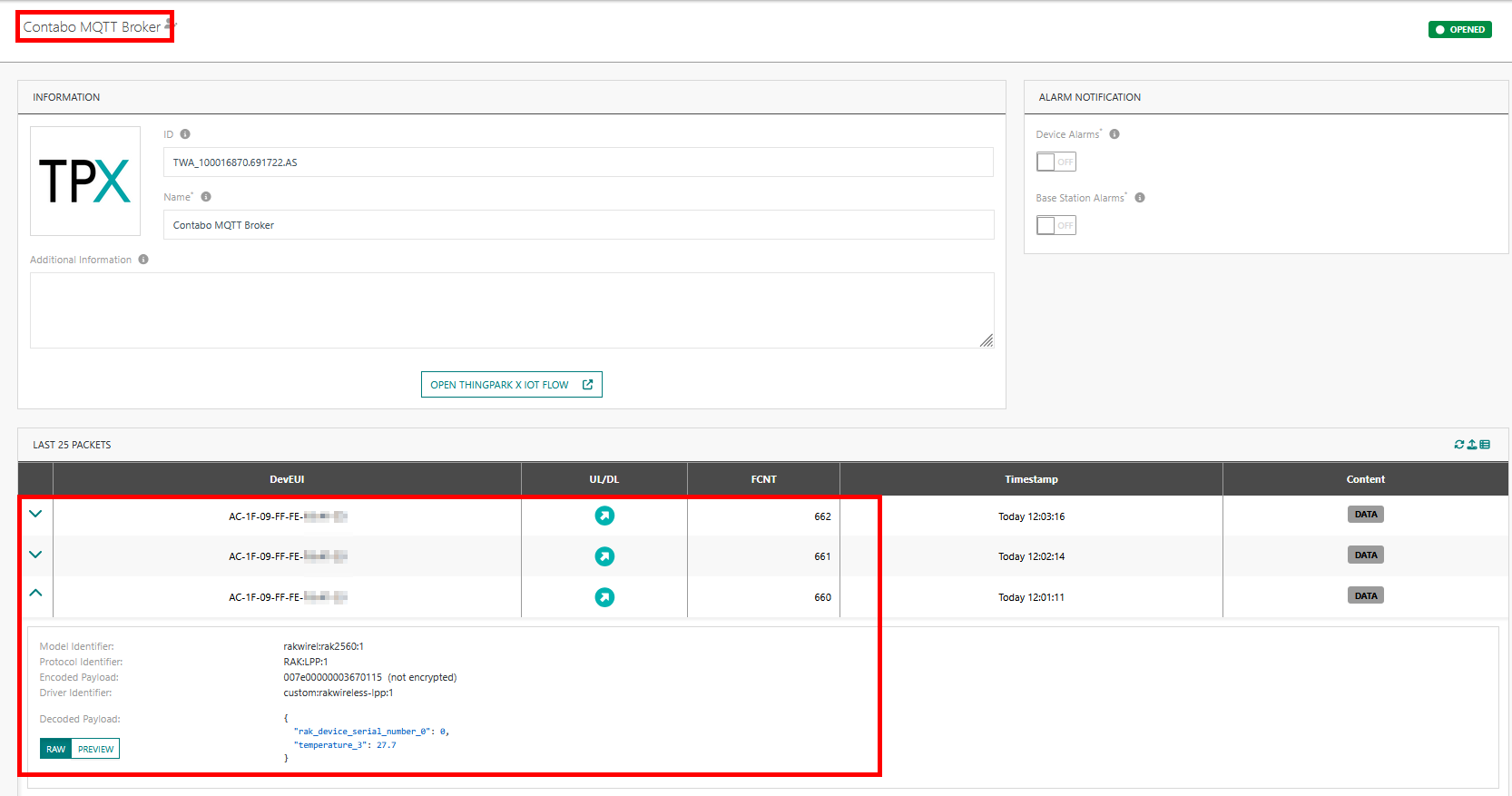

6. Go to the Contabo MQTT Broker in the Connections tab of the Actility Console, the data can be seen now.

Figure 32: Contabo MQTT Broker

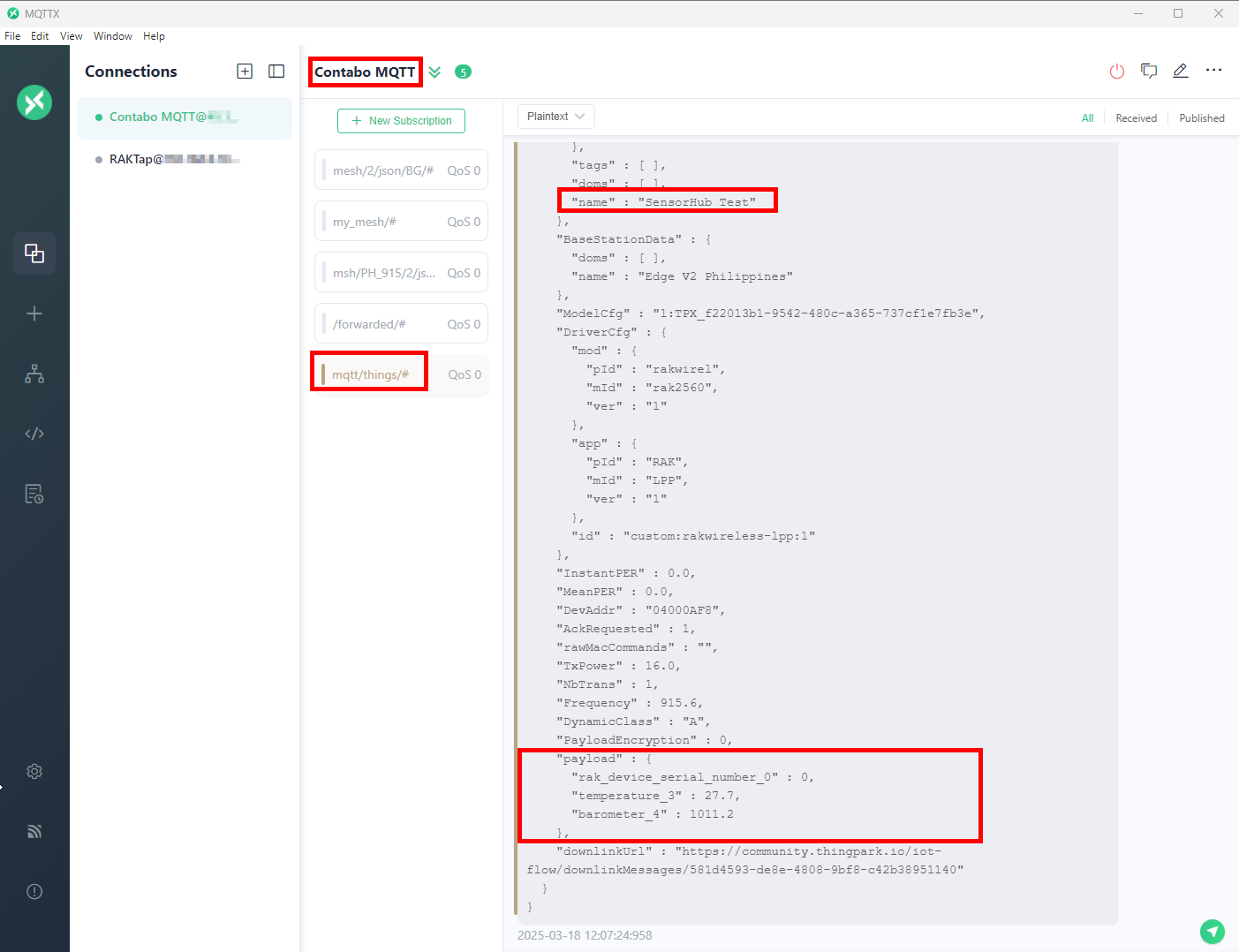

7. Use an MQTT client (e.g.,  MQTTX) to view the published packets on the MQTT broker. As mentioned earlier, in a payload decoder, the payload is transmitted in its decoded format.

Figure 33: Actility MQTT Payload Decoder

Visualize Sensor Data Using Node-RED, InfluxDB, and Grafana

For the visualization, three additional applications are used:

• NodeRED: Subscribes to the MQTT Broker and receives sensor data
• InfluxDB: Stores the received data
• Grafana: Visualizes the data using dashboards

These tools were chosen because they are already available on the same VPS hosting the MQTT Broker, but other compatible applications may also be used as alternatives.

All components are installed using Docker containers. For installation instructions, refer to each application’s official documentation.

a. NodeRED flow

The NodeRED flow only requires three nodes to receive the packets from the MQTT broker and forward them to the InfluxDB database.

Figure 34: NodeRED Flow for InfluxDB Database

1. Get Packets (forwarded from Actility) is the connection to the MQTT broker with a subscription to the packets sent from the Actility LoRaWAN server. It subscribes to the topics in mqtt/things/#.

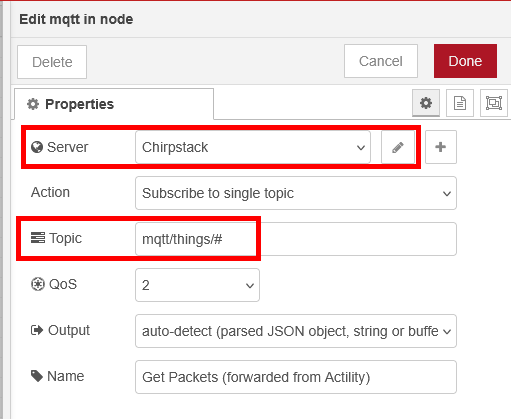

2. The Server settings are set up for the local MQTT Broker on the VPS.

Figure 35: NodeRED Chirpstack Settings

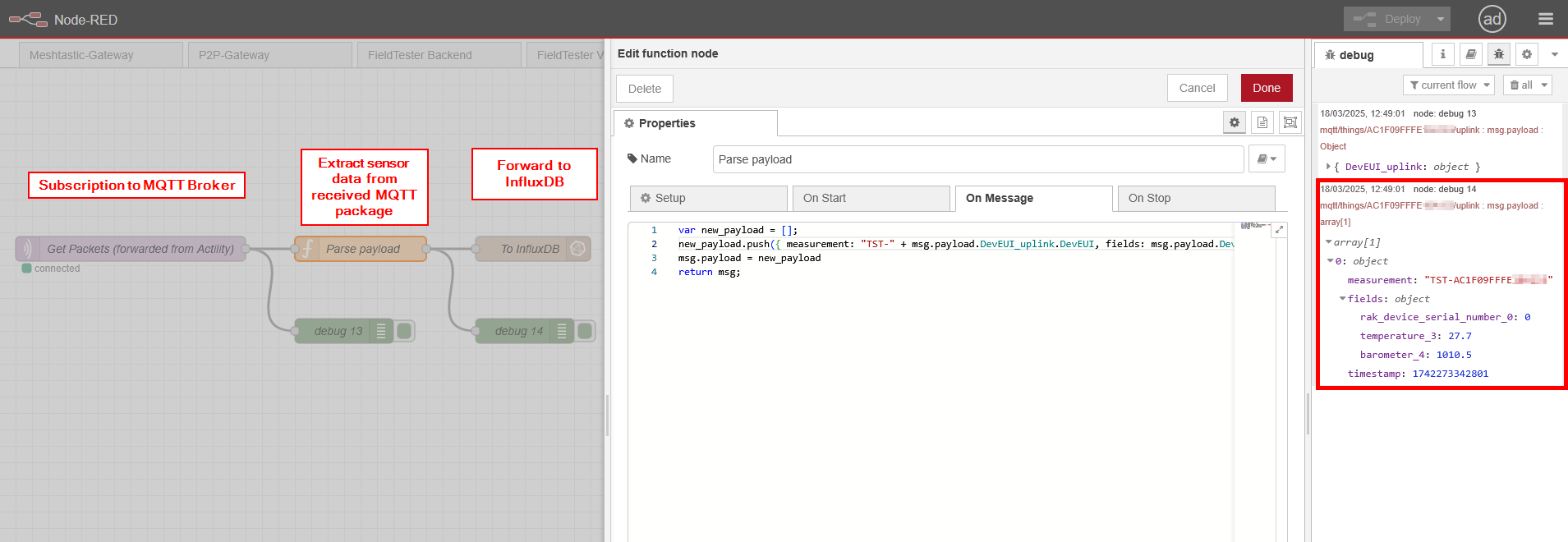

3. The parse payload extracts the sensor data from the MQTT packet and prepares it to be sent to the InfluxDB database.

The Javascript of the "Parse payload" node is only 4 lines:

var new_payload = [];
new_payload.push({ measurement: "TST-" + msg.payload.DevEUI_uplink.DevEUI, fields: msg.payload.DevEUI_uplink.payload, timestamp: new Date().getTime() - 1 });
msg.payload = new_payload
return msg;

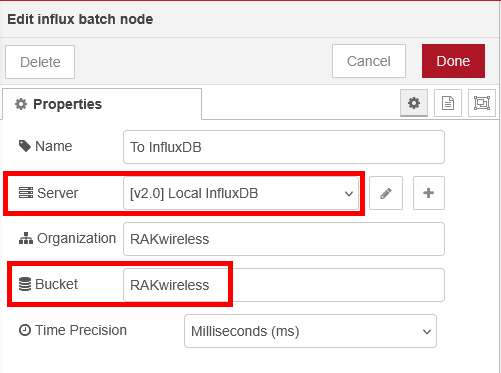

4. Configure the Edit Influx batch node properties:

• Name: To InfluxDB, serves as the connection to the database in the RAKwireless bucket.
• Server: For the local InfluxDB installation on the VPS.
• Bucket: RAKwireless, the target bucket for storing sensor data.

b. Data in InfluxDB

In InfluxDB, the sensor data is stored in the RAKwireless bucket under the RAKwireless organization.

To explore the data:

1. Open the InfluxDB web UI and navigate to Data Explorer.

2. Select the correct bucket (RAKwireless), then apply filters to narrow down the data.

3. Filter using TST- prefix, which was set in the Node-RED Parse payload function. This will help isolate the relevant device data.

After filtering for "Tst" and selecting the device, we can already see the available data in the next filter.

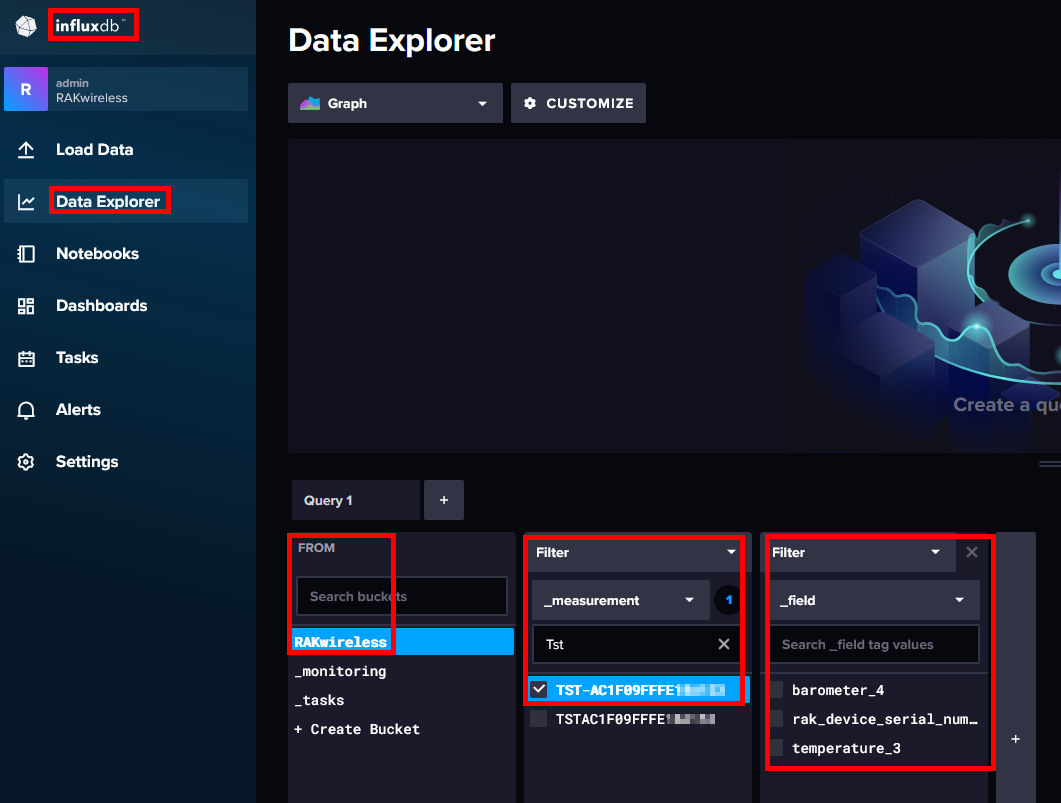

Figure 37: InfluxDB Data Explorer Tab

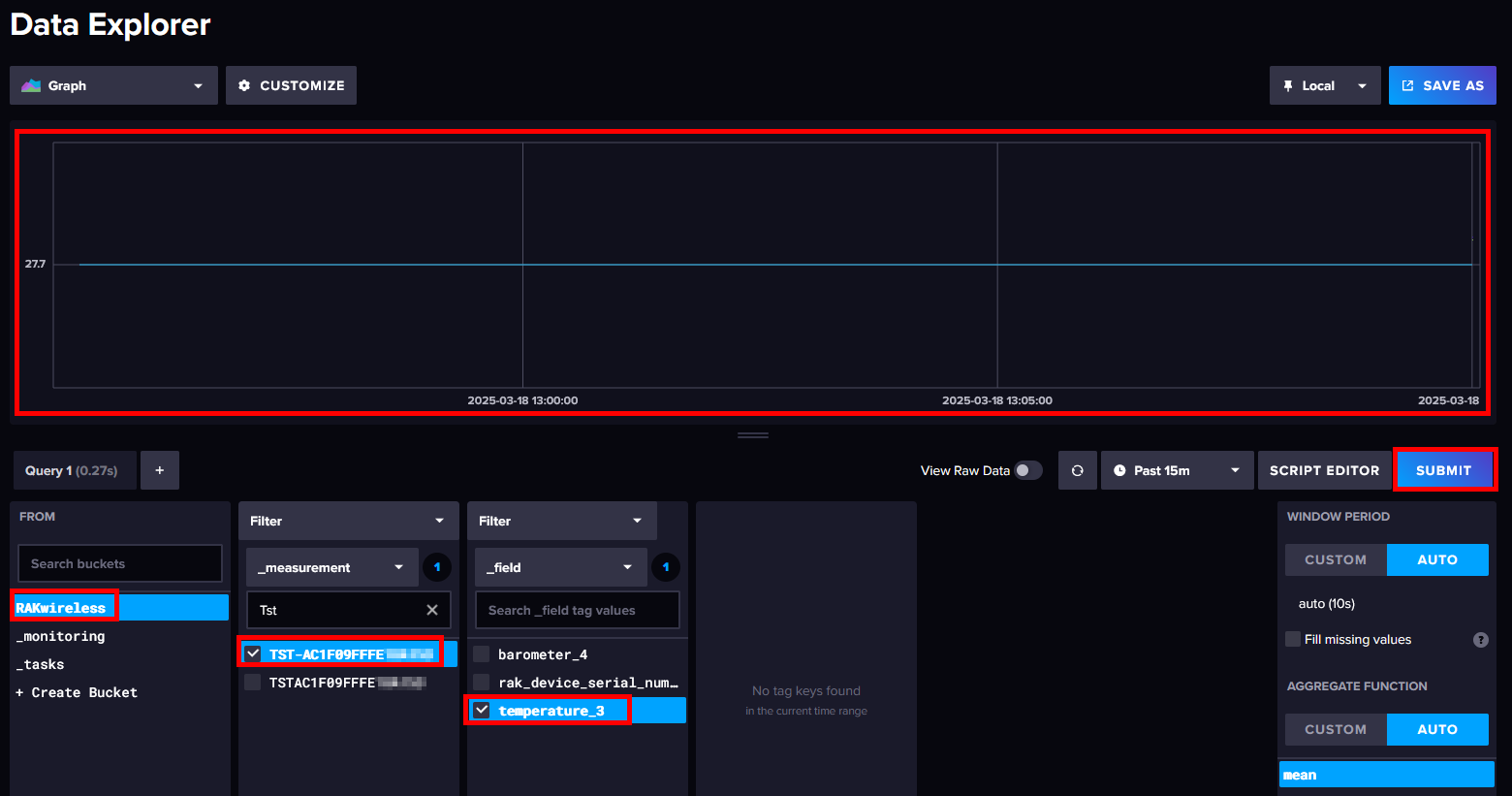

4. After selecting a device and data field, click SUBMIT to view the results in the graph. Since the connection is newly established, the available data will be limited.

Figure 38: InfluxDB Data Explorer Configuration

5. Push QUERY BUILDER to get the Flux commands. A nice feature of InfluxDB is the option to convert this query into Flux commands that will be directly used later in Grafana for the visualization.

Figure 39: InfluxDB Data Explorer Query Builder

6. Copy these Flux commands for later use in Grafana.

c. Visualization of the Data in Grafana

After the installation of Grafana and the basic setup, the connection to InfluxDB is required.

1. In Grafana, go to the  Connections section, and click Add new connection.

2. Search for and select InfluxDB

Figure 40: Grafana Add New Connection

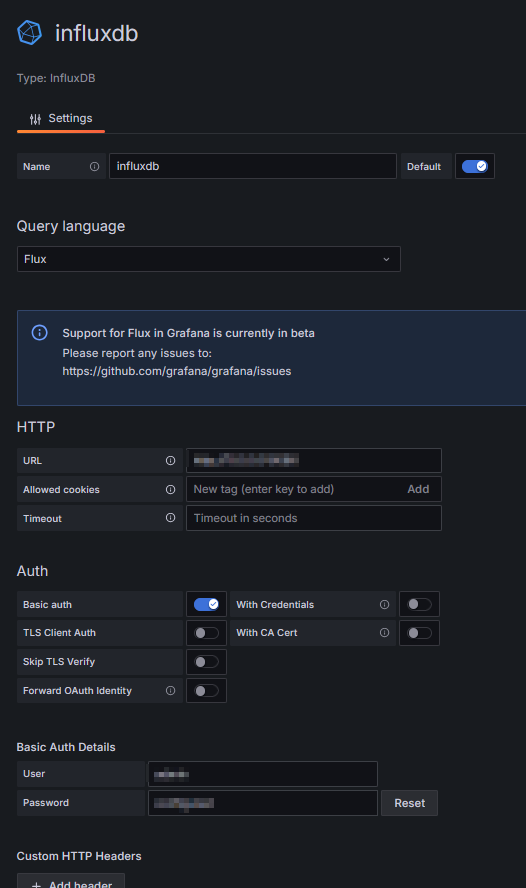

3. Follow the standard setup for the connection to InfluxDB.

Figure 41: Grafana InfluxDB Settings

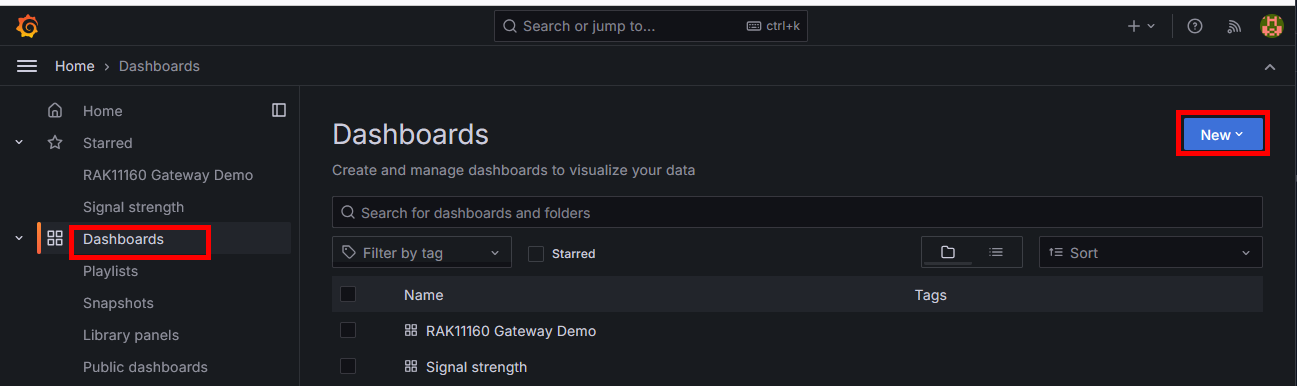

4. Once the database connection is working, a new Dashboard will be added to visualize the sensor data Dashboard section. Follow the Build your first dashboard documentation of Grafana to setup a dashboard.

Figure 42: Grafana Dashboard

d. Example: Add a Sensor Data Graph

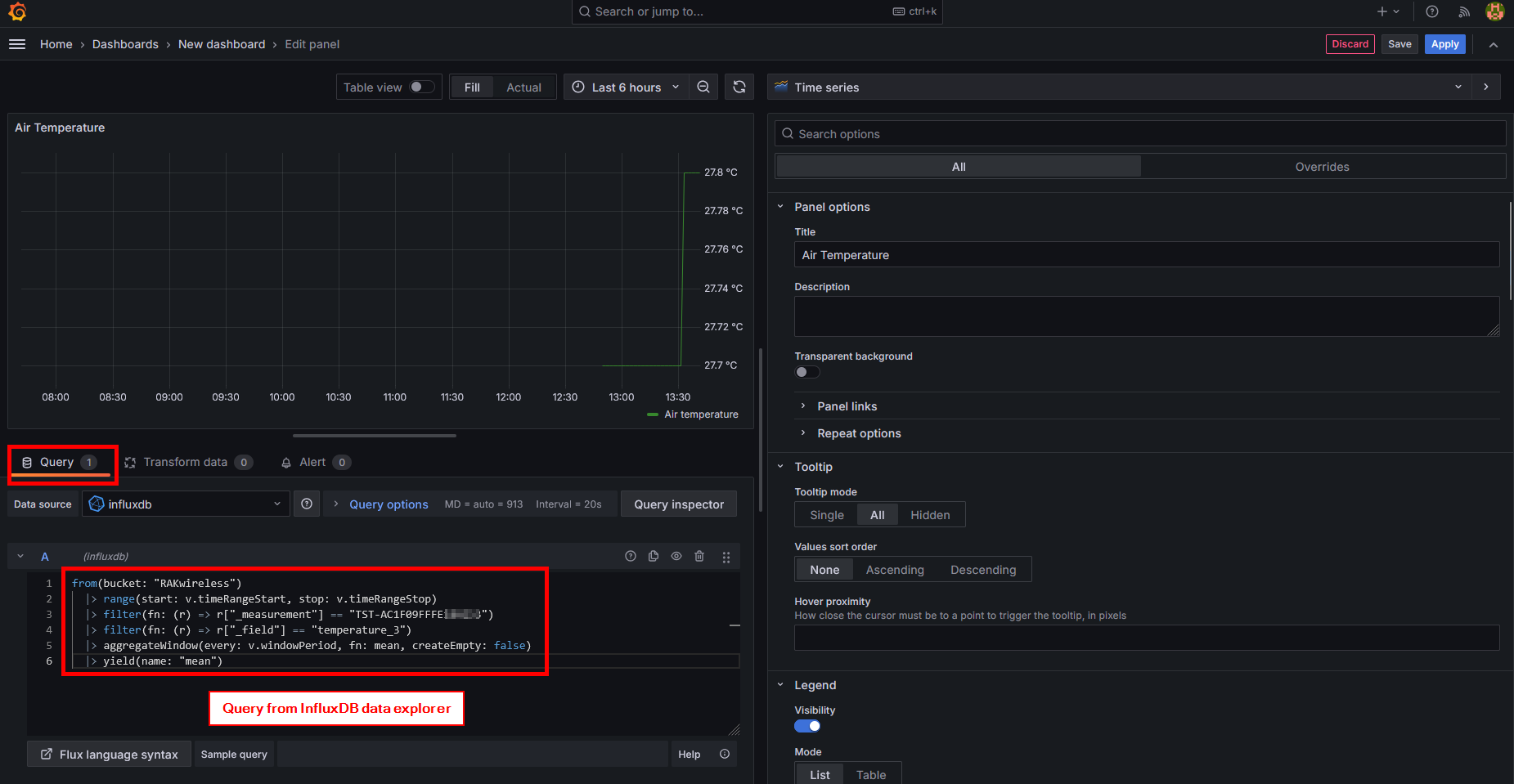

1. In the new dashboard, add a visualization.

2. Copy the Flux commands from InfluxDB into the Query.

3. Configure the remaining fields as needed.

Figure 43: Grafana Flux Commands Into the Query

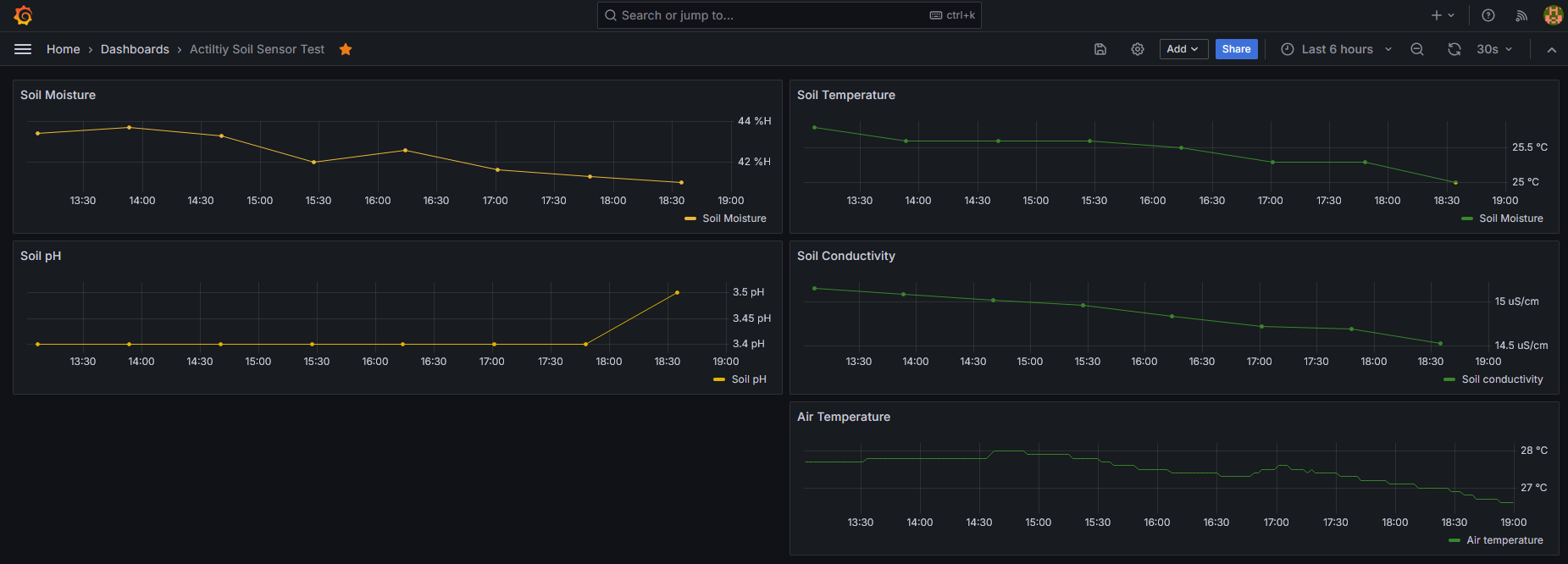

The finished dashboard for the soil sensor may look like this:

Figure 44: Grafana Finished Dashboard

Summary

This guide demonstrated how to:

• Use Actility's Connections feature to forward sensor data
• Set up a sensor data visualization using Datacake
• Build a custom visualization pipeline with MQTT Broker, NodeRED, InfluxDB and Grafana

It wraps up the Actility guide series, providing a complete workflow from LoRaWAN gateway setup to real-time sensor data visualization, ready for practical deployment and further extension.
