Overview
WisGate Edge is the RAK flagship line of commercial-grade gateways. Gateways from this product line are designed to work either indoor or outdoor, customizable in terms of the backhaul connectivity options, antenna type, and power provisioning. This product group contains three products: WisGate Edge Prime (RAK7240), WisGate Edge Max (RAK7249), and WisGate Edge Lite (RAK7258). Both the Prime and Max versions are outdoor gateways with solid aluminum enclosures. The Lite version is indoor and has a plastic enclosure. They are all supporting 8 LoRa channels, but the Prime and Max versions have optional support for 16 LoRa channels.
đź“ť NOTE: A minimum firmware version of 1.2.0065_Release_r209 is required for all WisGate Edge Gateways to meet the minimum required version of the Semtech Basics Station (2.0.5) for AWS IoT Core for LoRaWAN. |
Definition of Terms
Term | Definition |
ARN | Amazon Resource Number |
EUI | Extended Unique Identifier |
IoT | Internet of Things |
OTAA | Over the Air Activation |
ABP | Authentication by Personalization |
DNS | Domain Name Server |
DHCP | Dynamic Host Configuration Protocol |
AWS | Amazon Web Services |
LAN | Local Area Network |
WAN | Wide Area Network |
IAM | Identity and Access Management |
Hardware
The following table shows the Standard Kit Contents of the WisGate products.
Standard Kit Contents
WisGate Edge Prime (8ch, No Cellular) |
WisGate Edge Max (8ch, No Cellular) |
WisGate Edge Lite (No Cellular) |
1x RAK7249 WisGate Edge Prime Gateway 1x Regional Specific LoRa Antenna 1x GPS Antenna 1x 2.4 GHz Wi-Fi Antenna 1x PoE Injector 1x Mounting Kit 1x Manual |
1x RAK7249 WisGate Edge Max Gateway 1x Regional Specific LoRa Antenna 1x GPS Antenna 1x 2.4 GHz Wi-Fi Antenna 1x PoE Injector 1x Mounting Kit 1x Manual |
1x RAK7249 WisGate Edge Lite Gateway 1x Regional Specific LoRa Antenna 1x Power Adapter 1x Mounting Kit 1x Manual |
For Additional Configuration Options
Visit Store | Visit Store |
đź“ť NOTE:
|
Set up Your AWS Account and Permissions
Set up Roles and Policies in IAM
Add an IAM Role for CUPS Server
Adding an IAM role will allow the Configuration and Update Server (CUPS) to handle the wireless gateway credentials.
This procedure needs to be done only once, but must be performed before a LoRaWAN gateway tries to connect with AWS IoT Core for LoRaWAN.
Go to the IAM Roles page on the IAM console.
Choose Create role.
On the Create Role page, choose Another AWS account.
Enter your Account ID, then select Next: Permissions.
In the search box next to the Filter Policies, type AWSIoTWirelessGatewayCertManager.
- If the search results show the policy named AWSIoTWirelessGatewayCertManager, select it by clicking the checkbox.
- If the policy does not exist, create one.
- Go to the IAM console.
- Choose Policies from the navigation pane.
- Choose Create Policy, then select the JSON tab to open the policy editor.
- Replace the existing template with trust policy document.
{
"Version": "2012-10-17",
"Statement": [
{
"Sid": "IoTWirelessGatewayCertManager",
"Effect": "Allow",
"Action": [
"iot:CreateKeysAndCertificate",
"iot:DescribeCertificate",
"iot:ListCertificates",
"iot:RegisterCertificate"
],
"Resource": "*"
}
]
}
-
- Choose Review Policy to open the Review Page.
- For the Name, type AWSIoTWirelessGatewayCertManager.
đź“ť NOTE: You must enter the name as AWSIoTWirelessGatewayCertManager and must not use a different name. This is for consistency with future releases. |
-
- For the Description, enter a description of your choice.
- Then choose Create policy. You will see a confirmation message showing the policy has been created.
Choose Next: Tags, then Next: Review.
In Role name, enter IoTWirelessGatewayCertManagerRole, and then choose to Create role.
đź“ť NOTE: You must not use a different name. This is for consistency with future releases. |
In the confirmation message, choose IoTWirelessGatewayCertManagerRole to edit the new role.
In the Summary, choose the Trust relationships tab, and then choose Edit trust relationship.
In the Policy Document, change the Principal property to represent the IoT Wireless service:
"Principal": {
"Service": "iotwireless.amazonaws.com"
},
After changing the Principal property, the complete policy document should look like the following:
{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Principal": {
"Service": "iotwireless.amazonaws.com"
},
"Action": "sts:AssumeRole",
"Condition": {}
}
]
}
Choose Update Trust Policy to save your changes and exit. At this point, you have created the IoTWirelessGatewayCertManagerRole and you won't need to do this again.
đź“ť NOTE: The examples in this document are intended only for dev environments. All devices in your fleet must have credentials with privileges that authorize only intended actions on specific resources. The specific permission policies can vary for your use case. Identify the permission policies that best meet your business and security requirements. For more information, refer to Example Policies and Security Best Practices. |
Add IAM Role for Destination to AWS IoT Core for LoRaWAN
Creating a Policy
Creating a policy gives the role permissions to describe the IoT endpoint and publish messages to AWS IoT.
Go to the IAM console.
Choose Policies from the navigation pane.
Choose Create Policy, then choose the JSON tab to open the policy editor. Replace the existing template with this trust policy document:
{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Action":
[
"iot:DescribeEndpoint",
"iot:Publish"
],
"Resource": "*"
}
]
}
Choose Review Policy to open the Review page.
For Name, enter a name of your choice.
For Description, enter a description of your choice.
Choose Create policy. You will see a confirmation message indicating that the policy has been created.
Creating the Role
In the IAM console, choose Roles from the navigation pane to open the Roles page
Choose Create Role.
In Select type of trusted entity, choose Another AWS account.
In Account ID, enter your AWS account ID, and then choose Next: Permissions.
Search for the IAM policy you just created by entering the policy name in the search bar.
In the search results, select the checkbox corresponding to the policy.
Choose Next: Tags.
Choose Next: Review to open the Review page.
For Role name, enter an appropriate name of your choice.
For Description, enter a description of your choice.
Choose Create role. You will see a confirmation message indicating that your role has been created.
Updating your Trust Policy
Update your role's trust relationship to grant AWS IoT Core for LoRaWAN permission to assume this IAM role when delivering messages from devices to your account.
In the IAM console, choose Roles from the navigation pane to open the Roles page.
Enter the name of the role you created earlier in the search window, and click on the role name in the search results. This opens up the Summary page.
Choose the Trust relationships table to navigate to the Trust relationships page.
Choose Edit trust relationship. The principal AWS role in your trust policy document defaults to root and must be changed. Replace the existing policy with this:
{
"Version": "2012-10-17",
"Statement": [
{
"Sid": "",
"Effect": "Allow",
"Principal": {
"Service": "iotwireless.amazonaws.com"
},
"Action": "sts:AssumeRole",
"Condition": {}
}
]
}
Choose Update Trust Policy. Under Trusted entities, you will see: The identity provider(s) iotwireless.amazonaws.com.
Add the Gateway to AWS IoT
Requirements
To complete setting up your gateway, you need the following:
- LoRaWAN region. For example, if the gateway is deployed in a US region, the gateway must support LoRaWAN region US915.
- Gateway LNS-protocols. Currently, the LoRa Basics Station protocol is supported.
- Gateway ID (GatewayEUI) or serial number. This is used to establish the connection between the LNS and the gateway. Consult the documentation for your gateway to locate this value.
- Add minimum software versions required, including Basics Station 2.0.5.
Add the LoRaWAN Gateway
To register the Gateway with AWS IoT Core for LoRaWAN, execute these steps:
Go to the AWS IoT console.
Select Wireless connectivity in the navigation panel on the left.
Choose Intro, and then choose Get started. This step is needed to pre-populate the default profiles.
Under Add LoRaWAN gateways and wireless devices, choose Add gateway.
In the Add gateway section, fill in the GatewayEUI and Frequency band (RF Region) fields.
Enter a descriptive name in the Name – optional field. It is recommended that you use the GatewayEUI as the name.
Choose Add gateway.
On the Configure your Gateway page, find the section titled Gateway certificate.
Select Create certificate.
Once the Certificate created and associated with your gateway message is shown, select Download certificates to download the certificate (xxxxx.cert.pem) and private key (xxxxxx.private.key).
In the section Provisioning credentials, choose Download server trust certificates to download the CUPS (cups.trust) and LNS (lns.trust) server trust certificates.
Copy the CUPS and LNS endpoints and save them for use while configuring the gateway.
Choose Submit to add the gateway.
Add a LoRaWAN Device to AWS IoT
Requirements:
- Locate and note the following specifications about your endpoint device.
- LoRaWAN Region: This must match the gateway LoRaWAN region. The following Frequency bands (RF regions) are supported: o EU868 o US915 o EU433
- MAC Version: This must be one of the following: o V1.0.2 o v1.0.3 o v1.1
- OTAA v1.0x and OTAA v1.1 are supported.
- ABP v1.0x and ABP v1.1 are supported.
- Locate and note the following information from your device manufacturer:
- For OTAA v1.0x devices: DevEUI, AppKey, AppEUI
- For OTAA v1.1 devices: DevEUI, AppKey, NwkKey, JoinEUI
- For ABP v1.0x devices: DevEUI, DevAddr, NwkSkey, AppSkey
- For ABP v1.1 devices: DevEUI, DevAddr, NwkSEnckey, FNwkSIntKey, SNwkSIntKey, AppSKey
Verify Profiles
AWS IoT Core for LoRaWAN supports device profiles and service profiles. Device profiles contain the communication and protocol parameter values the device needs to communicate with the network server. Service profiles describe the communication parameters the device needs to communicate with the application server.
Some pre-defined profiles are available for device and service profiles. Before proceeding, verify that these profile settings match the devices you will be setting up to work with AWS IoT Core for LoRaWAN.
Navigate to the AWS IoT console. In the navigation pane, choose Wireless connectivity.
In the navigation pane, choose Profiles.
In the Device Profiles section, there are some pre-defined profiles listed.
Check each of the profiles to determine if one of them will work for you.
If not, select Add device profile and set up the parameters as needed. For US 915 as an example, the values are:
- MacVersion 1.0.3
- RegParamsRevision RP002-1.0.1
- MaxEirp 10
- MaxDutyCycle 10
- RfRegion US915
- SupportsJoin true
Continue once you have a device profile that will work for you.
In the Service Profiles section, there are some pre-defined profiles listed. Check each of the profiles to determine if one of them will work for you.
If not, select Add service profile and set up the parameters as needed. As an example, the default service profile parameters are shown below. However, only the AddGwMetadata setting can be changed at this time.
- UlRate 60
- UlBucketSize 4096
- DlRate 60
- DlBucketSize 4096
- AddGwMetadata true
- DevStatusReqFreq 24
- DrMax 15
- TargetPer 5
- MinGwDiversity 1
Proceed only if you have a device and service profile that will work for you.
Set up a Destination for Device Traffic
Because most LoRaWAN devices don't send data to AWS IoT Core for LoRaWAN in a format that can be consumed by AWS services, traffic must first be sent to a Destination. A Destination represents the AWS IoT rule that processes a device's data for use by AWS services. This AWS IoT rule contains the SQL statement that selects the device's data and the topic rule actions that send the result of the SQL statement to the services that will use it.
For more information on Destinations, refer to the AWS LoRaWAN Developer Guide.
A destination consists of a Rule and a Role. To set up the destination, execute the following steps:
Navigate to the AWS IoT console. In the navigation pane, choose Wireless connectivity, and then Destinations.
Choose Add Destination.

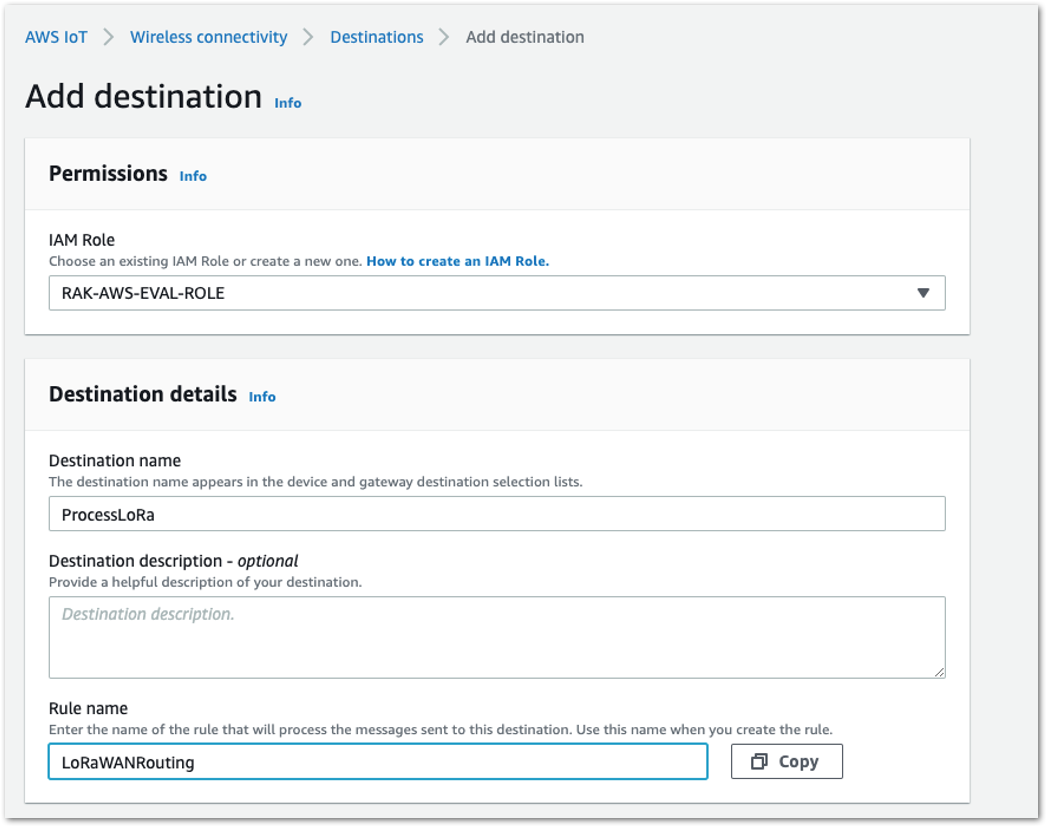

On the Add destination page, in the Permissions section, select the IAM role you had created earlier, from the drop-down.
Under Destination details, enter ProcessLoRa as the Destination name, and an appropriate description under Destination description – optional.
đź“ť NOTE: The Destination name can be anything. For getting started and consistency, choose ProcessLoRa for the first integration with AWS IoT Core for LoRaWAN. |
For Rule name, enter LoRaWANRouting. Ignore the section Rules configuration – Optional for now. The Rule will be set up later in the "Hello World" sample application. See Create the IoT Rule for the destination.
Choose Add Destination. You will see a message "Destination added", indicating the destination has been successfully added.
Register the Device
Now, register an endpoint device with AWS IoT Core for LoRaWAN as follows:
Go to the AWS IoT console.
Select Wireless connectivity in the navigation panel on the left.
Select Devices, then choose Add wireless device.
On the Add device page, select the LoRaWAN specification version in the drop-down under Wireless device specification.
Under LoRaWAN specification and wireless device configuration, enter the DevEUI and confirm it in the Confirm DevEUI field.
Enter the remaining fields as per the OTAA/ABP choice you made above.
Enter a name for your device in the Wireless device name – optional field.

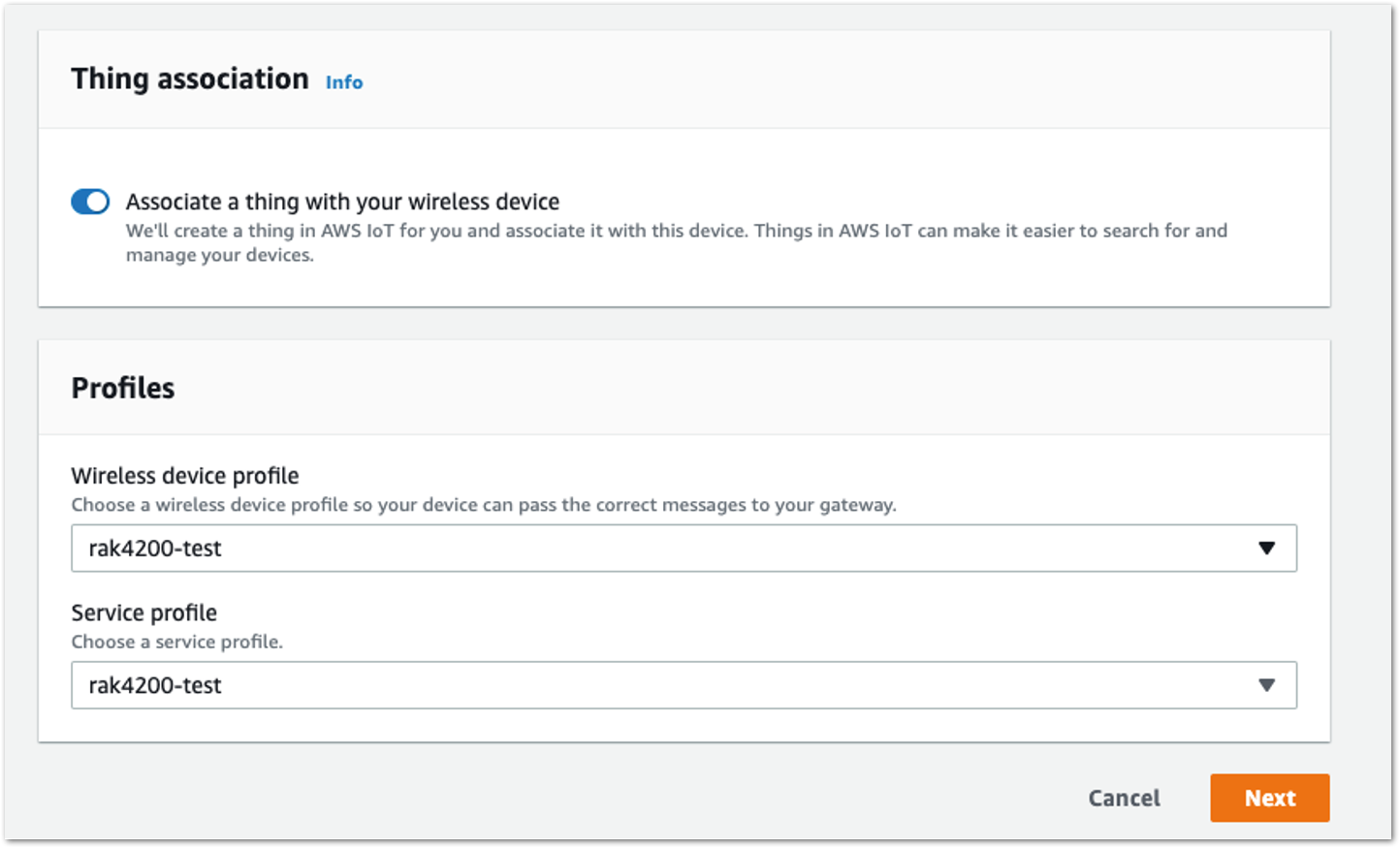

In the Profiles section, under Wireless device profile, find a drop-down option that corresponds to your device and region.
đź“ť NOTE: Compare your device details to ensure the device profile is correct. If there are no valid default options, you will have to create a new profile. See the Verify Profiles section. |
Choose Next.

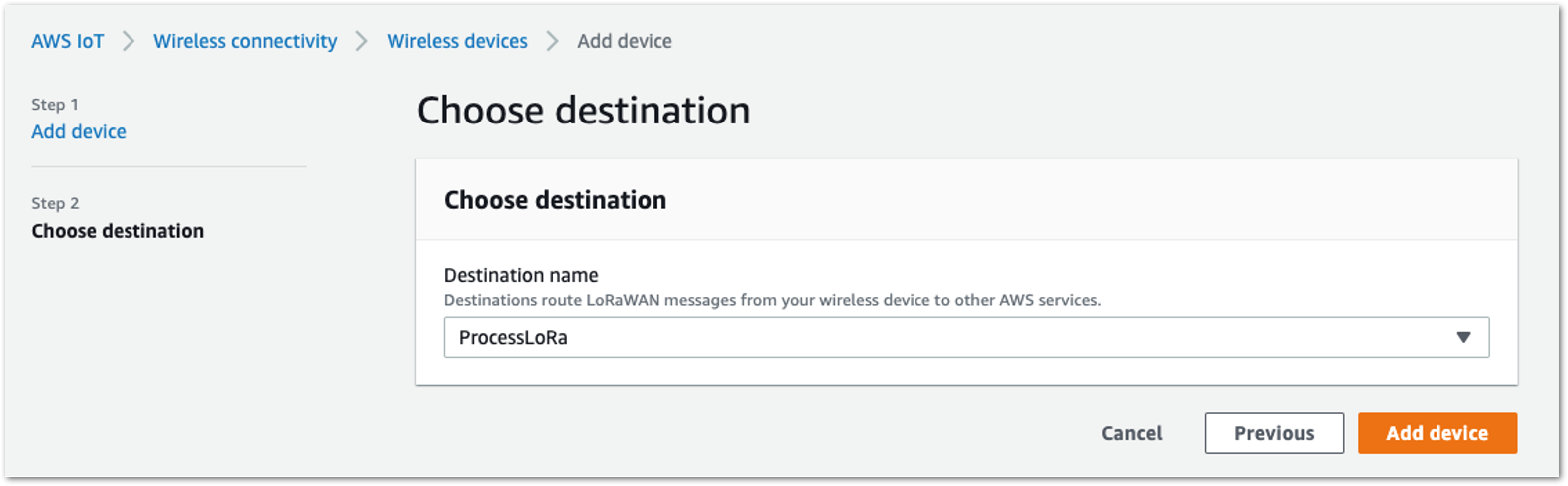

Choose the destination you created earlier (ProcessLoRa) from the drop-down under Choose destination.
Choose Add device.
You will see a message saying "Wireless device added", indicating that your device has been set up successfully.
Set up the Gateway
Set up the Gateway Hardware
Head on to these guides with your corresponding device to learn how to Setup your Gateway:
Set up the Gateway Software
Head on to these guides with your corresponding device to learn how to access and connect your Gateway:
Configure the Gateway Device

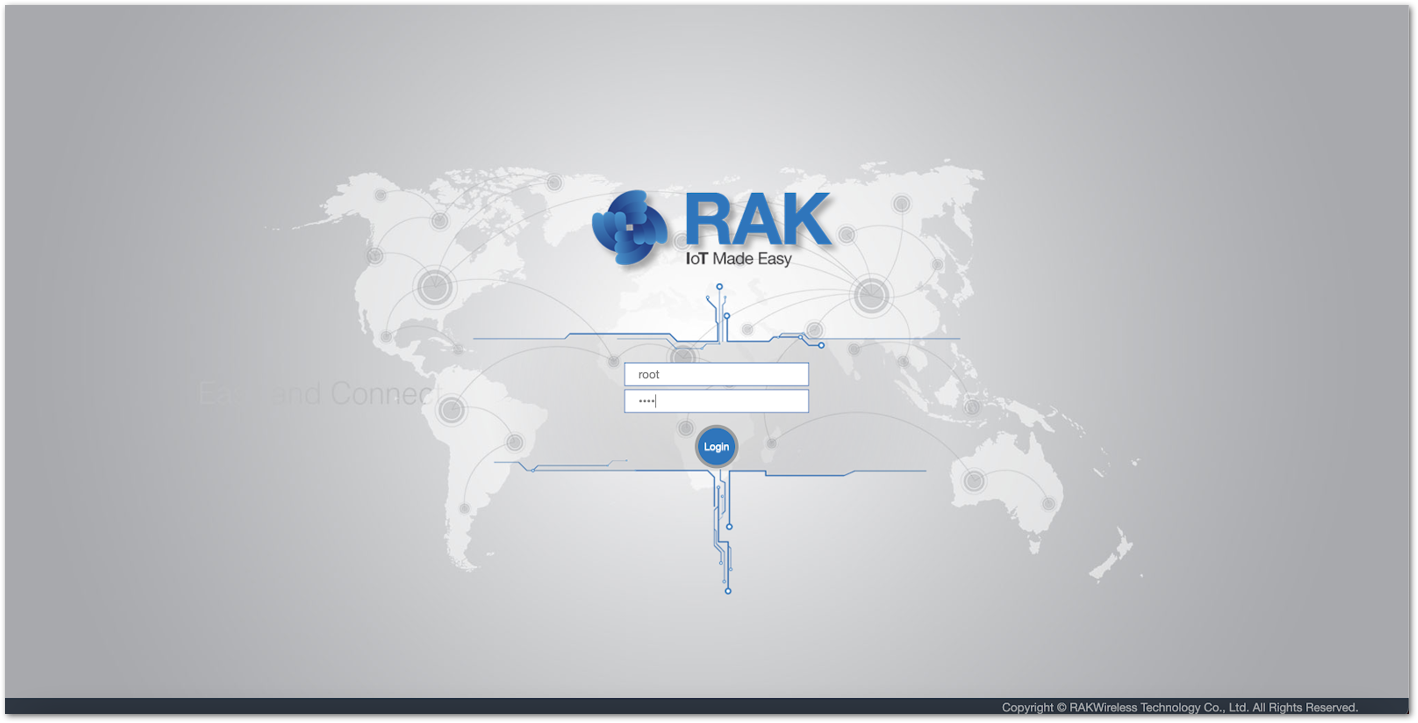

Using your preferred Web browser, input the aforementioned IP Address and you should see the same Log-in Page shown in the following image. Login the credentials provided below:
- Username: root
- Password: root

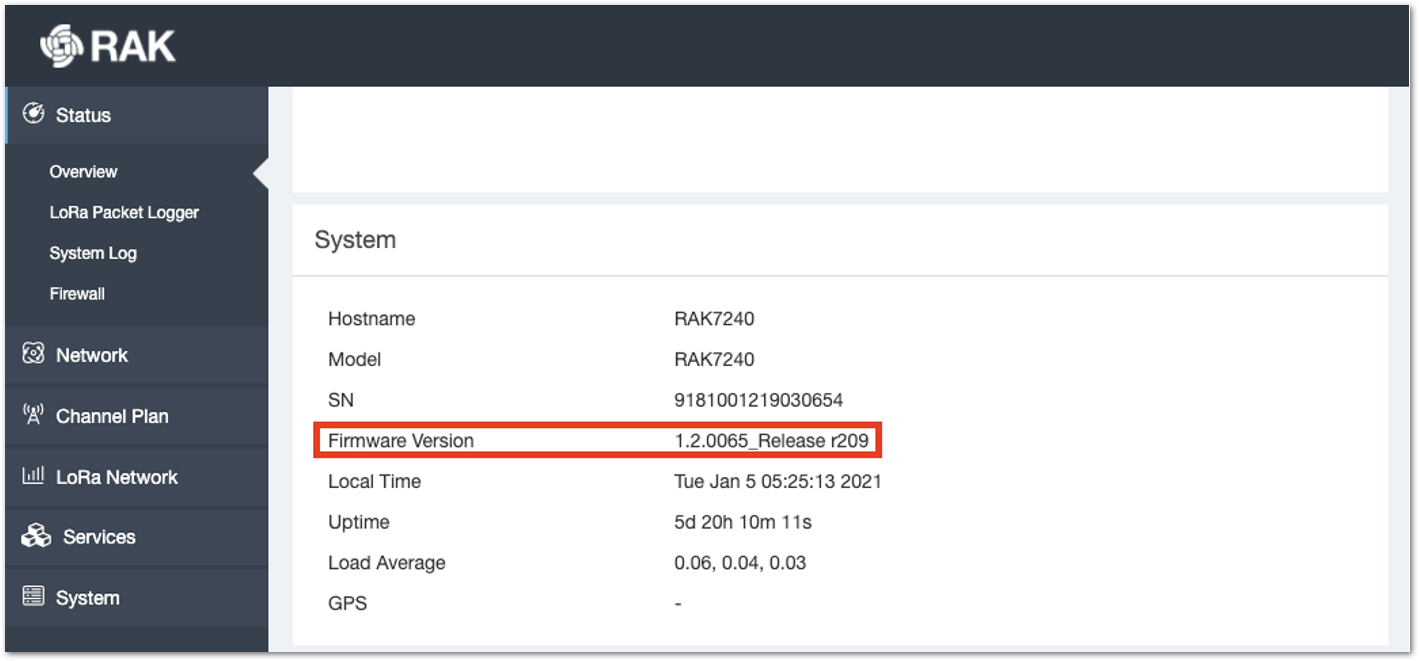

The firmware version 1.2.0065_Release_r209 on the gateway supports AWS IoT Core for LoRaWAN, and it can be verified on Status > Overview > System > Firmware Version.

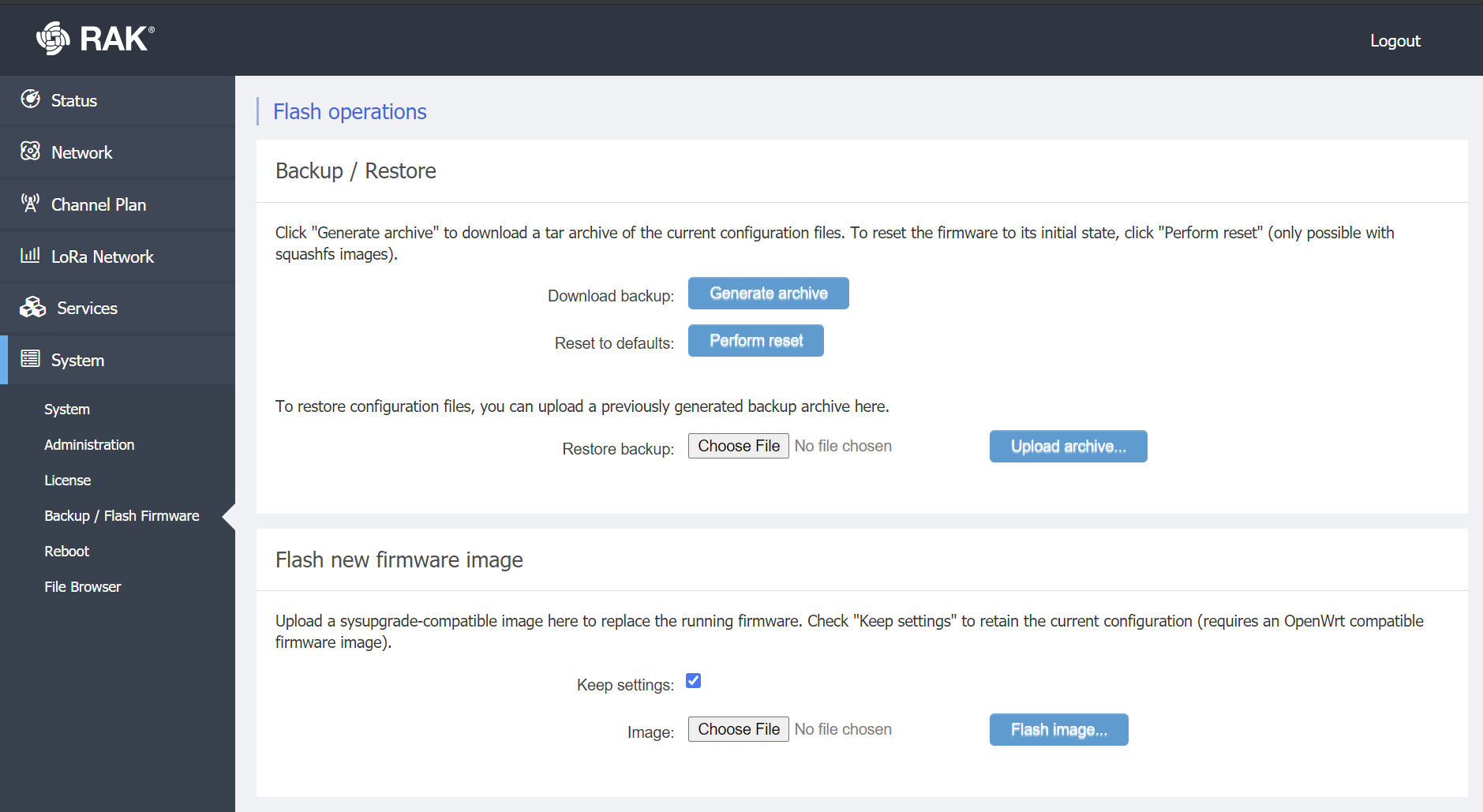

If the firmware version is prior to 1.2.0065_Release_r209, upgrade the firmware. Navigate to System > Backup/Flash Firmware > Flash new firmware image > Upgrade the firmware.

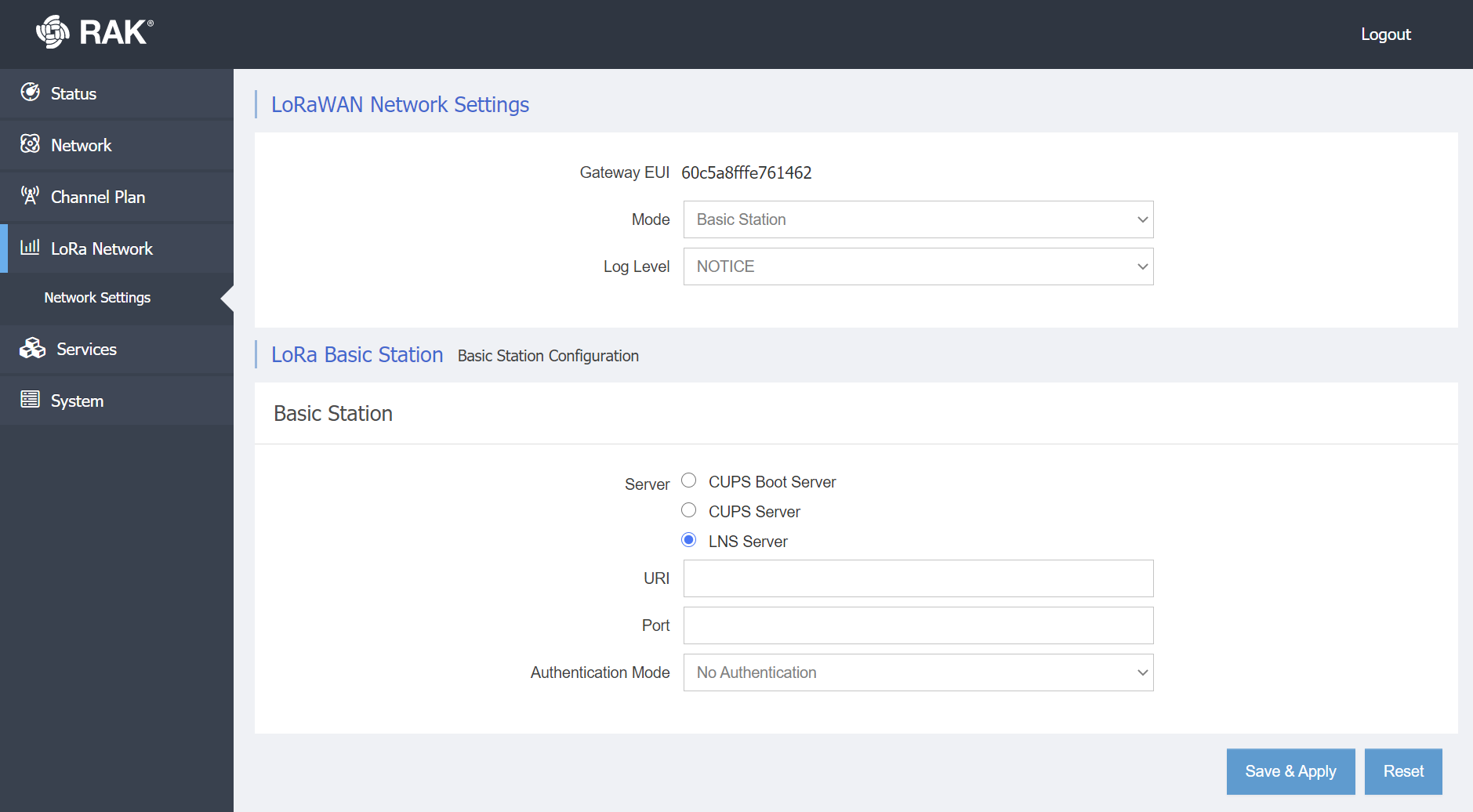

Configure Network Mode to Basic Station. Navigate to LoRa Network then Network Settings.
- Change the Mode in LoRaWAN Network Settings to Basic Station.
- Select LNS Server from Server, then choose TLS Server and Client Authentication from Authentication Mode.

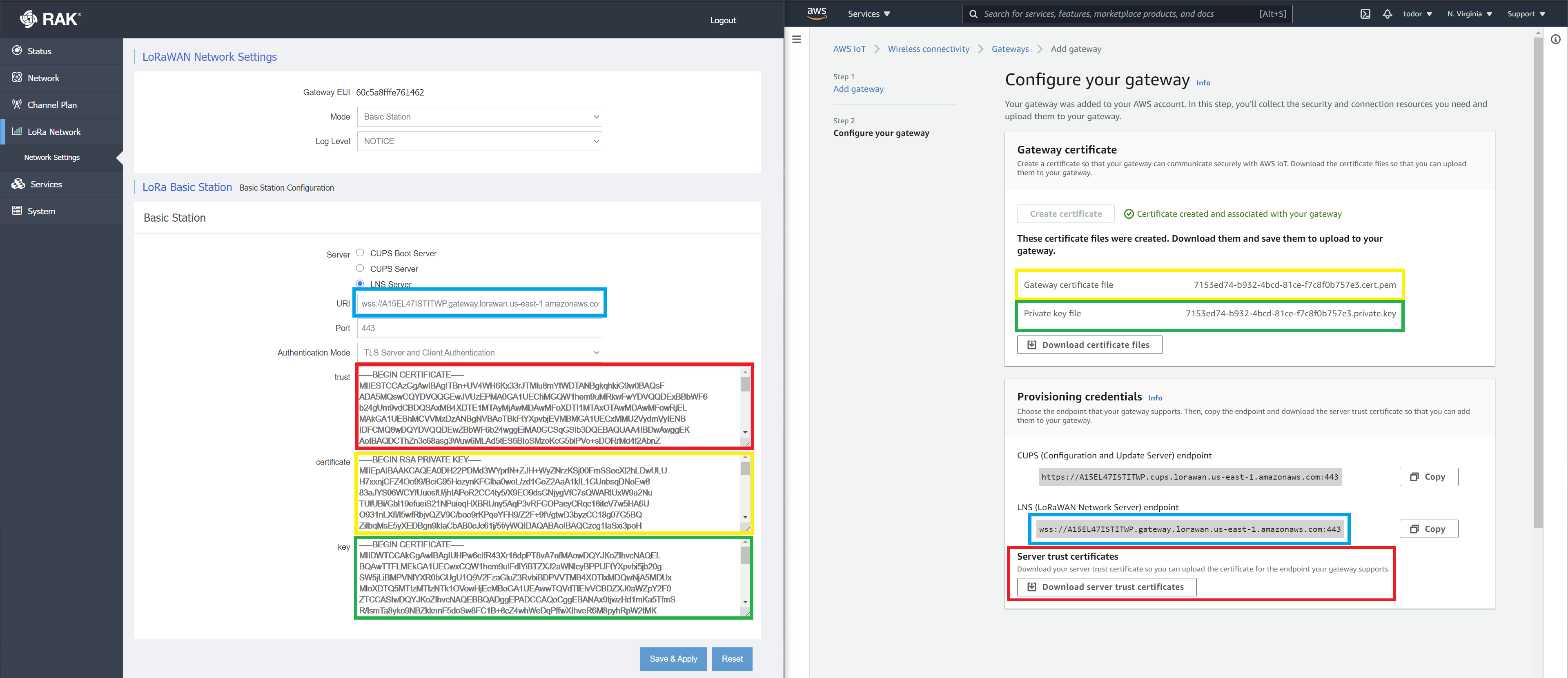

Configure URI, Port, and Authentication Mode.

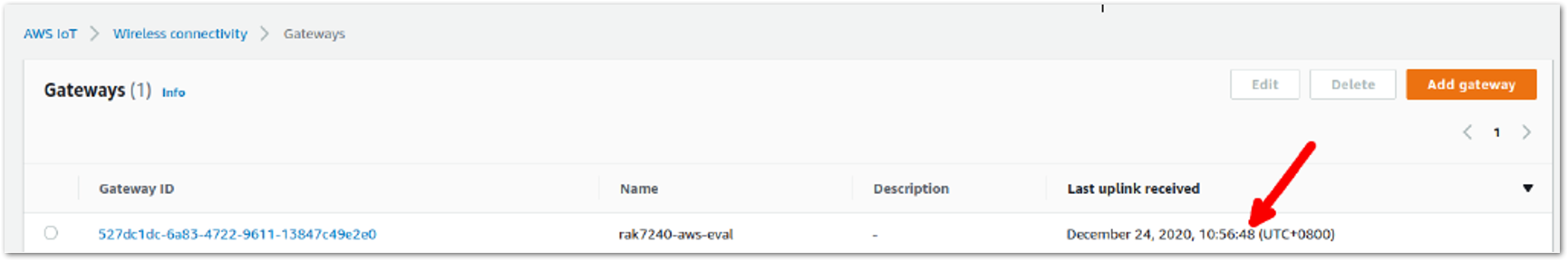

Verifying Operation. Check if the gateway is online in AWS IoT console.
Add End Devices
This section shows an example of how to join the AWS IoT LoRaWAN server.

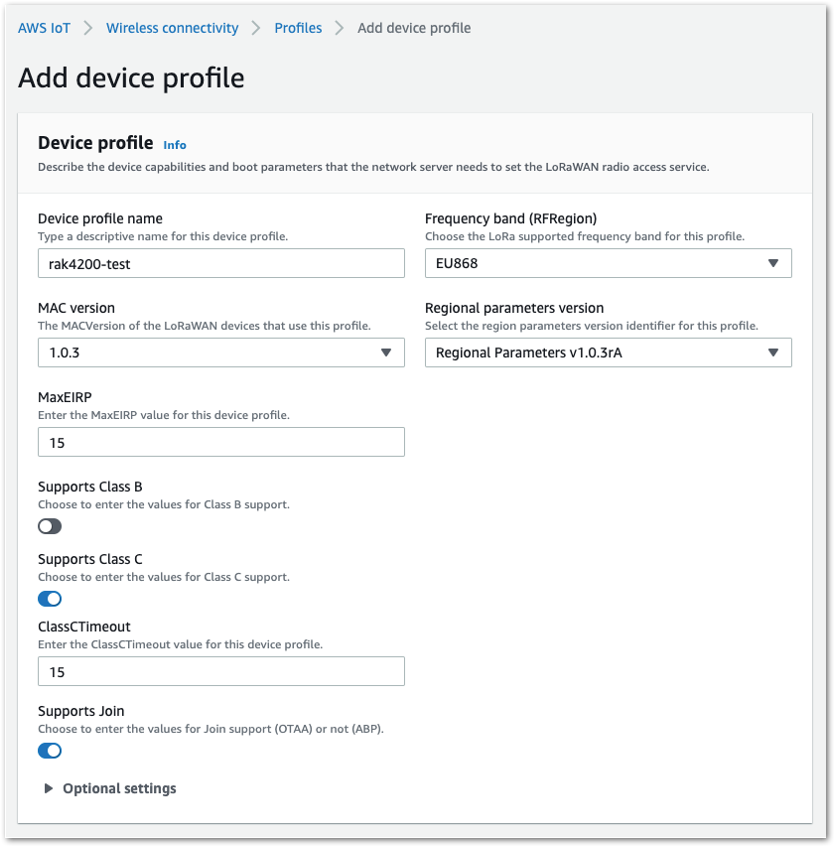

Add Device Profile.
Add Service Profile.
Add Destination.
Before adding the destination, follow the Add IAM role for Destination to AWS IoT Core for LoRaWAN section to configure IAM policy and role.

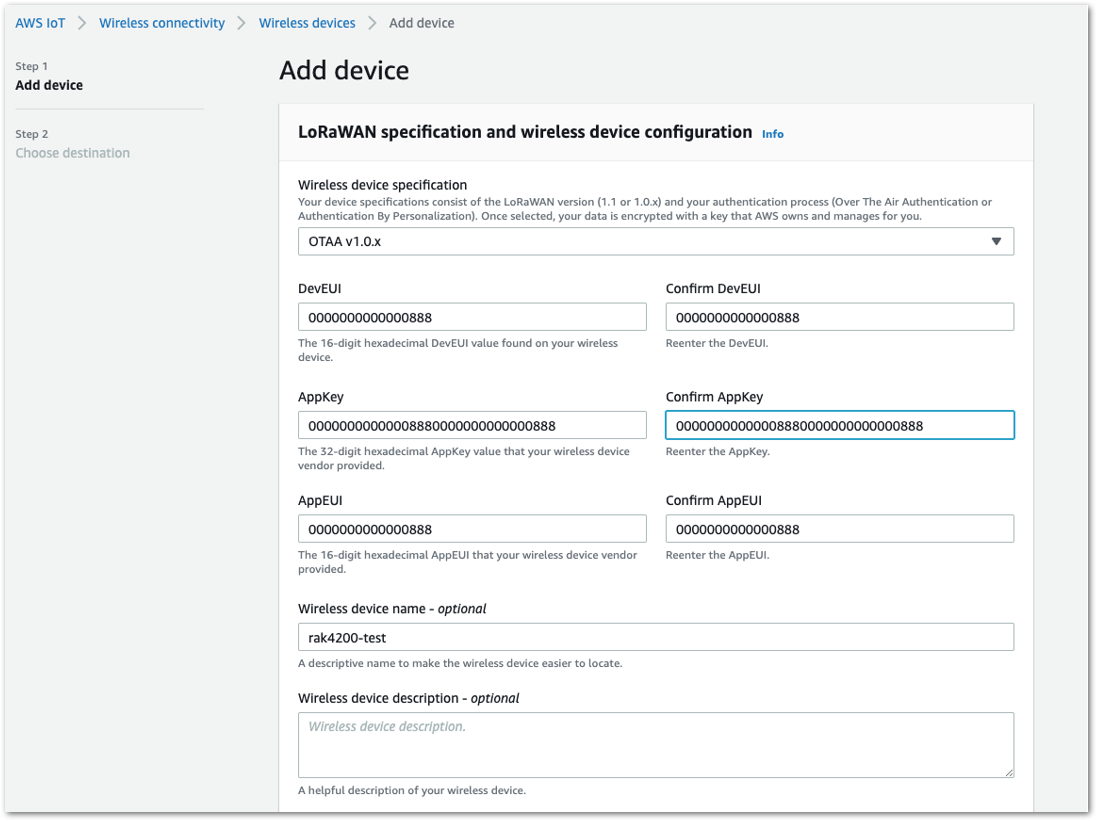

Add Device.
Before adding a device to AWS IoT, retrieve the DevEui, AppEui, and AppKey from the end Device's console. You can use AT command at+get_config=lora:status to obtain the information.
For more AT commands, refer to the RAK4200 AT Command Manual.
at+get_config=lora:status\r\n
OK Work Mode: LoRaWAN
Region: EU868
Send_interval: 600s
Auto send status: false.
MulticastEnable: true.
Multi_Dev_Addr: 260111FD
Multi_Apps_Key: F13DDFA2619B10411F02F042E1C0F356
Multi_Nwks_Key: 1D1991F5377C675879C39B6908D437A6
Join_mode: OTAA
DevEui: 0000000000000888
AppEui: 0000000000000888
AppKey: 00000000000008880000000000000888
Class: C
Joined Network:false
IsConfirm: unconfirm
AdrEnable: true
EnableRepeaterSupport: false
RX2_CHANNEL_FREQUENCY: 869525000, RX2_CHANNEL_DR:0
RX_WINDOW_DURATION: 3000ms
RECEIVE_DELAY_1: 1000ms
RECEIVE_DELAY_2: 2000ms
JOIN_ACCEPT_DELAY_1: 5000ms
JOIN_ACCEPT_DELAY_2: 6000ms
Current Datarate: 4
Primeval Datarate: 4
ChannelsTxPower: 0
UpLinkCounter: 0
DownLinkCounter: 0

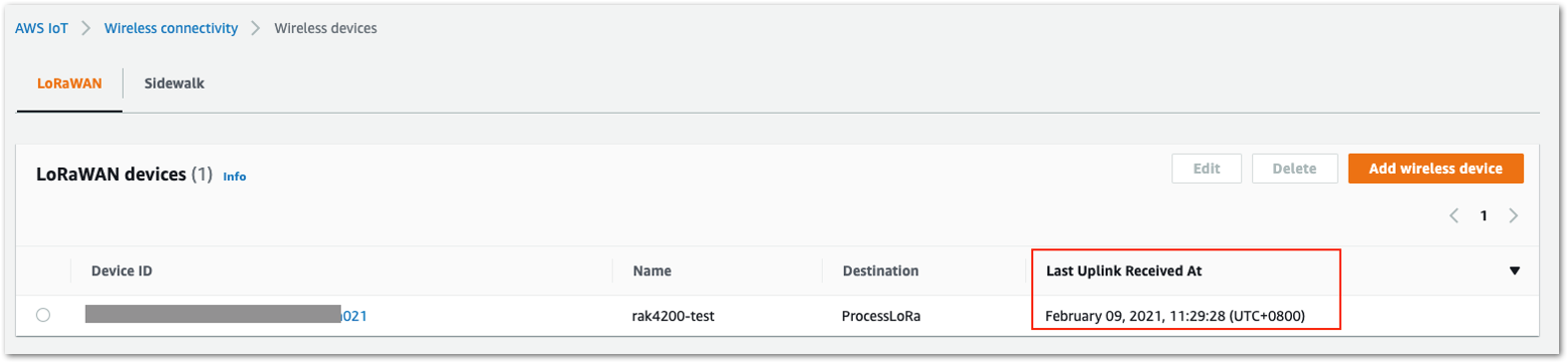

Restart the end Device, and it should join the AWS IoT LoRaWAN server.
EVENT:0:STARTUP
SYSLOG:4:OTAA Join Request
SYSLOG:4:OTAA Join Success
EVENT:1:JOIN_NETWORK
SYSLOG:4:LoRa Tx :
Use the AT command at+send:lora:1:1234567890 to send an uplink message.
Here is the console log after sending uplink message.
1
OK
SYSLOG:4:LoRa Tx : 1234567890
EVENT:3:LORA_TX_DONE:1:OK

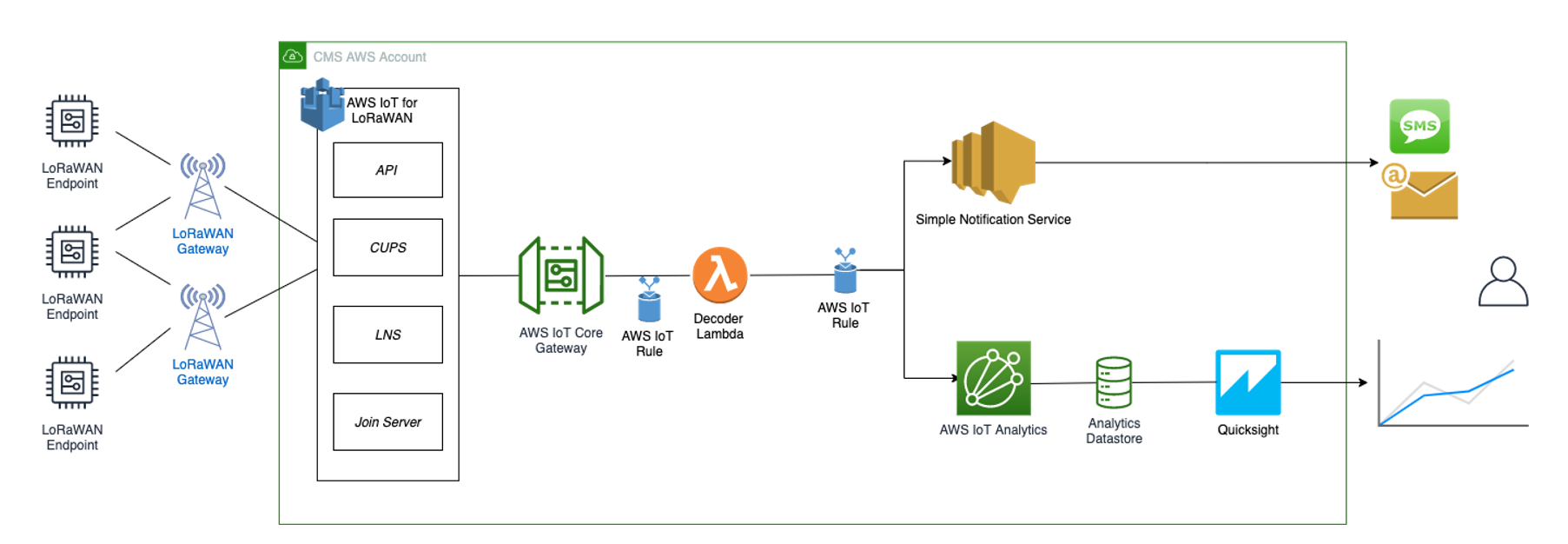

Verifying Operation: A "Hello World" Example
Once setup is completed, provisioned OTAA devices can join the network and start to send messages. Messages from devices can then be received by AWS IoT Core for LoRaWAN and forwarded to the IoT Rules Engine.
Instructions for a sample Hello World application are given below, assuming that the device has joined and is capable of sending uplink traffic.
Create a Lambda Function for Destination Rule
Create the lambda function to process device messages processed by the destination rule.
Go to the AWS Lambda console.
Click on Functions in the navigation pane.
Click on Create function.
Select Author from scratch.
Under Basic Information, enter the function name and choose Runtime Python 3.8. from the drop-down under Runtime.
Click on Create function.
Under Function code, paste the copied code into the editor under the lambda_function.py tab.
import base64
import json
import logging
import ctypes
import boto3
# define function name
FUNCTION_NAME = 'RAK-HelloWorld'
# Second Byte in Payload represents Data Types
# Low Power Payload Reference: https://developers.mydevices.com/cayenne/docs/lora/
DATA_TYPES = 1
# Type Temperature
TYPE_TEMP = 0x67
# setup iot-data client for boto3
client = boto3.client('iot-data')
# setup logger
logger = logging.getLogger(FUNCTION_NAME)
logger.setLevel(logging.INFO)
def decode(event):
data_base64 = event.get('PayloadData')
data_decoded = base64.b64decode(data_base64)
result = {
'devEui': event.get('WirelessMetadata').get('LoRaWAN'
).get('DevEui'),
'fPort': event.get('WirelessMetadata').get('LoRaWAN'
).get('FPort'),
'freq': event.get('WirelessMetadata').get('LoRaWAN'
).get('Frequency'),
'timestamp': event.get('WirelessMetadata').get('LoRaWAN'
).get('Timestamp'),
}
if data_decoded[DATA_TYPES] == TYPE_TEMP:
temp = data_decoded[DATA_TYPES + 1] << 8 \
| data_decoded[DATA_TYPES + 2]
temp = ctypes.c_int16(temp).value
result['temperature'] = temp / 10
return result
def lambda_handler(event, context):
data = decode(event)
logger.info('Data: %s' % json.dumps(data))
response = client.publish(topic=event.get('WirelessMetadata'
).get('LoRaWAN').get('DevEui')
+ '/project/sensor/decoded', qos=0,
payload=json.dumps(data))
return response
Once the code has been pasted, choose Deploy to deploy the lambda code.
Click on the Permissions tab of the lambda function.
Change the Lambda Role Policy permission.
- Under Execution role, click on the hyperlink under Role name.
- On the Permissions tab, find the policy name and select it.
- Choose Edit policy, and choose the JSON tab.
- Append the following to the Statement section of the policy to allow publishing to AWS IoT.
{
"Effect":"Allow",
"Action":[
"iot:Publish"
],
"Resource":[
"*"
]
}
- Choose Review Policy, then Save changes.
Create a test event that will allow you to test the functionality of the lambda function.
- In the drop-down, for the Select a test event, choose Configure test events.
- Enter a name for the test event under the Event name.
- Paste the following sample payload in the area under Event name:
{
"WirelessDeviceId": "65d128ab-90dd-4668-9556-fe47c589610b",
"PayloadData": "AWf/1w==",
"WirelessMetadata": {
"LoRaWAN": {
"DataRate": "4",
"DevEui": "0000000000000088",
"FPort": 1,
"Frequency": "868100000",
"Gateways": [
{
"GatewayEui": "80029cffXXXXXXXX",
"Rssi": -109,
"Snr": 5
}
],
"Timestamp": "2021-02-08T04:00:40Z"
}
}
}
Choose Create to save the event.
Navigate to the AWS IoT console, choose Test on the navigation pane, and select MQTT client.
Configure the MQTT client to subscribe to "#" (all topics).
Click on Test in the Lambda function page to generate the test event you just created.
Verify the published data in the AWS IoT Core MQTT Test client:
- Open another window. Go to AWS IoT Console, select Test under Subscription Topic, enter # and select to Subscribe to topic.
- The output should look similar to this:
000000000000000088/project/sensor/decoded February 09, 2021, 14:45:29 (UTC+0800)
{
"devEui": "000000000000000088",
"fPort": 1,
"freq": "868100000",
"timestamp": "2021-02-08T04:00:40Z",
"temperature": -4.1
}
Create the Destination Rule
In this section, create the IoT rule that forwards the device payload to your application. This rule is associated with the destination created earlier in Set up a Destination for Device Traffic section.
Navigate to the AWS IoT console.
In the navigation pane, choose Act, then select Rules.
On the Rules page, choose Create.
On the Create a rule page, enter as follows:
- Name: LoRaWANRouting
- Description: Any description of your choice.
đź“ť NOTE: The Name of your Rule is the information needed when you provision devices to run on AWS IoT Core for LoRaWAN. |
Leave the default Rule query statement: 'SELECT * FROM 'iot/topic' unchanged. This query has no effect at this time, as traffic is currently forwarded to the rules engine based on the destination.
Under Set one or more actions, choose Add action.
On the Select an action page, choose Republish a message to an AWS IoT topic. Scroll down and choose Configure action.
On the Configure action page, for Topic, enter project/sensor/decoded. The AWS IoT Rules Engine will forward messages to this topic.
Under Choose or create a role to grant AWS IoT access to perform this action, select Create Role.
For Name, enter a name of your choice.
Choose Create role to complete the role creation. You will see a "Policy Attached" tag next to the role name, indicating that the Rules Engine has been permitted to execute the action.
Choose Add action.
Add one more action to invoke the Lambda function. Under Set one or more actions, choose Add action.
Choose Send a message to a Lambda function.
Choose Configure action.
Select the Lambda function created earlier and choose Add action.
Then, choose Create rule.
A "Success" message will be displayed at the top of the panel, and the destination has a rule bound to it.
You can now check that the decoded data is received and republished by AWS by triggering a condition or event on the device itself.
- Go to the AWS IoT console. In the navigation pane, select Test, and choose MQTT client.
- Subscribe to the wildcard topic '#" to receive messages from all topics.
- Send message from endDevice using AT command: at+send:lora:1:01670110.
- You should see traffic similar to that shown below.
393331375d387505/project/sensor/decoded February 09, 2021, 14:47:21 (UTC+0800)
{
"devEui": "393331375d387505",
"fPort": 1,
"freq": "867100000",
"timestamp": "2021-02-09T06:47:20Z",
"temperature": 27.2
}
project/sensor/decoded February 09, 2021, 14:47:21 (UTC+0800)
{
"WirelessDeviceID": 6477ec22-9570-31d5981da021",
"PayloadData": "AWcBEA==",
"WirelessMetadata": {
"LoRaWAN": {
"DataRate": "4",
"DevEui": "393331375d387505",
"FPort": 1,
"Frequency": "867100000",
"Gateways": [
{
"GatewayEui": "ac1ff09fffe014bd5",
"Rssi": -103,
"Snr": 8.5
}
],
"Timestamp": "2021-02-09T06:47:20Z"
}
}
}
Configuring Amazon SNS
You will be using the Amazon Simple Notification Service to send text messages (SMS) when certain conditions are met.
Go to the Amazon SNS console.
Click on the menu in the left corner to open the navigation pane.
Select Text Messaging (SMS) and choose Publish text message.
Under Message type, select Promotional.
Enter your phone number (phone number that will receive text alerts).
Enter "Test message" for the Message and choose Publish message.
If the phone number you entered is valid, you will receive a text message and your phone number will be confirmed.
Create an Amazon SNS Topic as follows:
- In the navigation pane, choose Topics.
- Select Create topic.
- Under Details, select Standard.
- Enter a name of your choice. Here, you will use "text_topic".
- Choose Create topic.
Create a subscription for this topic:
- On the page for the newly created text_topic, choose the Subscriptions tab.
- Choose Create subscription.
- Select Protocol as SMS from the drop-down.
- Under Endpoint, enter the previously validated phone number to receive the SMS alerts.
- Choose Create subscription. You should see a "Subscription to text_topic created successfully" message.
Add a Rule for Amazon SNS Notification
Now, add a new rule to send an Amazon SNS notification when certain conditions are met in a decoded message.
Navigate to the AWS IoT console.
In the navigation pane, choose Act. Then, choose Rules.
On the Rules page, choose Create.
Enter the Name as text_alert and provide an appropriate Description.
Under the Rule query statement, enter the following query:
SELECT devEui as device_id, "Temperature exceeded 25" as message, temperature as temp, timestamp as time FROM '+/project/sensor/decoded' where temperature > 25
Choose Add action.
Choose Send a message as an SNS push notification.
Choose Configure action.
Under SNS target, select text_topic from the drop-down.
Select RAW under Message format.
Under Choose or create a role to grant AWS IoT access to perform this action, choose Create role.
Enter a name for the role and choose Add action.
Choose Create rule. You should see a "Success" message, indicating that the rule has been created.
Test the Rule for Amazon SNS Notification
After adding the rule for Amazon SNS notification, you should receive a text message when hitting the event.
Send message from endDevice using AT command: at+send:lora:1:01670110. Here is the message from mobile after sending an uplink message.
{
"device_id: "393331375d387505",
"message": "Temperature exceeded 25",
"temp": 27.2,
"time": "2021-02-22T07:58:54Z"
}
Send Downlink Payload
This section shows how to send downlink payload from AWS IoT LoRaWAN Server to end Device.
Install the AWS SAM CLI.
Deploy SAM template to AWS.
Send Payload to End Device.
- Go to the AWS IoT console.
- In the navigation pane, select Test, and choose MQTT client.
- Subscribe to the wildcard topic '#" to receive messages from all topics.
- Specify the topic to cmd/downlink/{WirelessDeviceId} and a base64-encoded message.

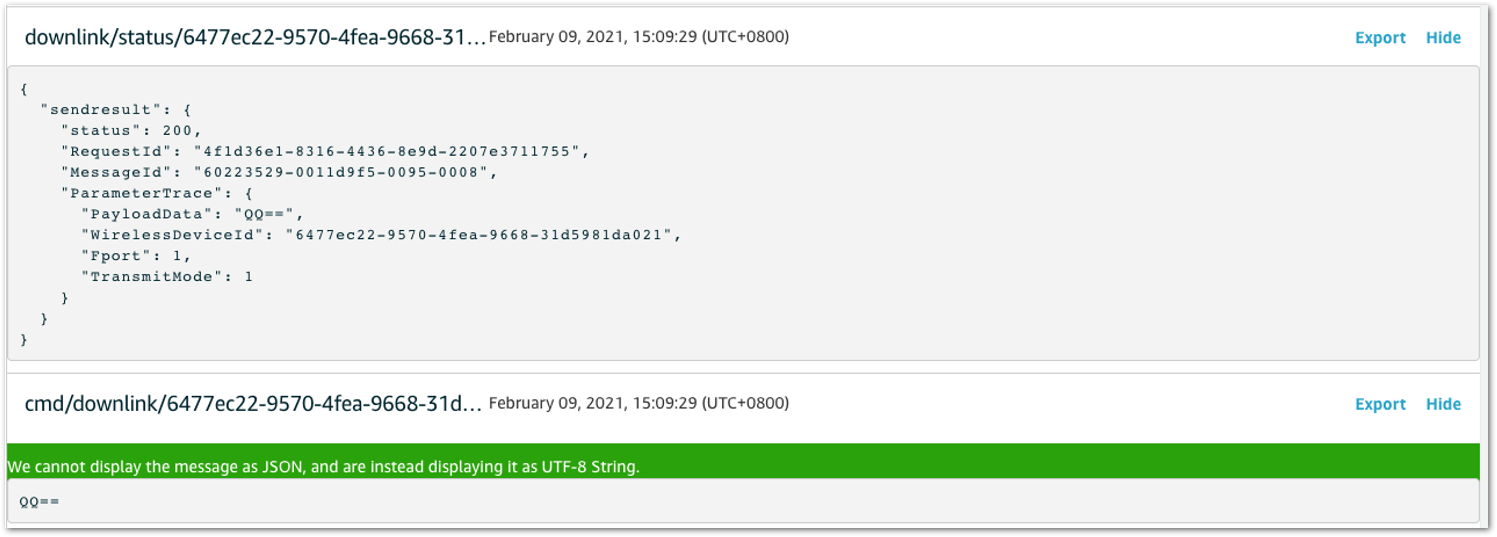

You should see traffic on AWS similar as shown below:
downlink/status/6477ec22-9570-4fea-9668-31d5981da021 February 09, 2021, 15:09:29 (UTC+0800)
{
"sendresult": {
"status": 200,
"RequestId": "4f1d36e1-8316-4436-8e9d-2207e3711755",
"MessageId": "60223529-0011d9f5-0095-0008",
"ParameterTrace": {
"PayloadDate": "QQ==",
"WirelessDeviceId": "6477ec22-9570-4fea-9668-31d5981da021",
"Fport": 1,
"TransmitMode": 1
}
}
}
You should see traffic on your console of end device similar as shown below.
SYSLOG:4:LoRa rX : 41 - 14
SYSLOG:4:LoRa Tx :
IoT Analytics
You will use IoT Analytics to visually display data via graphs if there is a need in the future to do further analysis.
Create an IoT Analytics Rule
Create a Rule First
Navigate to the AWS IoT console.
In the navigation pane, choose Act and then, choose Rules.
On the Rules page, choose Create.
Enter the Name as Visualize, and provide an appropriate Description.
Under the Rule query statement, enter the following query:
SELECT * FROM 'project/sensor/decoded'
Choose Add action.
Select Send a message to IoT Analytics.
Choose Configure Action.
Choose Quick Create IoT Analytics Resources.
Under Resource Prefix, enter an appropriate prefix for your resources, such as LoRa Choose Quick Create.
Once the Quick Create Finished message is displayed, choose Add action.
Choose Create rule. You should see a Success message, indicating that the rule has been created.
Configure AWS IoT Analytics
Set up AWS IoT Analytics
Go to the AWS IoT Analytics console.
In the navigation panel, choose Data sets.
Select the data set generated by the Quick Create in Create an IoT Analytics Rule
In the Details section, edit the SQL query.
Replace the query with as follows: SELECT devEui as device_id, temperature as temp, timestamp as time
FROM LoRa_datastore
Under Schedule, choose Add schedule.
Under Frequency, choose Every 1 minute, and then click Save.
Configure Amazon QuickSight
Amazon QuickSight lets you easily create and publish interactive BI dashboards that include Machine Learning-powered insights.
Go to AWS Management console.
From the management console, enter QuickSight in the "Search for services, features.." search box.
Click on QuickSight in the search results.
If you haven't signed up for the service before, go ahead and sign up, as there is a free trial period.
Select the Standard Edition, and choose Continue.
Enter a unique name in the field QuickSight account name.
Fill in the Notification email address.
Review the other checkbox options and change them as necessary. The AWS IoT Analytics option must be selected.
Choose Finish. You will see a confirmation message.
Choose Go to Amazon QuickSight.
Select Datasets.
Select New dataset.
Select AWS IoT Analytics.
Under Select an AWS IoT Analytics data set to import, choose the data set created in Create an IoT Analytics Rule.
Choose Create data source, and then choose Visualize.
Select the dataset created, then select Refresh or Schedule Refresh for a periodic refresh of the dataset.
Testing your "Hello Word" Application
Using your device, create a condition to generate an event such as a high-temperature condition. If the temperature is above the configured threshold then you will receive a text alert on your phone. This alert will include key parameters about the alert.
You can also visualize the data set as follows:
Go to the AWS IoT Analytics console.
Choose Data sets.
Select the dataset created earlier.
Select Content and ensure there are at least few uplink entries available in the data set.
Go to the QuickSight console.
Choose New analysis.
Choose the dataset created in Create an IoT Analytics Rule.
Select time on the X-axis, Value as temp (Average) and Color as device_id to see a chart of your dataset.
Debugging

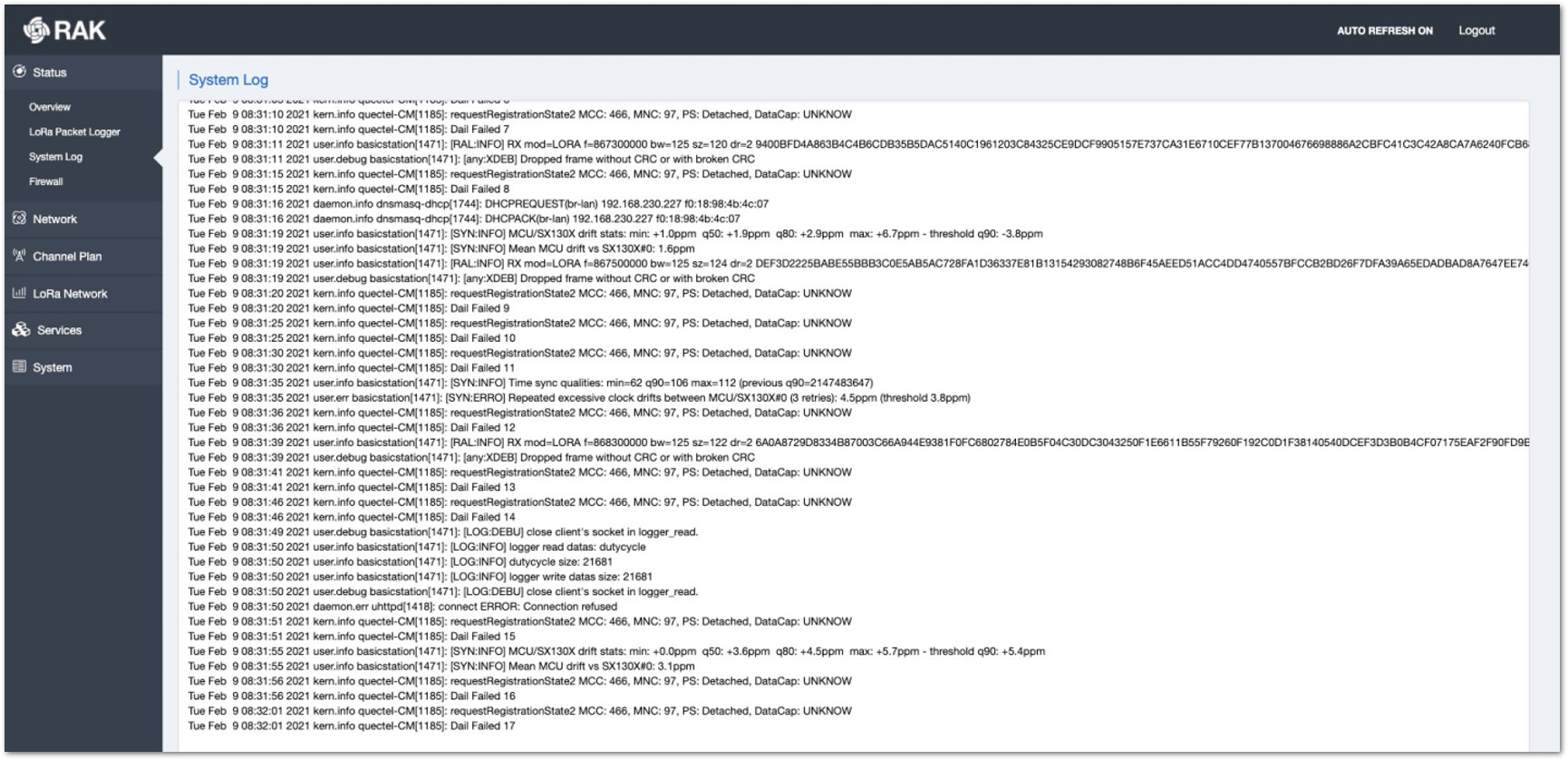

After login to the device using the web browser, the system log can be viewed from Status > System Log.
Troubleshooting
Unable to see the web login:
- Check that your wifi is connected to RAK7240_XXXX.
- Try ping 192.168.230.1.
Lost password to login to the web login.
- Hold the reset button for 10 seconds to factory reset the device
Updated
