How To Use the MQTT Broker Like a Pro + Examples

Description

This tutorial is for people who have purchased a RAK WisGate Edge gateway and want to use the Built-in Network Server functionality to its fullest.

Here you will learn how to subscribe to a topic to obtain data from your end-devices through MQTT. For convenience, the Built-in Network Server will be used in the examples.

This article is suitable for all RAK WisGate Edge series gateways. It discusses how to use the built-in MQTT as well as an external one.

A Brief Introduction to LoRaWAN and MQTT

If you are familiar with the two, you can skip this part.

LoRaWAN

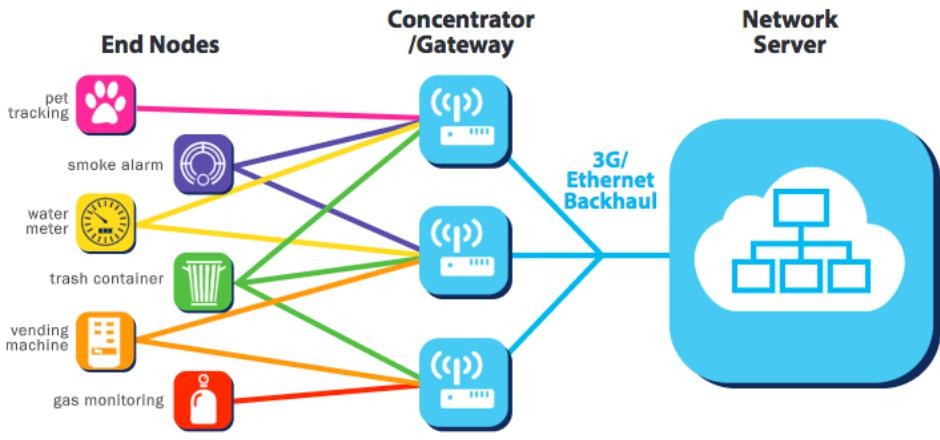

As shown in Figure 1, LoRaWAN network roles are divided into:

End nodes - The end-devices responsible for data collection. the data is then encrypted and transmitted to de gateway in the form of a wireless signal.
Concentrator/Gateway - They collect the data from multiple nodes and send it to the Network server (NS).
Network Server - The NS decrypts and processes the data forwarded by the gateway according to the data identification information and key.

RAK simplifies the actual deployment of a LoRaWAN network by integrating an NS in all our commercial gateways.

MQTT

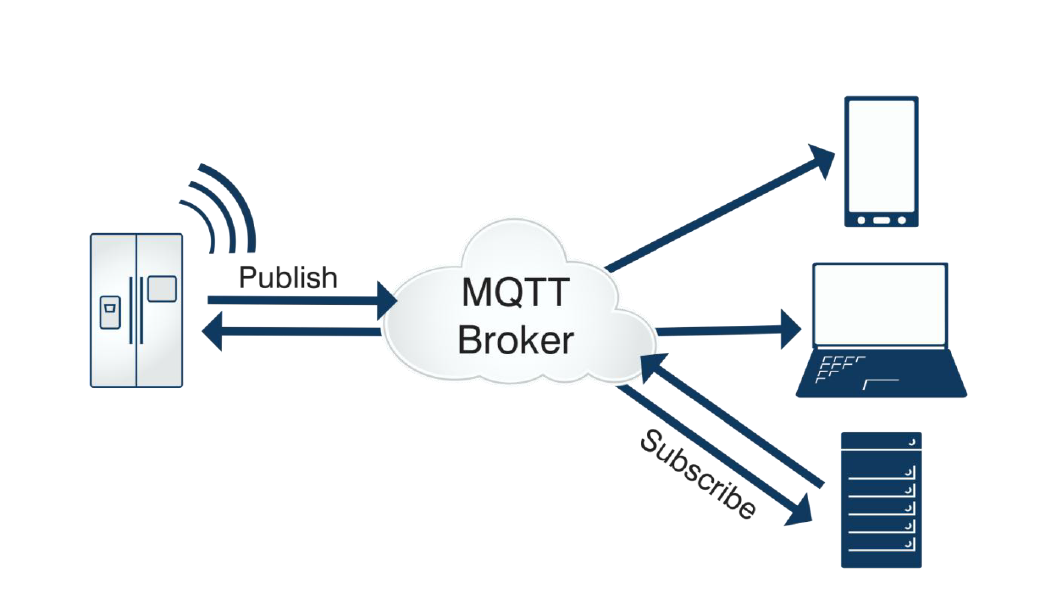

MQTT stands for Message Queuing Telemetry Transport, which is a publish/subscribe, extremely simple and lightweight, messaging protocol, intended for use on constrained devices and low-bandwidth, high-latency, or unreliable networks.

For more information, check out our article about MQTT.

The Role of MQTT in the LoRaWAN Networks

Practical application 1: Use the built-in MQTT Broker of RAK commercial gateway

The WisGate Edge gateway obtains data from the nodes and sends it to the built-in NS. It will then publish the data to the built-in MQTT Broker.

In this case, the gateway is both the publisher and the broker at the same time. The user then subscribes to the topic through third-party programs, like MQTT.fx, to be able to manage that data.

Practical application 2: Use the built-in NS to publish data to an external MQTT Broker

The RAK commercial gateway obtains the data and sends it to the built-in NS, and it then publishes the data to a third-party MQTT Broker. Users subscribe through third-party programs. In this case, the gateway is only a publisher.

Configuring the Built-in Network Server

This tutorial is for the WisGate Edge series of devices, all of which come pre-configured in Network Server operation mode, so there is no need to adjust this setting unless you have changed it.

For details on configuring the settings mentioned above visit the WisGate Edge Documentation.

However, there might be some adjustments needed for a particular setup like this one. Depending on your location, you have to make sure you have set the channel plan to one corresponding to your regional frequency band. Depending on the gateway variant, the default channel plan might not be the one you need.

For guidance on implementing changes, you can read this guide, or refer to the instructional video.

Use the Built-in MQTT Broker

This chapter will show you how to subscribe to topics, receive and send data reported by nodes through MQTT.fx, using the build-in MQTT Broker. You will need the MQTT.fx tool (MQTT clients) that can be downloaded here.

Create an Uplink Topic

The data is transmitted using an Uplink Topic. To see the MQTT topic templates for your gateway, you can navigate through the Web UI and click LoRa® > Configuration > Integration Interface Parameters.

📝 NOTE: Do not change the topics in your gateway. They are just templates of what your topic should look like and what the built-in MQTT Broker uses.

To generate a correct Uplink Topic you will need the template and the following information:

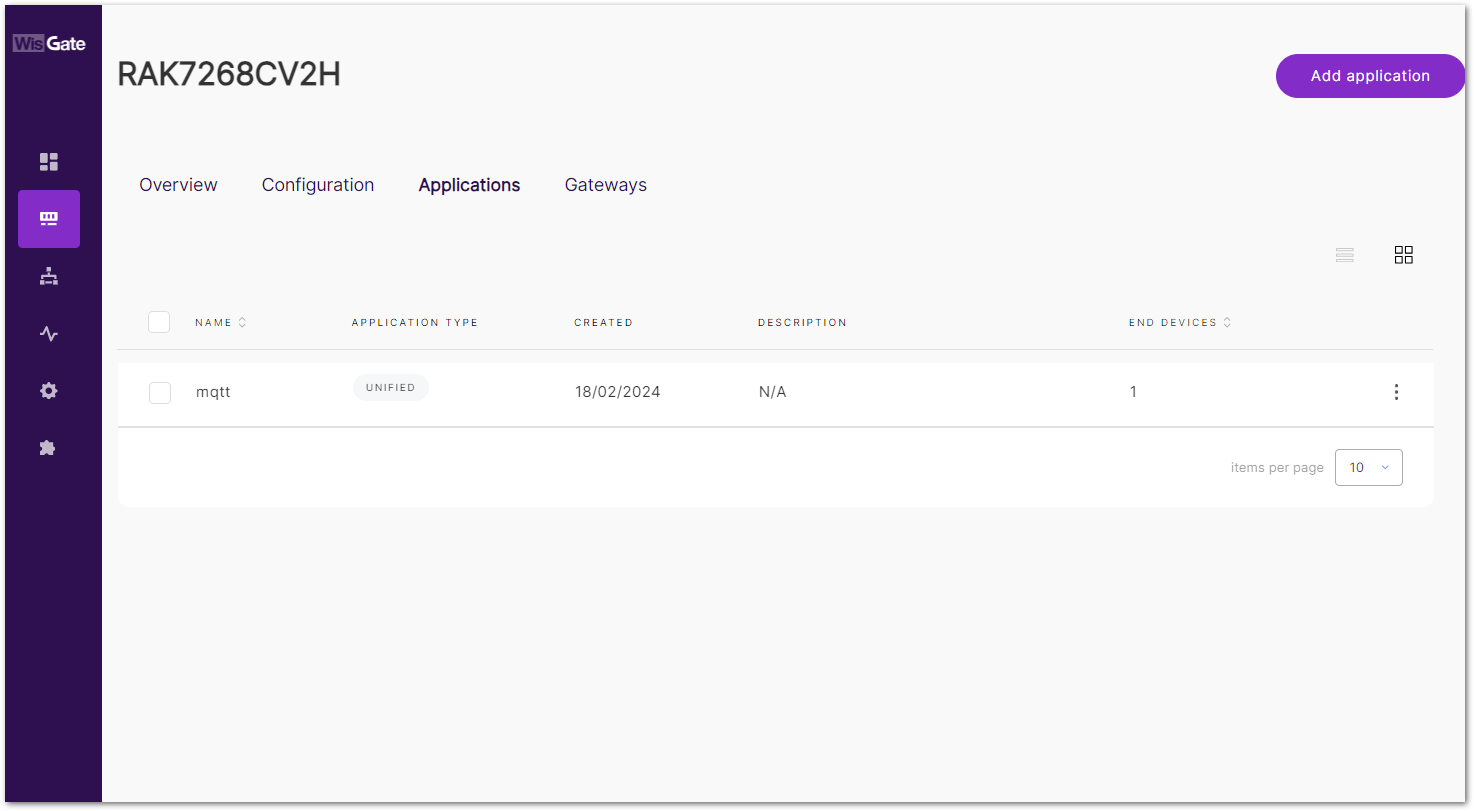

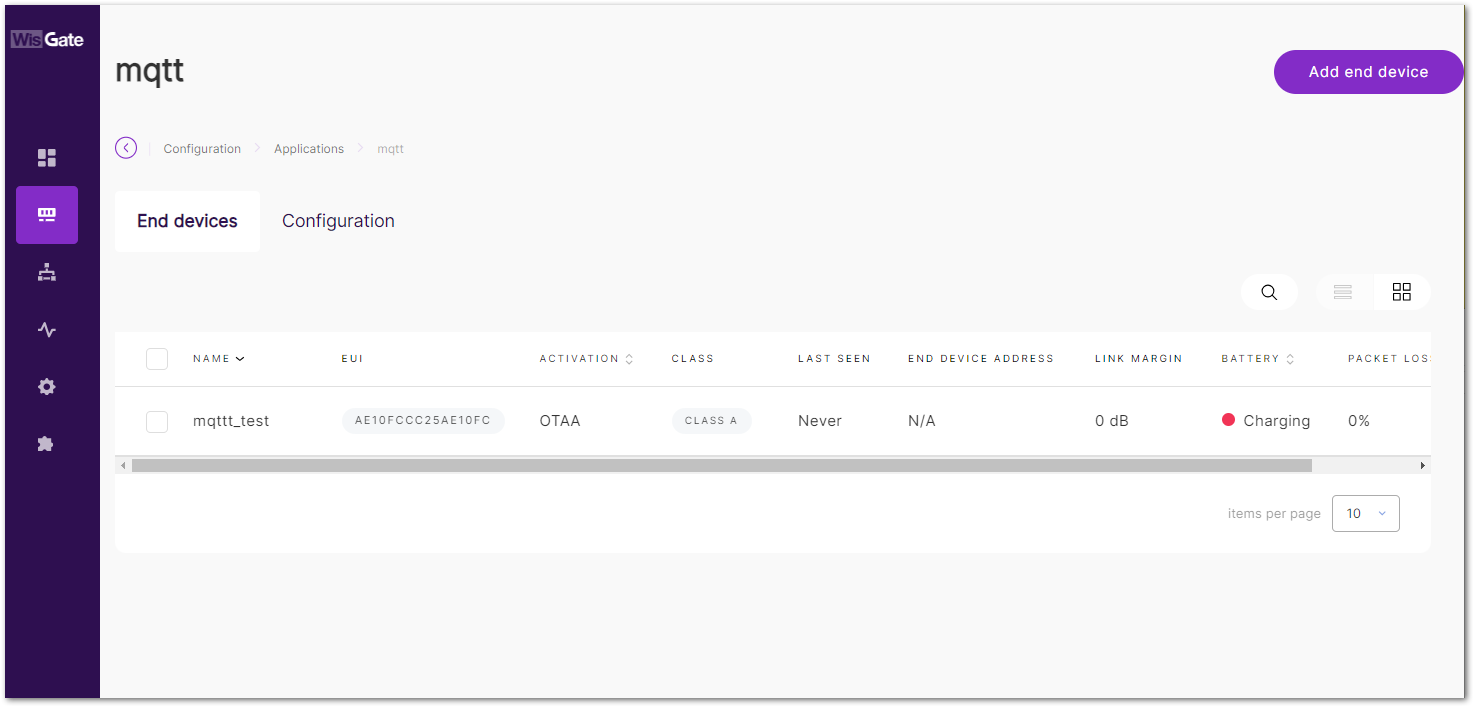

application_ID – This is the ID of your application. To see it, navigate to LoRa® > Application.
device_EUI – This is the EUI of your device. To see it, navigate to LoRa Network > Your Application (mqtt) > Your End Device (mqtt_test).

With this information, the topic template application/{{application_name}}/device/{{device_EUI}}/rx will change to something like:

application/mqtt/device/ae10fccc25ae10fc/rx

📝 NOTE: Device EUI default lowercase.

If you want to subscribe to all nodes in an application, use the following topic (replace application_name with the name of your application):

application/{{application_name}}/device/+/rx

If you want to subscribe to data from all applications, use the topic:

application/+/device/+/rx

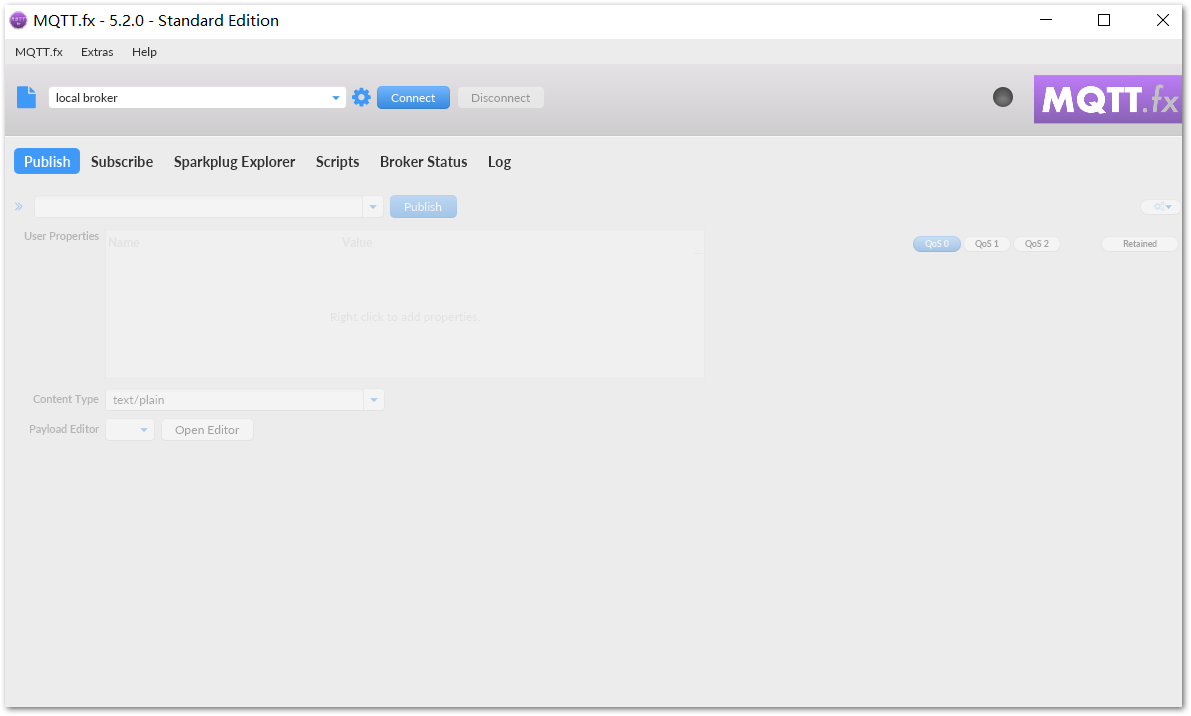

Open the MQTT.fx tool and click on the New button.

Type the IP address of the gateway and click Connect. The black indicator on the far right should turn green, indicating that the connection is successful.

📝 NOTE: For this tutorial, the gateway is connected to the local network, so the IP is 192.168.230.1. Yours will be different.

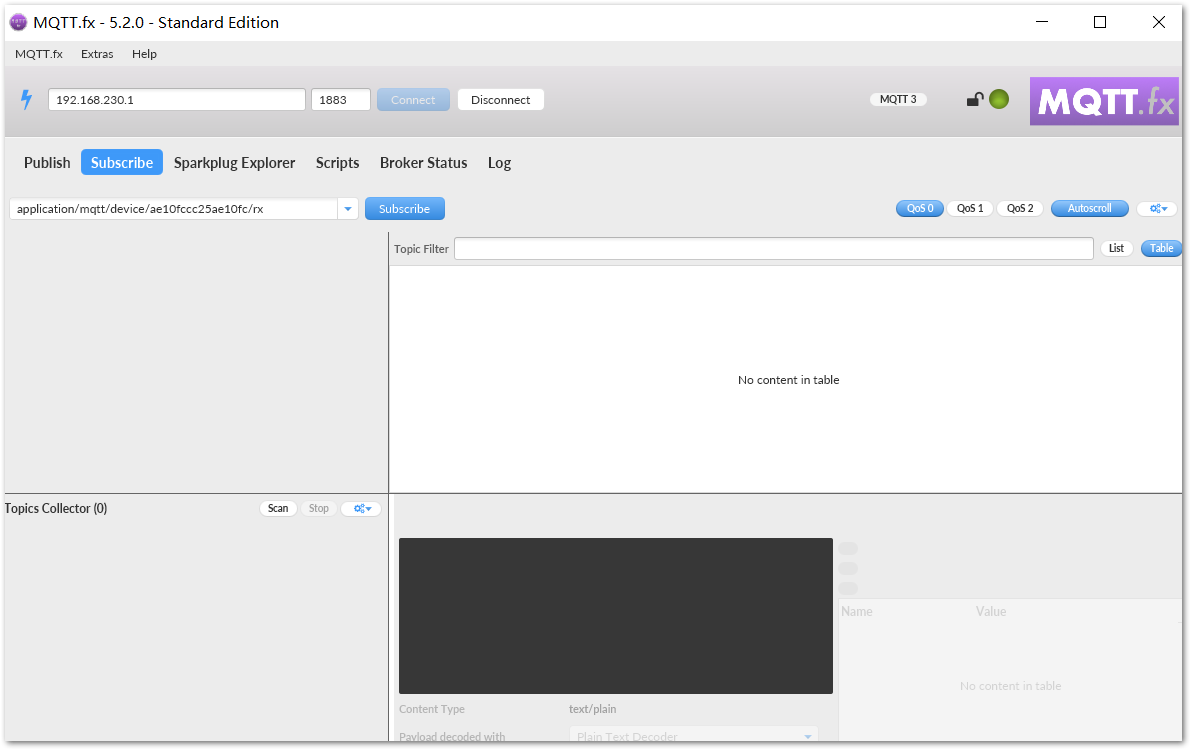

To connect to the topic, navigate to the Subscribe tab, type in the Uplink Topic you created, and click the Subscribe button.

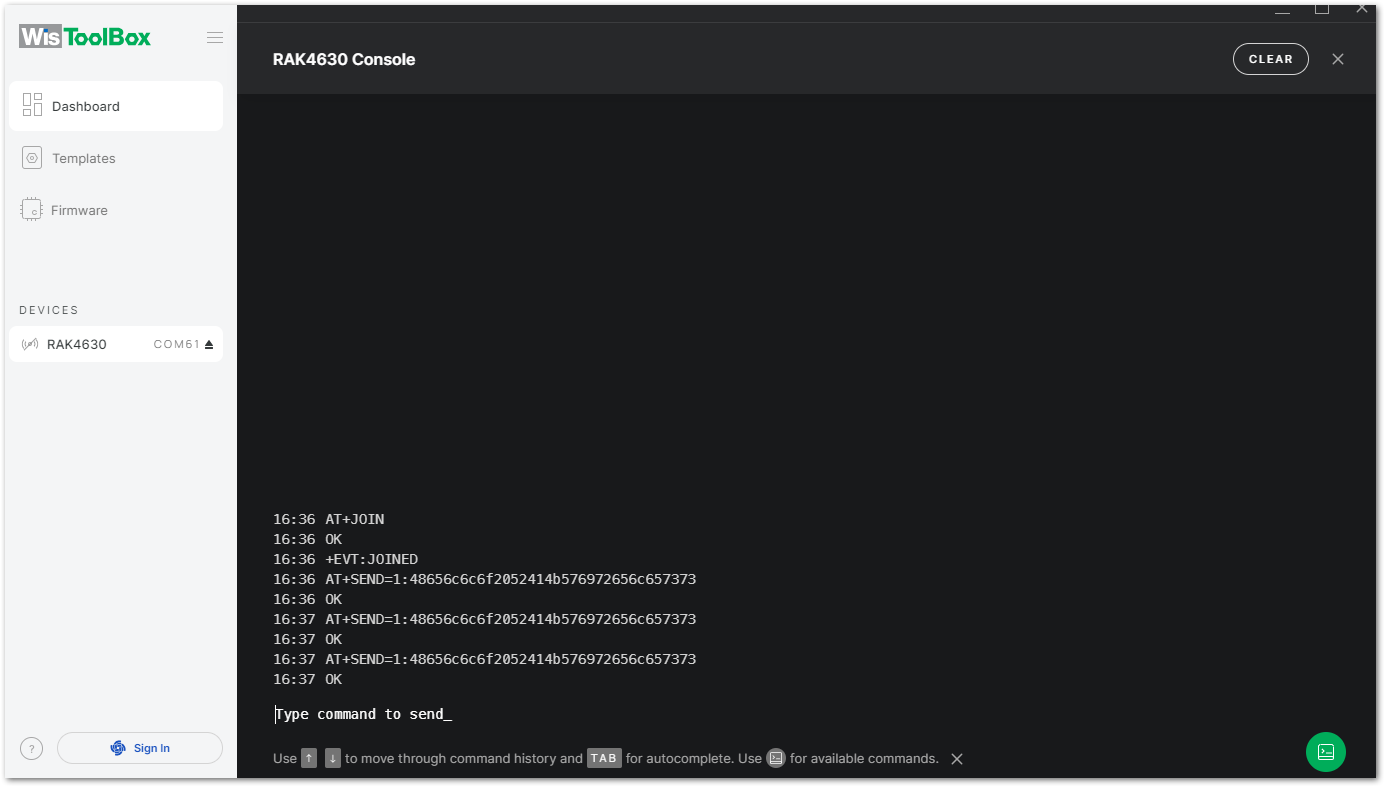

You can send a message from the node to test the connection. Via Download the WisToolBox APP, navigate to Dashboard > ADVANCE > OPEN CONSOLE, you can send a “Hello RAKwireless” message. The data must be in HEX, so if you want to send the message, use the following command:

AT+SEND=1:48656c6c6f2052414b576972656c657373

📝 NOTE To convert any message in HEX, use a converter like this.

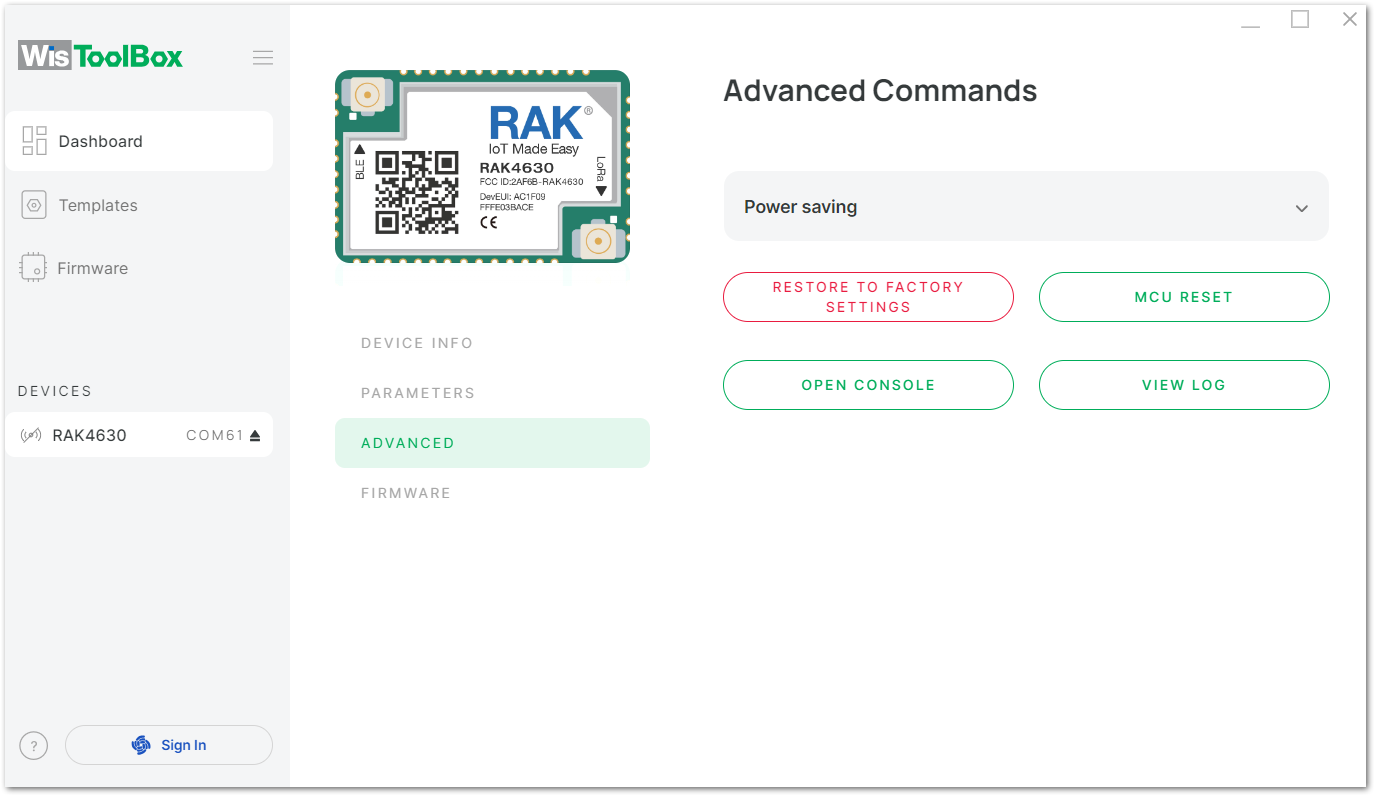

📝 NOTE: In this example, RAK4630 WisDuo LPWAN+BLE Module is used. However, the tutorial will work with any LoRaWAN device.

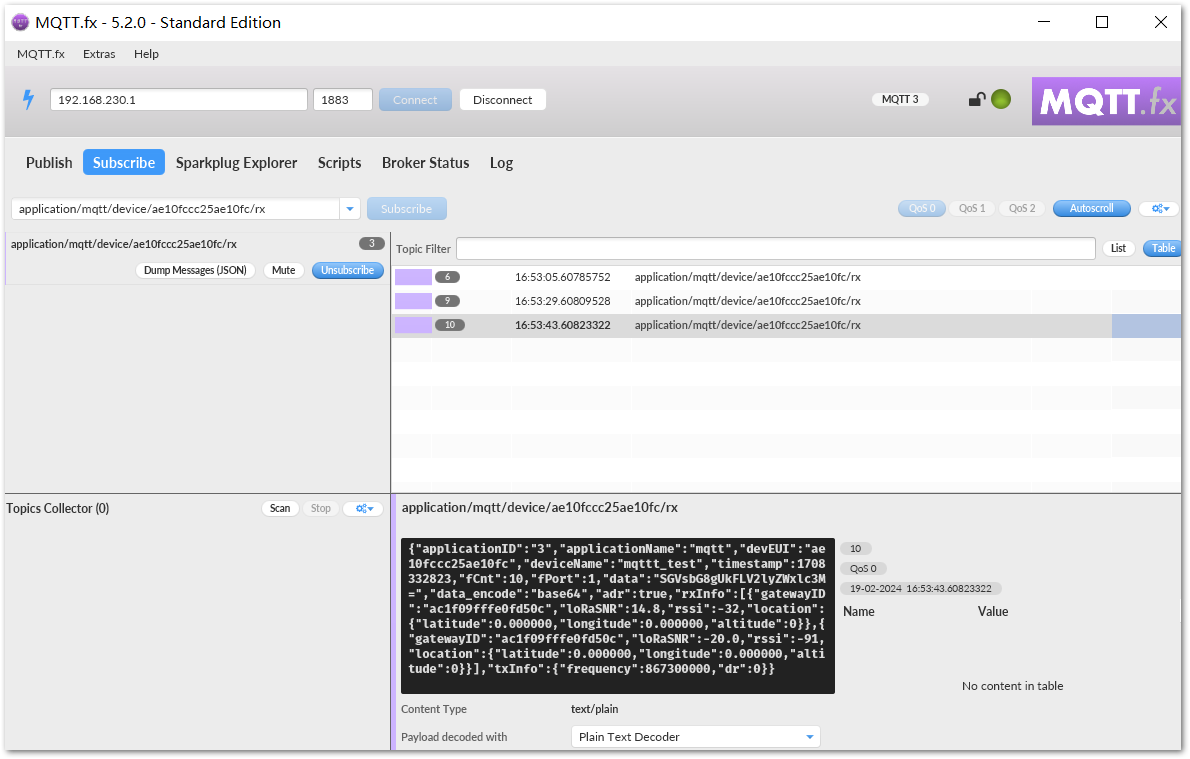

In the MQTT.fx interface, you can see the message you just sent. The message is encoded in base64 format.

Send Data to the Node via MQTT.fx

To send data to the nodes (downlink) requires publishing the data to the Downlink Topic. To see the topics templates, go to the Create an Uplink Topic part for reference. Find the Downlink Topic template and replace the application_ID with the ID of your application and device_EUI with the EUI of your device.

An example of a Downlink Topic is similar to what is shown below：

application/mqtt/device/ae10fccc25ae10fc/tx

📝 NOTE: The Downlink Topic ends with tx.

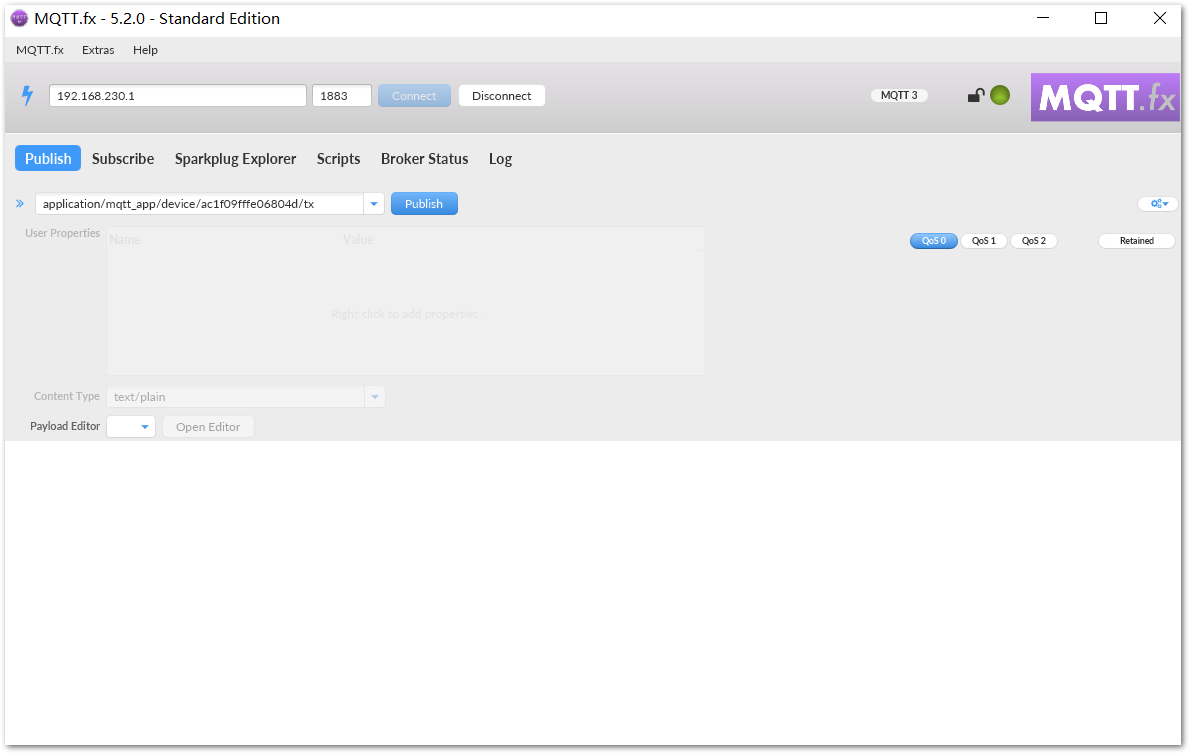

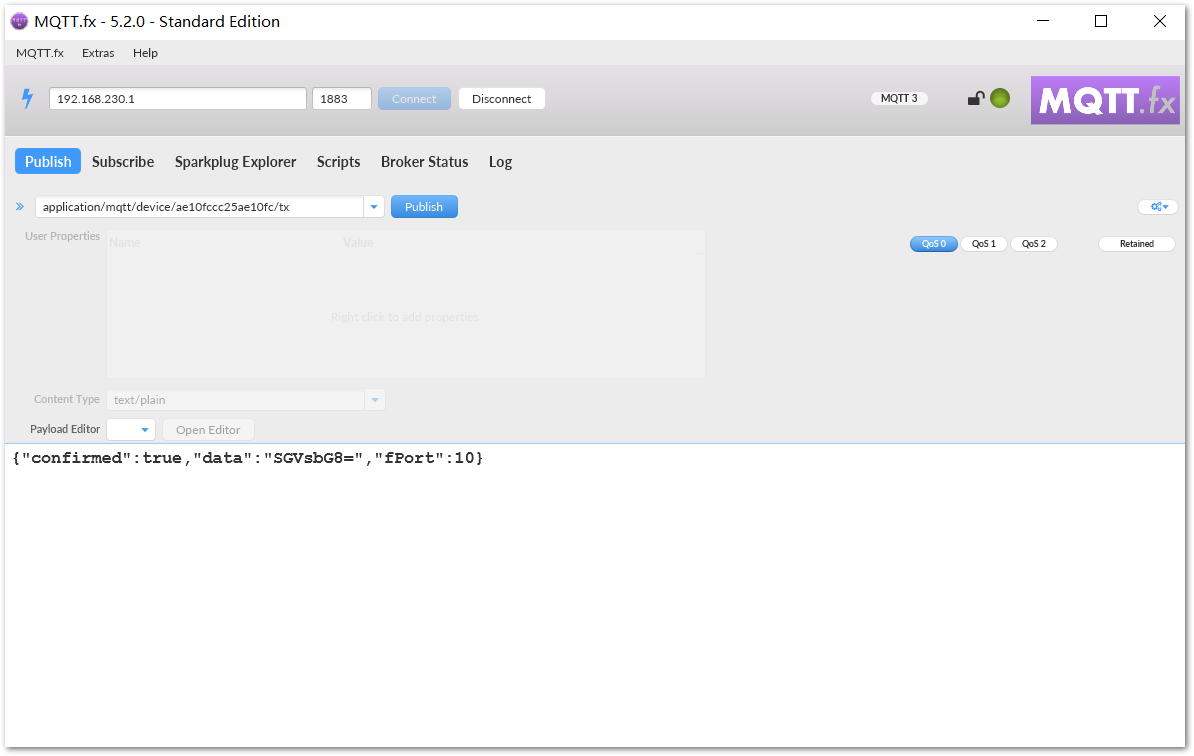

In the MQTT.fx, navigate to Publish tab and type the name of your topic.

To send a message to the node, in the field under the topic’s name type the command for it and click the Publish button. To send a "Hello" message, use the command:

{"confirmed":true,"data":"SGVsbG8=","fPort":10}

Where:

- Confirmed can be true or false.
- The content of the data is the information you want to send. The information must be base64 encoded. This can be done with a converter.
- fPort is the port number where you send the data. The number can be 1-255.

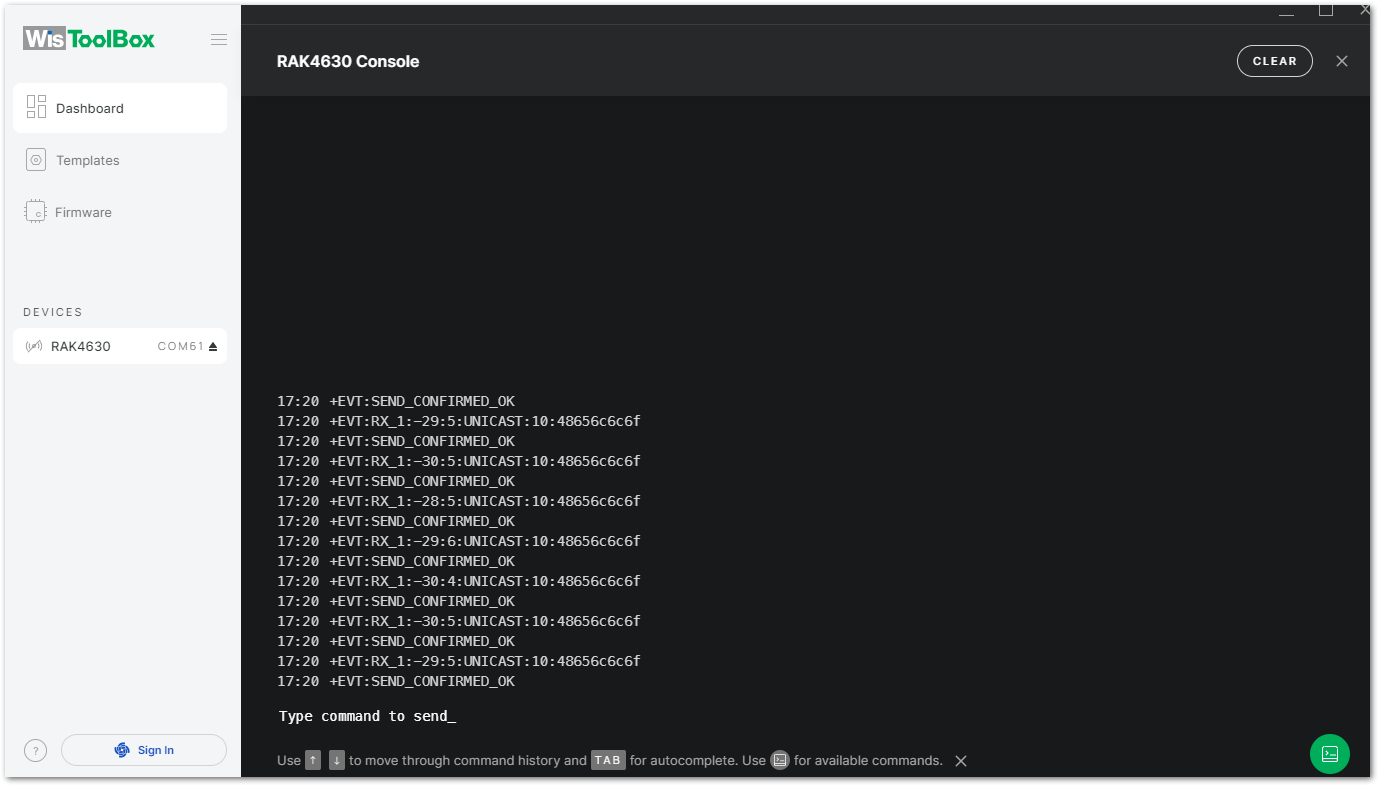

The message you just sent can be seen in the RAK Serial Port tool and it is encoded in HEX format.

📝 NOTE: If the device is configured to work in Class C, it will receive the message immediately after sending. If the node is working in Class A, it will receive the message on the next Uplink.

Use an External MQTT Broker

This section will explain how to configure the gateway to use an external MQTT Broker and how to connect MQTT.fx to it.

📝 NOTE: This section describes how to access the external MQTT by username/password.

Configuring the Gateway and MQTT.fx

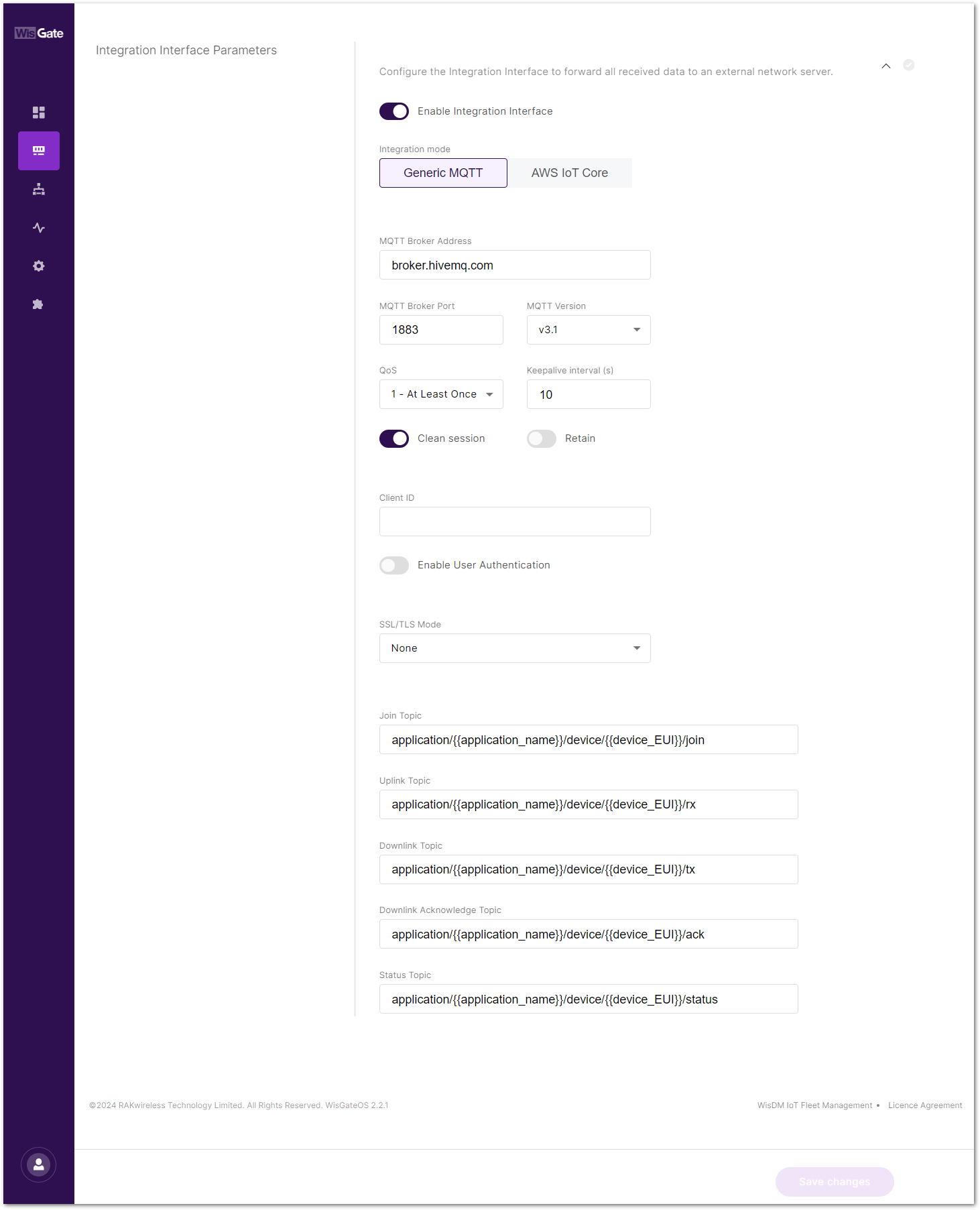

In the left navigation bar of the WisGateOS Web UI, select LoRa® > Configuration > Integration Interface Parameters.

On the Integration Interface Parameters page，set the relevant parameters for application server integration.

If you want to use the external MQTT Broker, you need to configure the following parameters:

MQTT Broker Address：The IP address of the external MQTT Broker.
MQTT Broker Port：The port number of the MQTT server, the default port number is 1883.
Enable User Authentication(optional)：Switch the Enable User Authentication, fill in the Username and Password to access the MQTT server.
- Username：The username to access the MQTT server.
- Password：The password for accessing the MQTT server.

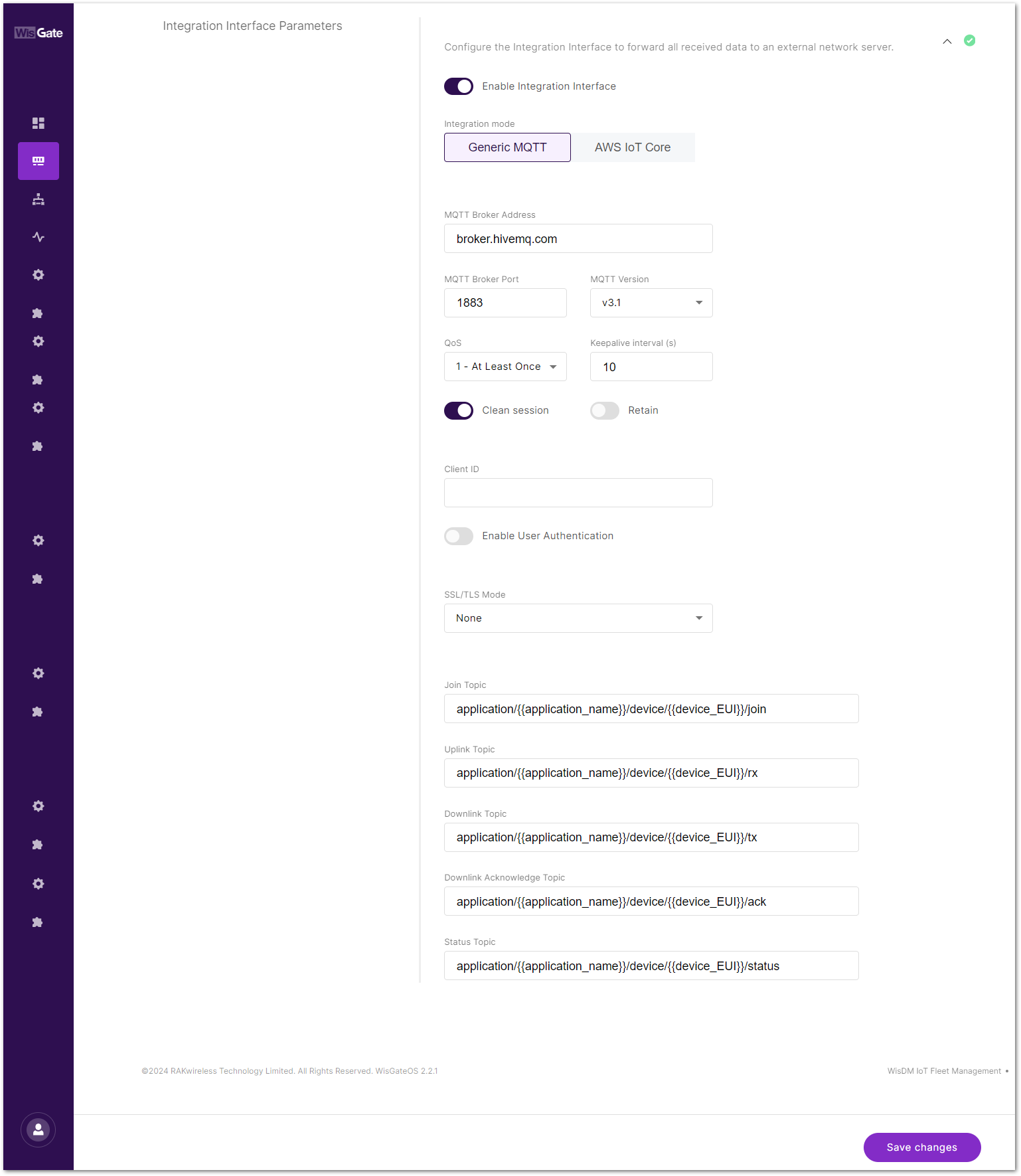

As shown in Figure 15, the external MQTT Broker is used here and the default configuration of MQTT Topic related parameters is maintained.

📝 NOTE: Enable the User Authentication only if the MQTT Broker requires Username and Password for authentication.

Click Save & Apply to save the configuration.

Open the MQTT.fx and click on the Setting icon.

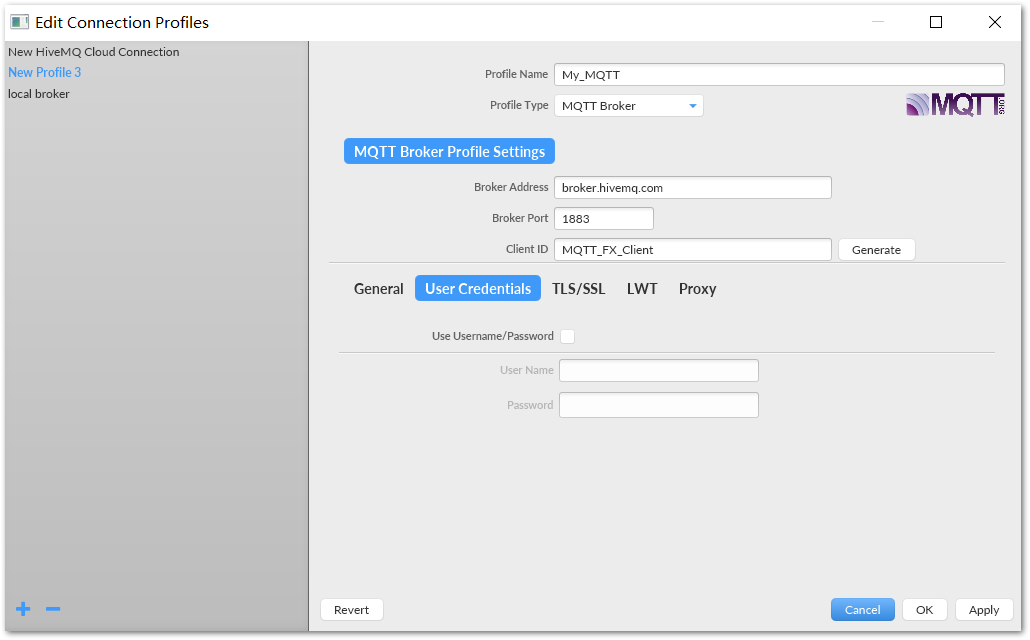

In the Edit Connection Profiles click on the plus icon in the lower-left corner to create a new Profile. Type in Profile name of your choice and the IP of the Broker Address. Click on User Credentials to enter the User Name and Password to access the MQTT server and then click OK.

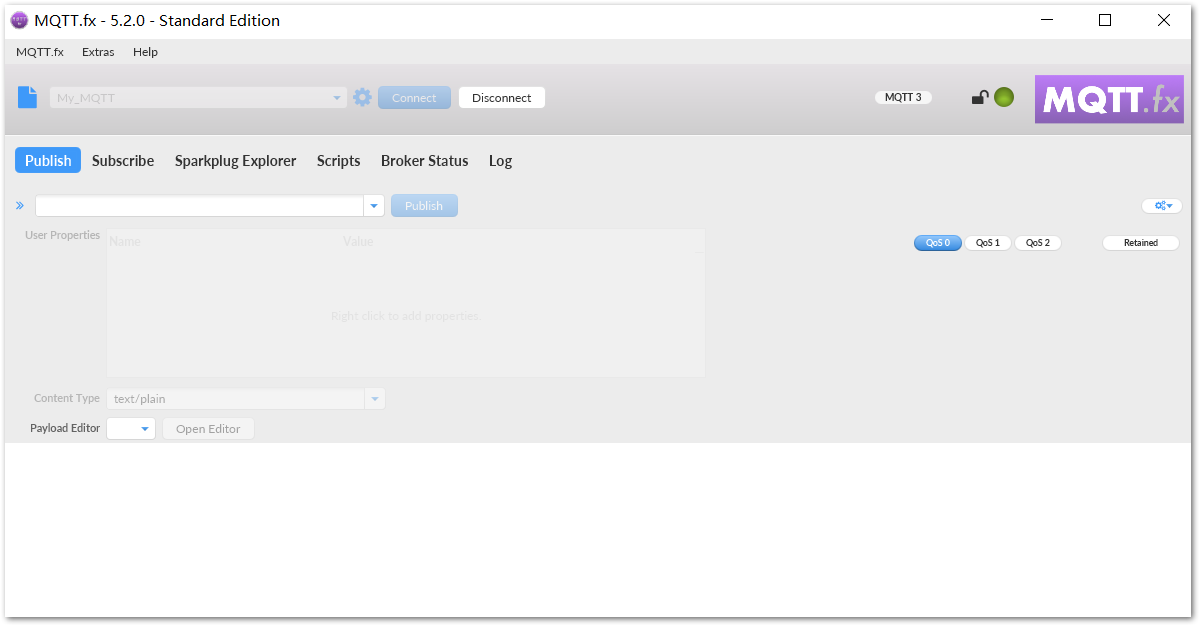

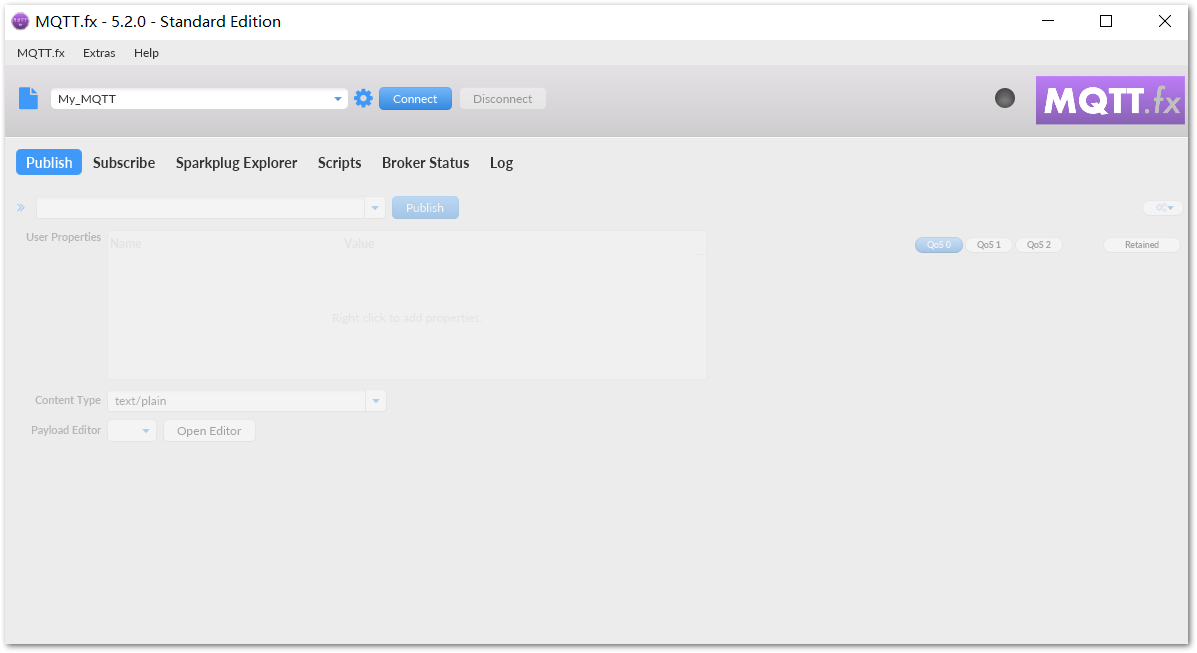

From the drop-down menu (left of the Connect button) at the main window of the MQTT.fx choose the Profile you just created and click Connect to connect to the external MQTT server. The black dot on the far right should turn green, indicating that the connection is successful.

To subscribe or publish data, refer to the corresponding sections from the previous use case: Subscribe to the Topic via MQTT.fx and Send Data to the Node via MQTT.fx.

Format Definition of the Obtained Through MQTT Data

In the previous sections, you were shown how to subscribe to Uplink data and how to send a Downlink to the node. But there are three more types of data:

Join – This is the information received when the node is connected to the network.
Ack – This is the confirmation message that the node sends as a reply after receiving a Downlink.
Status – This is information about the node’s battery level.

Uplink

{
    "adr": true,                            // Whether the node has adaptive data rate enabled
    "applicationID": "1",                    // The ID of the application in which the node is registered
    "applicationName": "mqtt",                // The name of the application
    "data": "SGVsbG8gUkFLV2lyZWxlc3M=",        // The data sent by the node
    "data_encode": "base64",                // Decoding data type
    "devEUI": "ae10fccc25ae10fc",            // The EUI of your device
    "deviceName": "mqtt_test",                // The name of your device
    "fCnt": 1,                                // The frame counter of the message
    "fPort": 1,                                // The port to which the data is send
    "rxInfo": [                                // Information about the gateway, that received the node data
    {
        "gatewayID": "ac1f09fffe0fd50c",    // Gateway’s EUI
        "loRaSNR": 9.2,                        // Signal-to-noise ration of the message
        "location": {                        // GPS information of the gateway
          "altitude": 0,
          "latitude": 0,
          "longitude": 0
           },
        "rssi": -36                            // Received Signal Strength Indicator of the message
    }
    ],
    "timestamp": 1708395729,                // Unix timestamp of received node data
    "txInfo": {
      "dr": 0,                                // Node’s data rate
      "frequency": 868100000                // The frequency used by the node to send data
     }
}

Downlink

{
    "confirmed": true,                        // Show is the message confirmed or not
    "data": "SGVsbG8=",                        // The data sent to the node, encoded in base64 format
    "fPort": 10,                            // The port used for the Downlink message
    "timestamp": 1708396901                    // Unix timestamp of received node data
}

Join

{
    "applicationID": "1",                    // The ID of your application
    "applicationName": "mqtt",                // The name of your application
    "devAddr": "02976c6e",                    // Short address assigned to your device after a successful join
    "devEUI": "ae10fccc25ae10fc",            // The EUI of your device
    "deviceName": "mqtt_test",                // The name of your device
    "timestamp": 1708337717                    // Unix timestamp of received node data
}

Ack

{
    "acknowledged": true,                    // Acknowledgement confirmation
    "applicationID": "1",                    // The ID of the application in which the node is registered
    "applicationName": "mqtt",                // The name of the application
    "devEUI": "ae10fccc25ae10fc",            // The EUI of your device
    "deviceName": "mqtt_test",                // The name of your device
    "fCnt": 4,                                // The frame counter of the message
    "timestamp": 1708397210                    // Unix timestamp of received node data
}

📝 NOTE: The node will reply with Ack only after the server has sent the confirmed type of data to the node. The node may not reply to the Ack immediately. The Ack may be carried in the next uplink data sent by the node.

Status

{
    "applicationID": "1",
    "applicationName": "mqtt",
    "deviceName": "mqtt_test",
    "devEUI": "ae10fccc25ae10fc",
    "battery": 254,                            // The classification of the remaining battery power. 254 means the power supply is fully charged, 1 means battery is about to run out
    "margin": 8,                            // It is the demodulation signal-to-noise ratio of the last successful reception of the DevStatusReq command
    "external PowerSource": false,            // Whether additional power source is presented
    "batteryLevel": 100                        //When "external PowerSource" is true, batteryLevel represents the percentage of battery
}

Example Program

In this section, a python code will be shown, that calls the MQTT subscription node's uploaded data and prints the corresponding content. When receiving Uplink data, the program will send a “Hello RAKwireless” message to the node. Make sure you read the code comments carefully before coding.

📝 NOTE: For this tutorial, the example program is running on a Raspberry Pi with installed Ubuntu and it is working for both practical applications. The needed commands can be run on a terminal via SSH, or directly in the graphical environment of Ubuntu.

For this tutorial, we will use an external MQTT Broker that is installed on a Raspberry Pi. If you want to build an MQTT server on a Raspberry Pi, run the following commands:

sudo apt install mosquitto mosquitto-clients

sudo systemctl enable mosquitto

You can check the status of the MQTT Broker by using the command:

sudo systemctl status mosquitto

Python dependencies need to be installed. This is done with the commands:

sudo apt install python-pip

pip install paho-mqtt

Create a new file where you will put the code, using the command:

sudo nano yourfile.py

📝 NOTE: Make sure when creating the file, you save it as a python file with the correct extension (yourfile.py).

The content of the file is this code (make sure you read the explanations and make the needed changes for your particular case):

#!/usr/bin/env python

import json
import base64
import paho.mqtt.client as mqtt
from datetime import datetime

# Type the IP of your server
mqtt_ip = 'ip of your MQTT server'
mqtt_port = 1883
# Type your username and password. If the private MQTT server does not require username and password, commend the lines
mqtt_username = 'username'
mqtt_password = 'password'
# Replace the "id" with the id of your application and "eui" with your device eui
mqtt_rx_topic = 'application/id/device/eui/rx'

# Convert string to hexadecimal
def str_to_hex(s):
    return r"\x"+r'\x'.join([hex(ord(c)).replace('0x', '') for c in s])
# Once subscribed to the message, call back this method
def on_message(mqttc, obj, msg):
    on_print_rak_node_info(msg.payload)
# Print the subscribed node information
def on_print_node_rx_info(json_rx):
    try:
        devEUI = json_rx['devEUI']
        applicationID = json_rx['applicationID']
        applicationName = json_rx['applicationName']
        deviceName = json_rx['deviceName']
        timestamp = json_rx['timestamp']
        fCnt = json_rx['fCnt']
        fPort = json_rx['fPort']
        data = json_rx['data']
        data_hex = str_to_hex(base64.b64decode(data).decode("latin-1"))
        # Convert the timestamp to local time
        str_local_time = datetime.fromtimestamp(timestamp)
        print('---------------- devEUI:[%s] rxpk info -------------------' % devEUI)
        print('+\t applicationName:\t%s' % applicationName)
        print('+\t applicationID:\t\t%s' % applicationID)
        print('+\t deviceName:\t\t%s' % deviceName)
        print('+\t datetime:\t\t%s' % str_local_time)
        print('+\t fCnt:\t\t\t%d' % fCnt)
        print('+\t fPort:\t\t\t%d' % fPort)
        print('+\t data:\t\t\t%s' % data)
        print('+\t data_hex:\t\t%s' % data_hex)
        print('----------------------------------------------------------')

    except Exception as e:
        print(e)
    finally:
        pass
# After subscribing to the node's data, send the "Hello RAKwireless" string to the node
def on_print_rak_node_info(payload):
    json_str = payload.decode()
    try:
        json_rx = json.loads(json_str)
        on_print_node_rx_info(json_rx)
        dev_eui = json_rx['devEUI']
        app_id = json_rx['applicationID']
# Industrial gateway default tx topic
        tx_topic = 'application/%s/device/%s/tx' % (app_id, dev_eui)
        str_hello = "Hello RAKwireless"
        tx_msg = '{"confirmed":true,"fPort":10,"data":"%s" }' % str(base64.b64encode(str_hello.encode("utf-8")).encode("utf-8"))
        mqttc.publish(tx_topic, tx_msg, qos=0, retain=False)
        print('Send \'Hello RAKwireless\' to node %s' % dev_eui)

    except Exception as e:
        raise e
    finally:
        pass

mqttc = mqtt.Client()
mqttc.on_message = on_message
# If there is no username and password, please comment the following line:
mqttc.username_pw_set(mqtt_username, password=mqtt_password)
# Connect to mqtt broker, the heartbeat time is 60s
mqttc.connect(mqtt_ip, mqtt_port, 60)
mqttc.subscribe(mqtt_rx_topic, 0)
mqttc.loop_forever()

Run the code by typing in the SSH terminal:

python yourfile.py

Updated October 23, 2024 03:31

How To Use the MQTT Broker Like a Pro + Examples

Description

A Brief Introduction to LoRaWAN and MQTT

LoRaWAN

MQTT

The Role of MQTT in the LoRaWAN Networks

Configuring the Built-in Network Server

Use the Built-in MQTT Broker

Create an Uplink Topic

Send Data to the Node via MQTT.fx

Use an External MQTT Broker

Configuring the Gateway and MQTT.fx

Format Definition of the Obtained Through MQTT Data

Uplink

Downlink

Join

Ack

Status

Example Program

<%= previousTitle %>

<%= nextTitle %>

In this article

Categories

Toggle navigation menu

<%= category.name %>

Search

Description

A Brief Introduction to LoRaWAN and MQTT

LoRaWAN

MQTT

The Role of MQTT in the LoRaWAN Networks

Configuring the Built-in Network Server

Use the Built-in MQTT Broker

Create an Uplink Topic

Subscribe to the Topic via MQTT.fx

Send Data to the Node via MQTT.fx

Use an External MQTT Broker

Configuring the Gateway and MQTT.fx

Format Definition of the Obtained Through MQTT Data

Uplink

Downlink

Join

Ack

Status

Example Program

<%= previousTitle %>

<%= nextTitle %>

In this article

Categories

Toggle navigation menu

<%= category.name %>

Categories

Categories
