How To Manage LoRaWAN Downlinks to Configure the Uplink Interval of CO2 Monitoring Device with TTS V3 and Ubidots

Getting Started

• Your choice of WisBlock Core, but in this article, RAK4631-R RUI3 Module was used.

• Your choice of WisBlock Base, but in this article, RAK19001 WisBlock Baseboard was used.
• Your choice of WisBlock Sensors or other modules, but in this article, RAK12037 WisBlock CO2 Sensor Module was used.
• USB Cable
• Li-Ion / LiPo Battery (optional)
• Ubidots Account
• The Things Stack Account
• Arduino IDE

Hardware Setup

This section is about the actual device configuration.

Modules / Sensors Connection Diagram

The RAK12037 WisBlock CO2 Sensor Module can be connected to any IO slot of the RAK19001 WisBlock Baseboard to communicate with the RAK4631-R WisBlock LPWAN Module. Always secure the connection of the WisBlock modules and sensors by using compatible screws.

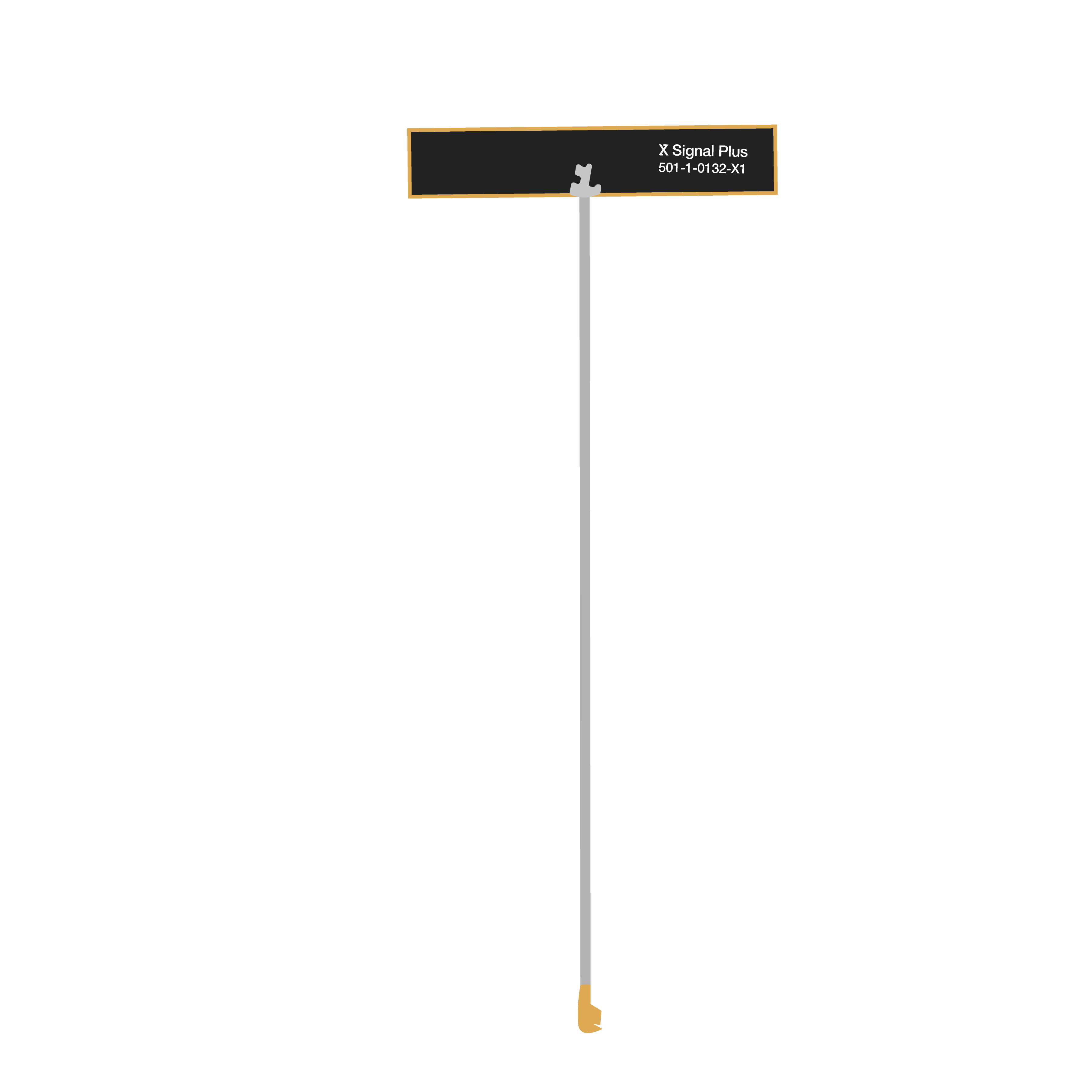

LoRa / BLE Antenna

Another important part of the RAK4631-R module is the antennas.

You need to ensure that the antenna is properly connected to have a good LoRa signal. Do not power the module without an antenna to avoid damage to the RF section of the chip.

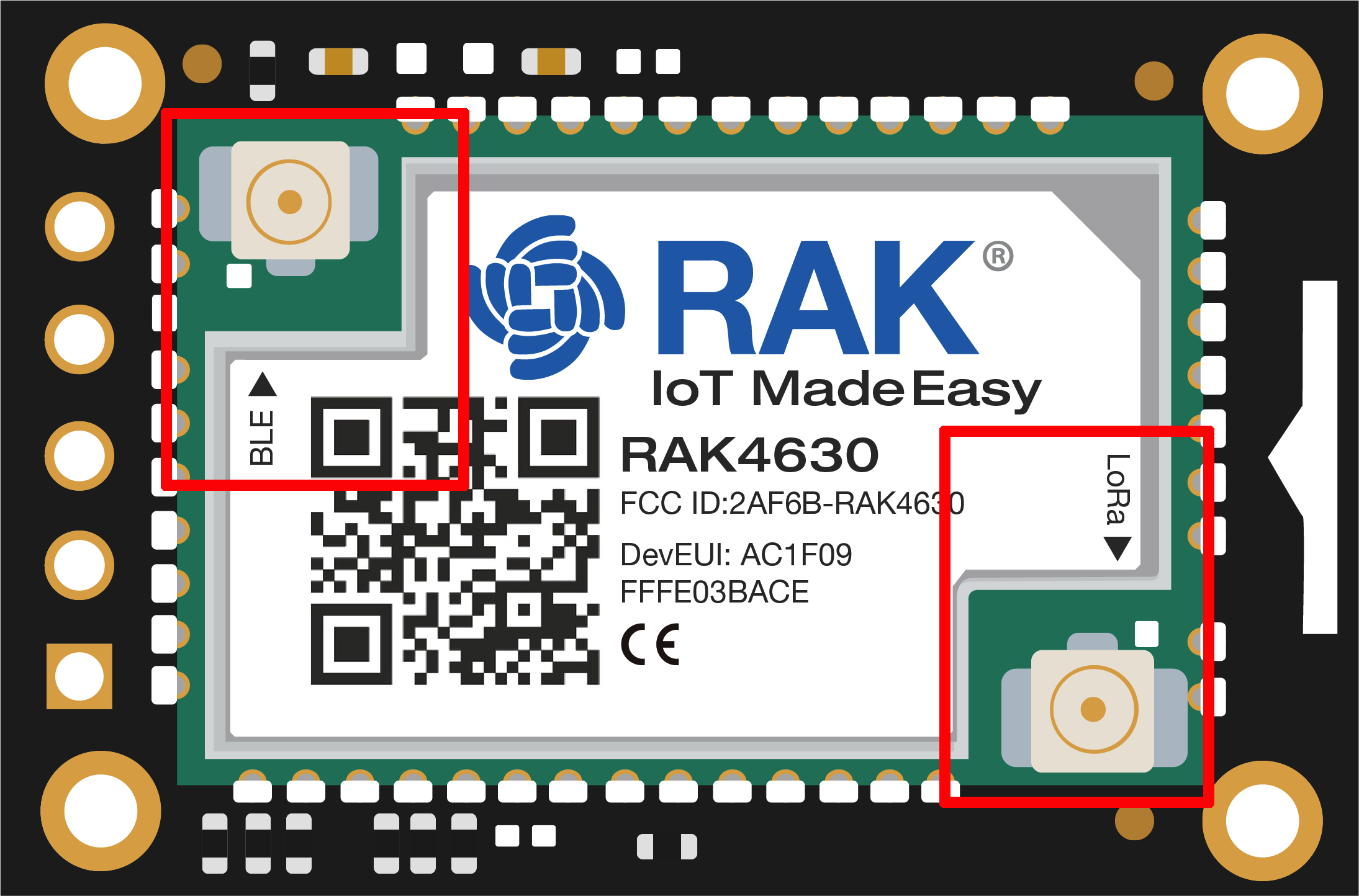

The RAK4631-R has a label on its sticker on where to connect the antennas.

After all this setup, you can now connect the battery (optional) and USB cable to start programming the RAK12037.

Messages Types

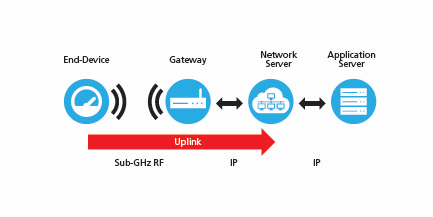

Uplink Messages - Uplink messages are sent by end devices to gateways (uplinks), and gateways pass it on to the network server (The Things Stack), which, in turn, passes it on to the IoT visualization platform (Ubidots).

Downlink Messages - Each downlink message is sent by the network server (The Things Stack) through gateways down to the end devices (downlinks). This also includes some messages or controls initiated by the IoT platform (Ubidots) to end devices.

End devices in a LoRaWAN network come in three (3) classes: Class A, Class B, and Class C. While end devices can always send uplinks at will, the device-configured class of operation determines when it can receive downlinks. The class also determines the device energy efficiency. The more energy efficient a device, the longer the battery life. To know more about classes, please refer to LoRaWAN Device Classes.

Setting Up the Device to TTS V3 Network Server

Log in to your The Things Stack account. On the Overview section, click Go to applications then + Create application.
NOTE: Your newly created account must be within an active gateway that is registered and connected to The Things Network. Select the appropriate Cluster to access the console.

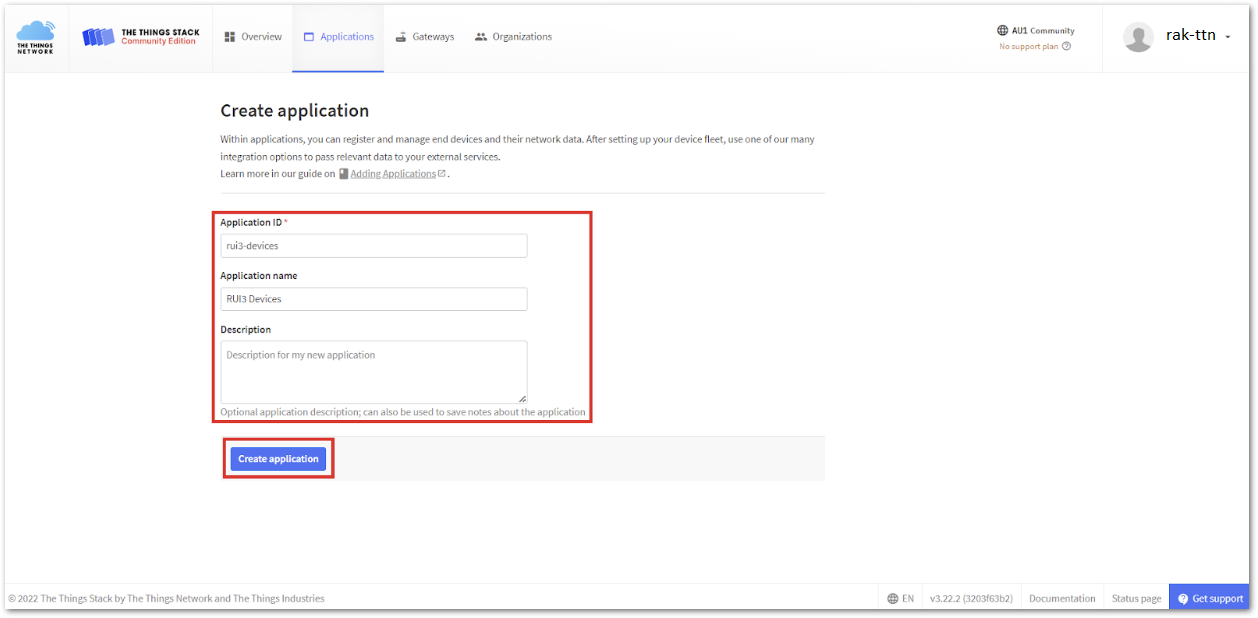

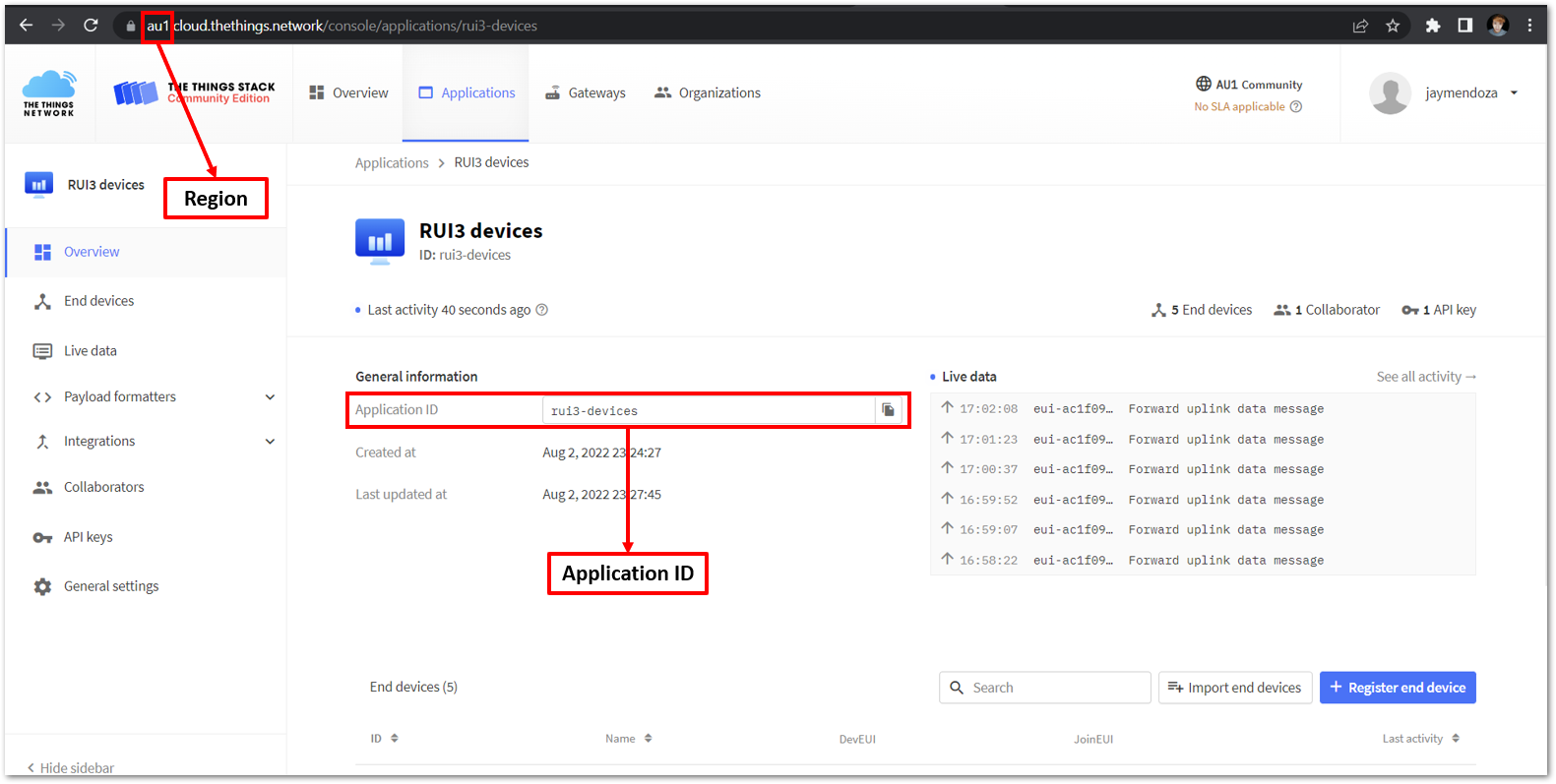

Fill in the Application ID and other specific details or necessary information about your application, then click Create application to have your application registered.

Next, click + Register end device.

Choose the following configurations in adding the end devices. To learn more about which frequency plan and parameters to use in your country, please see LoRaWAN Regional Parameters.

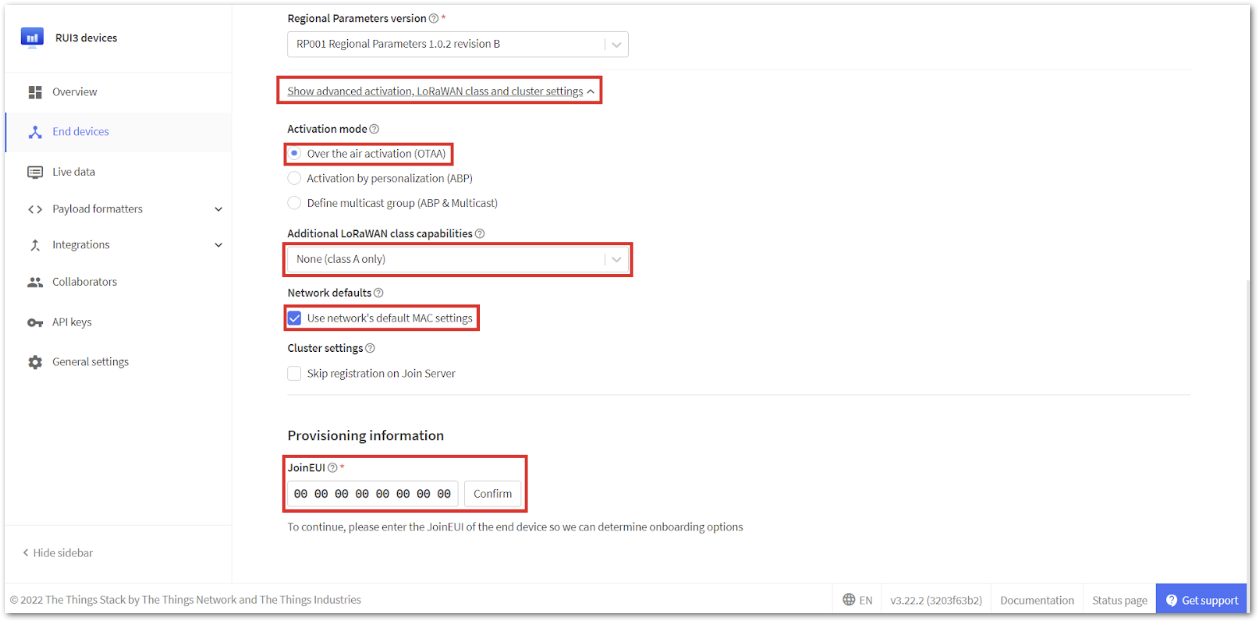

Click Show advanced activation, LoRaWAN class and cluster settings.

There are two (2) options for registering end devices depending on the activation mode you selected:

• Over-The-Air-Activation (OTAA)
• Activation-By-Personalization (ABP)

For now, choose OTAA for the activation mode and CLASS A for LoRaWAN class.

The JoinEUI is also called the AppEUI, a 64-bit extended unique identifier used to identify the Join Server during activation. You may input any hex values, but it is okay to fill it out with all-zeros.

Then click Confirm.

Then input a unique end device’s EUIs and Keys (DevEUI and AppKey).

For DevEUI, you may input any hex value, but you may also check your RAK4631-R module to see if there’s a QR sticker attached to the module that you can scan and then use as your DevEUI. Otherwise, click Generate to generate a random unique identifier.

For AppKey, also click Generate to generate a random unique identifier.

For End device ID, you may input a different unique value if you need to. Otherwise, It will automatically prefill this value using the previously entered DevEUI.

Then click Register end device.

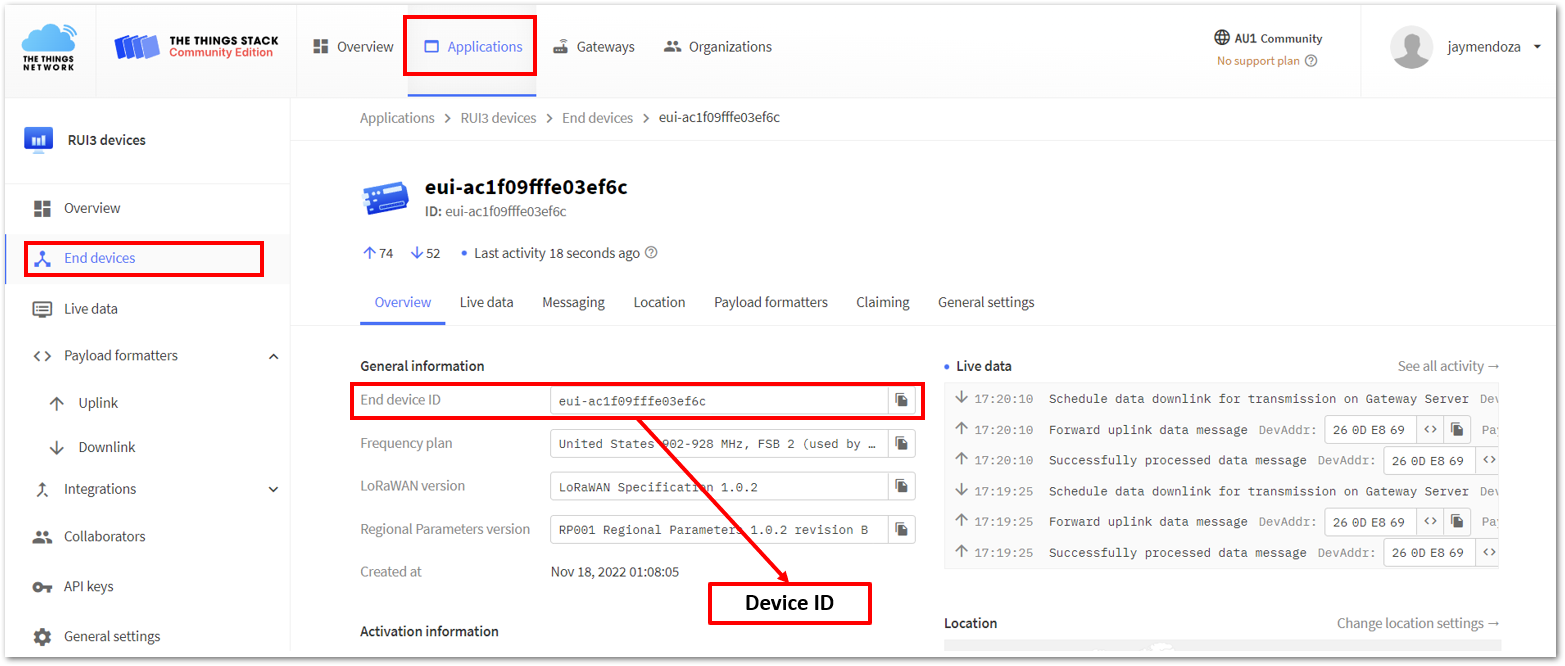

You should now be able to see your newly created device on The Things Stack console. Take note of the keys in the Activation information section, such as the AppEUI, DevEUI, and AppKey, as they are needed for the next part of this guide.

Example Code Configuration for Uplink

Install the RAKwireless Arduino BSP Index for WisBlock by using the package_rakwireless.com_rui_index.json board installation package for RUI3 support in Arduino IDE. The WisBlock Core should now be available on the Arduino IDE.

Select the RAK4631-R WisBlock Core.

Copy the following example code into your Arduino IDE.

#include <Wire.h>
#include "SparkFun_SCD30_Arduino_Library.h"

#define OTAA_PERIOD   (20000)
/*************************************

   LoRaWAN band setting:
     RAK_REGION_EU433
     RAK_REGION_CN470
     RAK_REGION_RU864
     RAK_REGION_IN865
     RAK_REGION_EU868
     RAK_REGION_US915
     RAK_REGION_AU915
     RAK_REGION_KR920
     RAK_REGION_AS923-1
     RAK_REGION_AS923-2
     RAK_REGION_AS923-3
     RAK_REGION_AS923-4

 *************************************/
#define OTAA_BAND     (RAK_REGION_EU868)
#define OTAA_DEVEUI   {0xAC, 0x3F, 0x29, 0xFF, 0xFE, 0x23, 0xEF, 0x9C}
#define OTAA_APPEUI   {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}
#define OTAA_APPKEY   {0xB8, 0x27, 0xEB, 0xFF, 0xFE, 0x39, 0x00, 0x00, 0x42, 0x34, 0x6E, 0x56, 0xBD, 0xC7, 0x35, 0x43}

SCD30 airSensor;

/** Packet buffer for sending */
uint8_t collected_data[64] = { 0 };

void recvCallback(SERVICE_LORA_RECEIVE_T * data)
{
  if (data->BufferSize > 0) {
    Serial.println("Something received!");
    for (int i = 0; i < data->BufferSize; i++) {
      Serial.printf("%x", data->Buffer[i]);
    }
    Serial.print("\r\n");
  }
}

void joinCallback(int32_t status)
{
  Serial.printf("Join status: %d\r\n", status);
}

void sendCallback(int32_t status)
{
  if (status == 0) {
    Serial.println("Successfully sent");
  } else {
    Serial.println("Sending failed");
  }
}

void setup()
{
  Serial.begin(115200, RAK_AT_MODE);

  Serial.println("RAKwireless LoRaWan OTAA Example");
  Serial.println("------------------------------------------------------");

  pinMode(WB_IO2, OUTPUT);
  digitalWrite(WB_IO2, HIGH);

  // Initialize Serial for debug output
  time_t timeout = millis();
  Serial.begin(115200);
  while (!Serial)
  {
    if ((millis() - timeout) < 5000)
    {
      delay(100);
    }
    else
    {
      break;
    }
  }

  Serial.println("SCD30 Automatic self-calibration Example.");

  Wire.begin();

  //Start sensor using the Wire port and enable the auto-calibration (ASC)
  if (airSensor.begin(Wire, true) == false)
  {
    Serial.println("Air sensor not detected. Please check wiring. Freezing...");
    while (1)
    {
      delay(10);
    }
  }

  Serial.print("Automatic self-calibration set to：");
  if (airSensor.getAutoSelfCalibration() == true)
    Serial.println("true");
  else
    Serial.println("false");

  // OTAA Device EUI MSB first
  uint8_t node_device_eui[8] = OTAA_DEVEUI;
  // OTAA Application EUI MSB first
  uint8_t node_app_eui[8] = OTAA_APPEUI;
  // OTAA Application Key MSB first
  uint8_t node_app_key[16] = OTAA_APPKEY;

  if (!api.lorawan.appeui.set(node_app_eui, 8)) {
    Serial.printf("LoRaWan OTAA - set application EUI is incorrect! \r\n");
    return;
  }
  if (!api.lorawan.appkey.set(node_app_key, 16)) {
    Serial.printf("LoRaWan OTAA - set application key is incorrect! \r\n");
    return;
  }
  if (!api.lorawan.deui.set(node_device_eui, 8)) {
    Serial.printf("LoRaWan OTAA - set device EUI is incorrect! \r\n");
    return;
  }

  if (!api.lorawan.band.set(OTAA_BAND)) {
    Serial.printf("LoRaWan OTAA - set band is incorrect! \r\n");
    return;
  }
  if (!api.lorawan.deviceClass.set(RAK_LORA_CLASS_A)) {
    Serial.printf("LoRaWan OTAA - set device class is incorrect! \r\n");
    return;
  }
  if (!api.lorawan.njm.set(RAK_LORA_OTAA))	// Set the network join mode to OTAA
  {
    Serial.
	printf("LoRaWan OTAA - set network join mode is incorrect! \r\n");
    return;
  }
  if (!api.lorawan.join())	// Join to Gateway
  {
    Serial.printf("LoRaWan OTAA - join fail! \r\n");
    return;
  }

  /** Wait for Join success */
  while (api.lorawan.njs.get() == 0) {
    Serial.print("Wait for LoRaWAN join...");
    api.lorawan.join();
    delay(10000);
  }

  if (!api.lorawan.adr.set(true)) {
    Serial.printf
	("LoRaWan OTAA - set adaptive data rate is incorrect! \r\n");
    return;
  }
  if (!api.lorawan.rety.set(1)) {
    Serial.printf("LoRaWan OTAA - set retry times is incorrect! \r\n");
    return;
  }
  if (!api.lorawan.cfm.set(1)) {
    Serial.printf("LoRaWan OTAA - set confirm mode is incorrect! \r\n");
    return;
  }

  /** Check LoRaWan Status*/
  Serial.printf("Duty cycle is %s\r\n", api.lorawan.dcs.get()? "ON" : "OFF");	// Check Duty Cycle status
  Serial.printf("Packet is %s\r\n", api.lorawan.cfm.get()? "CONFIRMED" : "UNCONFIRMED");	// Check Confirm status
  uint8_t assigned_dev_addr[4] = { 0 };
  api.lorawan.daddr.get(assigned_dev_addr, 4);
  Serial.printf("Device Address is %02X%02X%02X%02X\r\n", assigned_dev_addr[0], assigned_dev_addr[1], assigned_dev_addr[2], assigned_dev_addr[3]);	// Check Device Address
  Serial.printf("Uplink period is %ums\r\n", OTAA_PERIOD);
  Serial.println("");
  api.lorawan.registerRecvCallback(recvCallback);
  api.lorawan.registerJoinCallback(joinCallback);
  api.lorawan.registerSendCallback(sendCallback);
}

void uplink_routine()
{
  /** Payload of Uplink */
  uint8_t data_len = 0;

  float temp = airSensor.getTemperature();
  float hum = airSensor.getHumidity();

  uint16_t co2_data = (airSensor.getCO2());
  uint16_t temperature_data = (temp) * 100;
  uint16_t humidity_data = (hum) * 100;

  collected_data[data_len++] = co2_data >> 8;
  collected_data[data_len++] = co2_data;
  collected_data[data_len++] = temperature_data >> 8;
  collected_data[data_len++] = temperature_data;
  collected_data[data_len++] = humidity_data >> 8;
  collected_data[data_len++] = humidity_data;

  Serial.println("Data Packet:");
  for (int i = 0; i < data_len; i++) {
    Serial.printf("0x%02X ", collected_data[i]);
  }
    Serial.print("co2(ppm):");
    Serial.print(co2_data);

    Serial.print(" temp(C):");
    Serial.print(temp, 2);

    Serial.print(" humidity(%):");
    Serial.print(hum, 2);

  Serial.println("");

  /** Send the data package */
  if (api.lorawan.send(data_len, (uint8_t *) & collected_data, 2, true, 1)) {
    Serial.println("Sending is requested");
  } else {
    Serial.println("Sending failed");
  }
}

void loop()
{
  static uint64_t last = 0;
  static uint64_t elapsed;

  if (airSensor.dataAvailable())
  {
    if ((elapsed = millis() - last) > OTAA_PERIOD) {
      uplink_routine();
      last = millis();
    }
  }
  else
    Serial.println("Waiting for new data");
  //Serial.printf("Try sleep %ums..", OTAA_PERIOD);
  api.system.sleep.all(OTAA_PERIOD);
  //Serial.println("Wakeup..");
}

Once the example code is open, install the SparkFun_SCD30 library for the CO2 sensor module.

Configuring LoRaWAN

Before uploading the Arduino code, there are configurations that you need to set up in the example code to ensure that the device can join a LoRaWAN network server.

The steps below will explain the default settings and how to configure them:

Set up the LoRa region.

#define OTAA_BAND   (RAK_REGION_EU868)

You can change this region that is applicable to you, such as:

• RAK_REGION_EU433
• RAK_REGION_CN470
• RAK_REGION_RU864
• RAK_REGION_IN865
• RAK_REGION_EU868
• RAK_REGION_US915
• RAK_REGION_AU915
• RAK_REGION_KR920
• RAK_REGION_AS923-1
• RAK_REGION_AS923-2
• RAK_REGION_AS923-3
• RAK_REGION_AS923-4

Set up the EUIs and KEY. Get these parameters from the Setting Up the Device to TTS V3 Network Server section of this guide. The EUI and KEY must match those configured in the TTS V3 application. Otherwise, your device will not be able to connect to the TTS V3 server. In this application, the device is activated via OTAA, so you need to configure the DevEUI, AppEUI, and AppKey.

#define OTAA_DEVEUI   {0xAC, 0x3F, 0x29, 0xFF, 0xFE, 0x23, 0xEF, 0x9C}
#define OTAA_APPEUI   {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}
#define OTAA_APPKEY   {0xB8, 0x27, 0xEB, 0xFF, 0xFE, 0x39, 0x00, 0x00, 0x42, 0x34, 0x6E, 0x56, 0xBD, 0xC7, 0x35, 0x43}

Set up an uplink period.

The default is 20000 ms or 20 seconds.

#define OTAA_PERIOD   (20000)

LoRaWAN Payload

• This is the setup on the void joinCallback(int32_t status) function. This will check the status if your device has been successfully connected or not connected to the TTS V3.

void joinCallback(int32_t status)
{
  Serial.printf("Join status: %d\r\n", status);
}

• This is the setup on the void sendCallback(int32_t status) function. This will check the status if the data from the sensor has been successfully sent or failed to the TTS V3.

void sendCallback(int32_t status)
{
  if (status == 0) {
    Serial.println("Successfully sent");
  } else {
    Serial.println("Sending failed");
  }
}

• This is the setup on the void uplink_routine() function. This will gather the data from the sensor and package them in a LoRaWAN payload.

void uplink_routine()
{
  /** Payload of Uplink */
  uint8_t data_len = 0;

  float temp = airSensor.getTemperature();
  float hum = airSensor.getHumidity();

  uint16_t co2_data = (airSensor.getCO2());
  uint16_t temperature_data = (temp) * 100;
  uint16_t humidity_data = (hum) * 100;

  collected_data[data_len++] = co2_data >> 8;
  collected_data[data_len++] = co2_data;
  collected_data[data_len++] = temperature_data >> 8;
  collected_data[data_len++] = temperature_data;
  collected_data[data_len++] = humidity_data >> 8;
  collected_data[data_len++] = humidity_data;

  Serial.println("Data Packet:");
  for (int i = 0; i < data_len; i++) {
    Serial.printf("0x%02X ", collected_data[i]);
  }
    Serial.println();

    Serial.print("co2(ppm):");
    Serial.print(co2_data);

    Serial.print(" temp(C):");
    Serial.print(temp, 2);

    Serial.print(" humidity(%):");
    Serial.print(hum, 2);

  Serial.println("");

  /** Send the data package */
  if (api.lorawan.send(data_len, (uint8_t *) & collected_data, 2, true, 1)) {
    Serial.println("Sending is requested");
  } else {
    Serial.println("Sending failed");
  }
}

Data Format

• CO₂ is transmitted as two (2) bytes. For example, 926 ppm, will be sent as 0x03 0x9E.
• Temperature is sent as two (2) bytes, enlarged 100 times for accuracy. For example, 30.79° C times 100 is 3079 and will be sent as 0x0C 0x07.
• Humidity is sent as two (2) bytes, enlarged 100 times for accuracy. For example, 75.47% times 100 is 7547, which will be sent as 0x1D 0x7B.

Uploading the Arduino Code

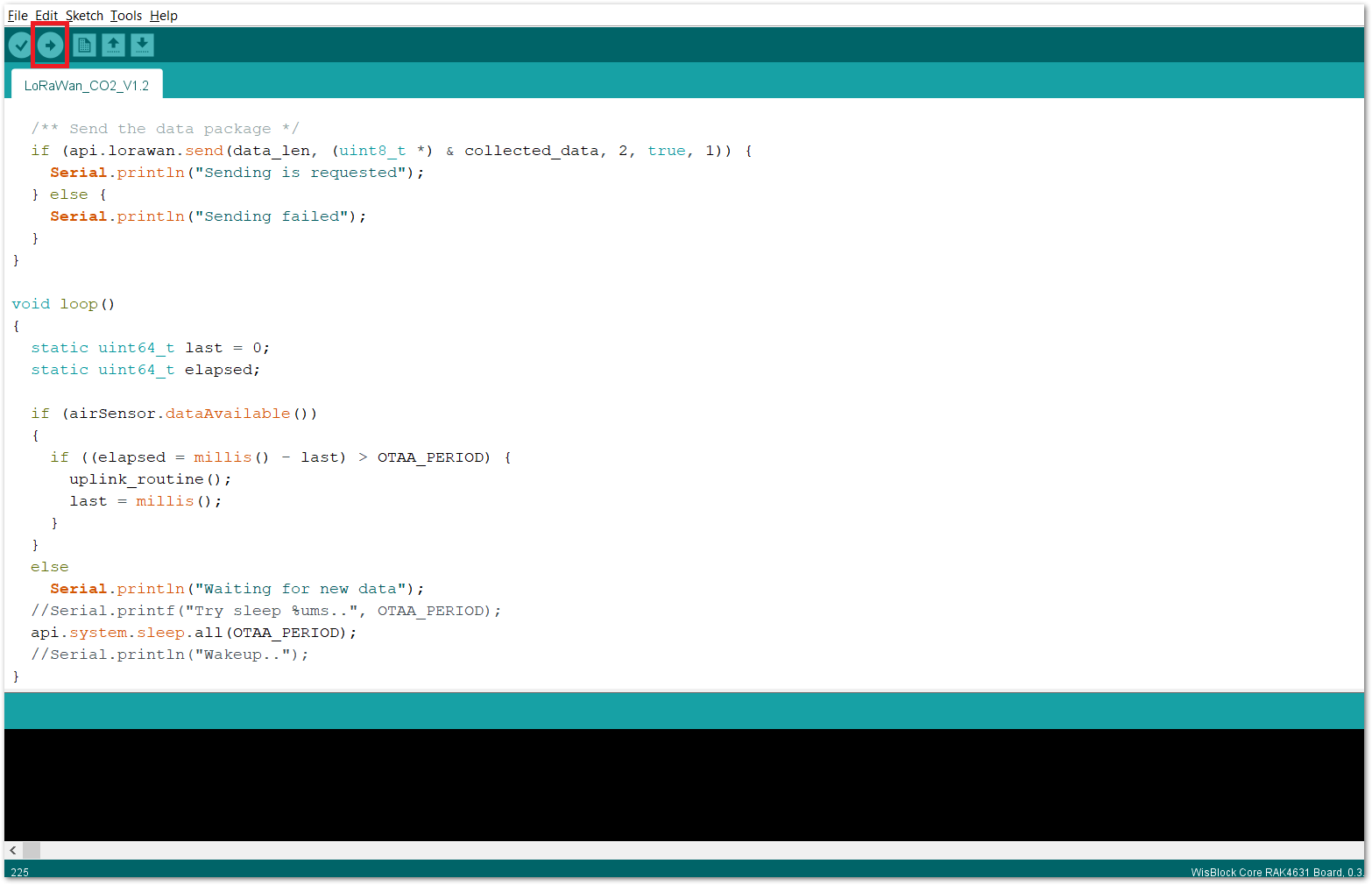

After a successful installation of the library and configuration of the LoRaWAN Network Server setup, you can now select the right serial port and upload the code.

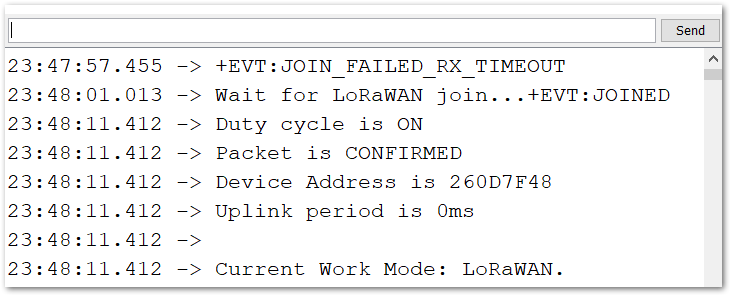

When you have successfully uploaded the example sketch, open the serial monitor of the Arduino IDE to see the sensor's reading logs. If you see the logs, as shown below, then your device is properly sending uplink messages.

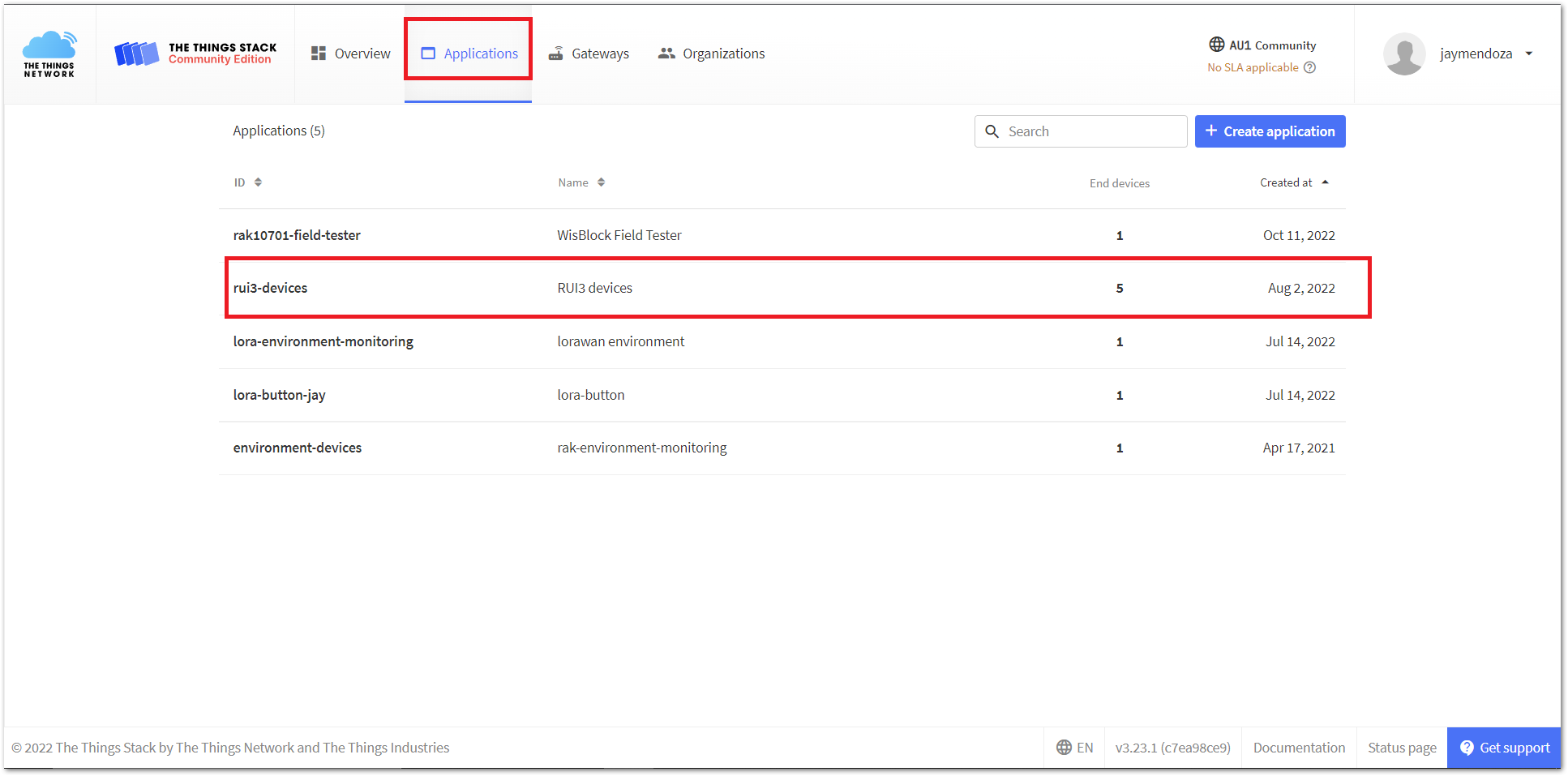

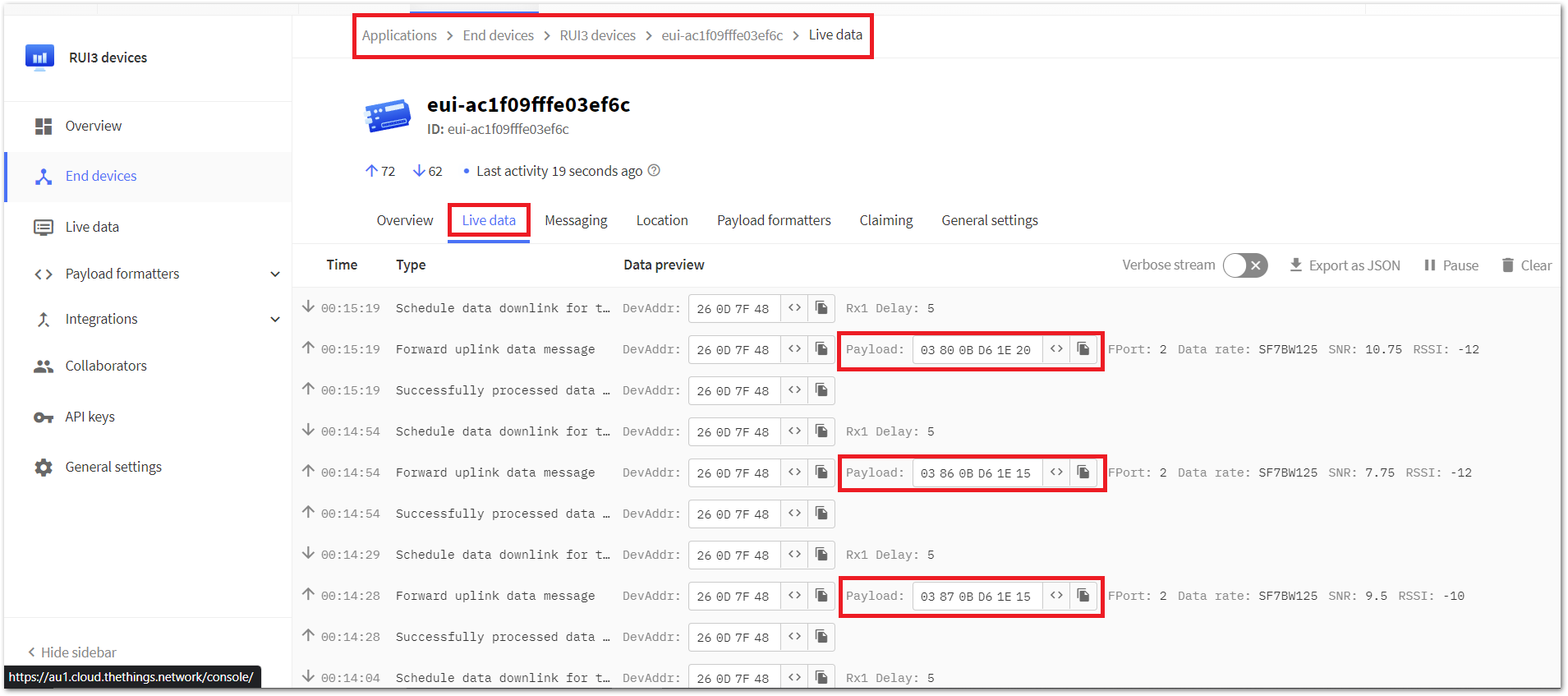

Then check again your The Things Stack account and go to Applications > <name of your application> > <name of your end device> > Live Data. Wait for the uplink payload messages, which are updated every 20 seconds.

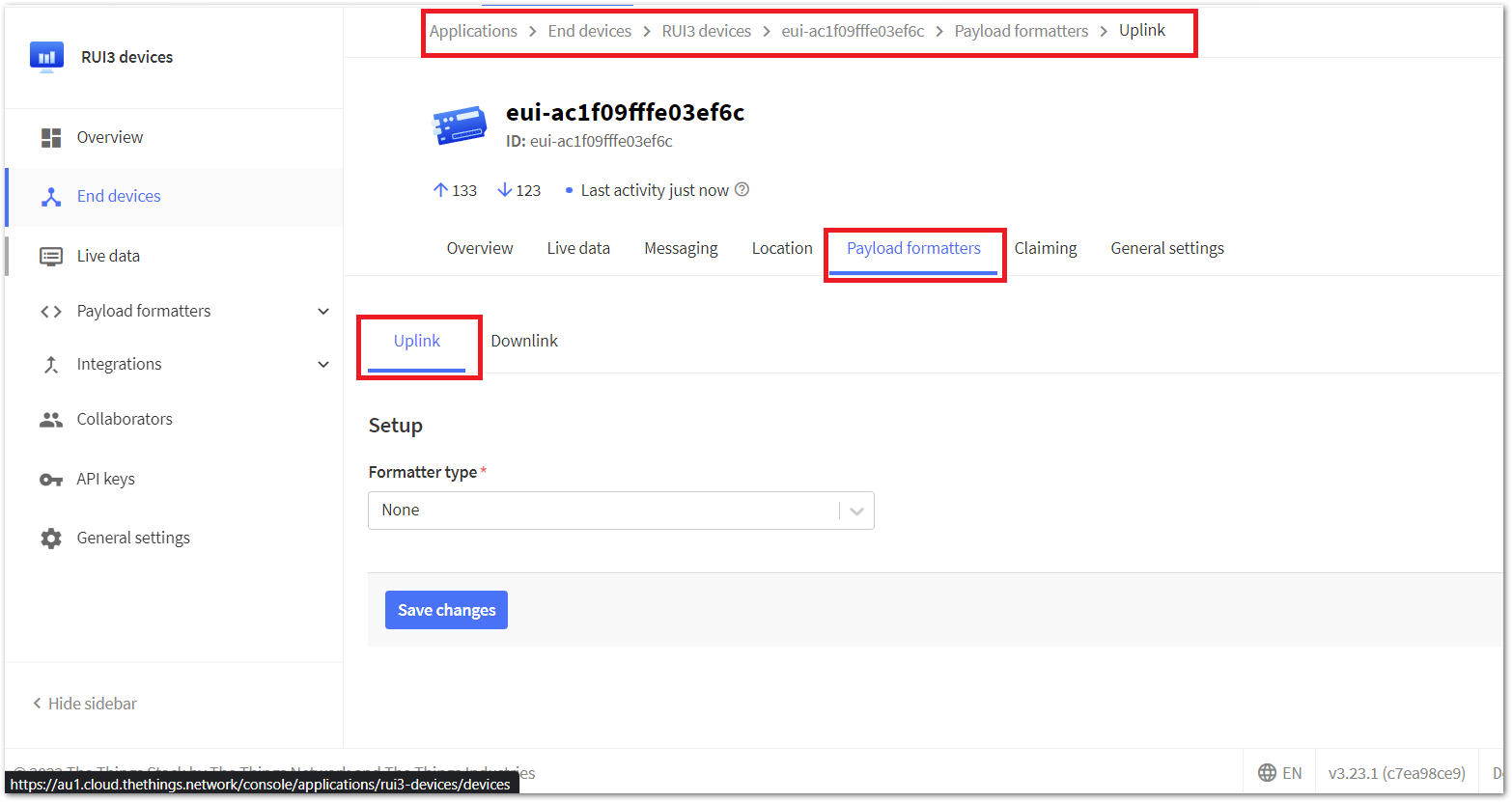

Payload Format

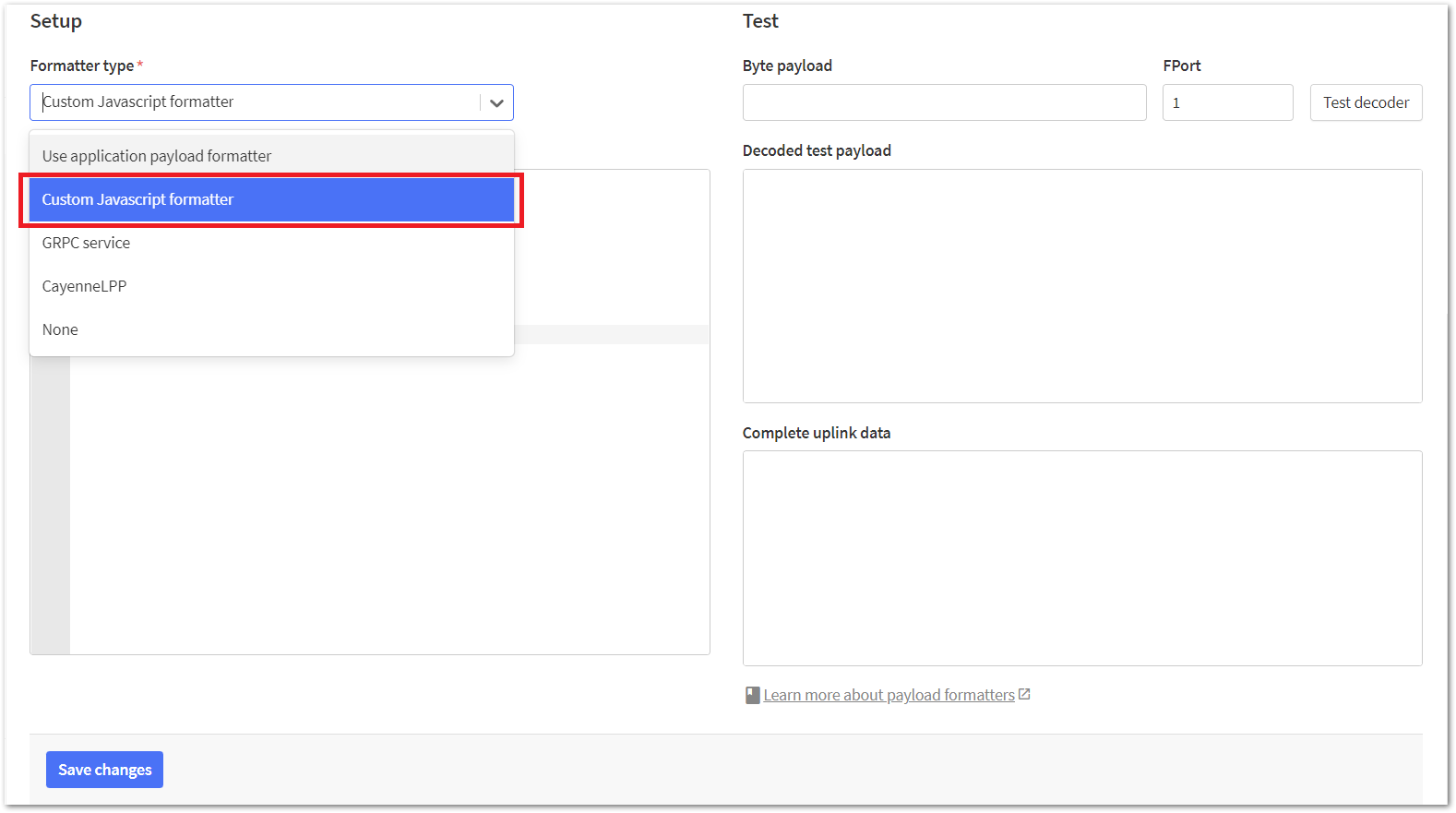

Payload formatters allow you to process data going to and from end devices. This is useful for converting payloads to human-readable fields, or for doing any other kind of data conversion on uplinks and downlinks.

g_solution_data.addConcentration(LPP_CHANNEL_CO2_2, co2_data);
g_solution_data.addTemperature(LPP_CHANNEL_CO2_Temp_2, temp);
g_solution_data.addRelativeHumidity(LPP_CHANNEL_CO2_HUMID_2, hum);

On your The Things Stack account, go to Applications > <name of your application> > <name of your end device> > Payload formatters > Uplink.

Choose the Custom Javascript formatter as the Formatter type.

Copy this Decoder code, paste it inside the Formatter code, and then click Save Changes.

function Decoder(bytes, port)
{
  var decoded = {};

  if (port === 2)
  {
      co2_data = (bytes[0] << 8) | (bytes[1]);
      decoded.co2 = co2_data;
      temperature_data= (bytes[2] << 8) | (bytes[3]);
      decoded.temperature = temperature_data/ 100;
      humidity_data= (bytes[4] << 8) | (bytes[5]);
      decoded.humidity = humidity_data/ 100;
      return decoded;
  }
}

After saving, go to Applications > <name of your application> > <name of your end device> > Live Data. Wait for the uplink data messages again, and you'll be able to see that the payload is already decoded into human-readable data.

Connect TTS V3 to Ubidots Using Plugins Webhook Integration

There is a pre-built integration, which allows users to easily forward sensor data from The Things Stack network server to Ubidots, using Plugins.

You have to create an account first in Ubidots if you don't have one yet.

To create a TTS Plugin in your Ubidots account, go to the Devices tab, click on Plugins, then click the + icon to create a new Plugin. Search for The Things Stack and click on it.

The plugin instructions will appear. Fill out the needed parameters, then click on the Next icon.

Ubidots device type: A device type will be created and linked to this plugin. It allows you to make batch changes to all of the devices that receive data through this plugin.
Ubidots token: Select the Ubidots token you'd like to use for this plugin. We recommend creating a new token dedicated to this plugin using this guide.

Add a name and description for your plugin.

Finish the process and a new plugin will appear in the Plugins list:

Click on the newly-created TTS Plugin, click the Decoder tab, and copy the HTTPs Endpoint URL. The structure of the URL is as follows:

https://dataplugin.ubidots.com/api/web-hook/<PLUGIN-ID>

Finally, go to your The Things Stack account, click on the desired Application then on Integrations > Webhooks, then click on + Add webhook and choose Ubidots.

Fill out these fields:

• Webhook ID: Pick a name for your webhook.
• Plugin ID: Unique identifier (<PLUGIN-ID>) found at the end of your plugin HTTPs Endpoint URL. The one that you copied.
• Ubidots Token: Token used to authenticate Ubidots API requests. This is the token previously created.

Finally, the webhook should look something like this:

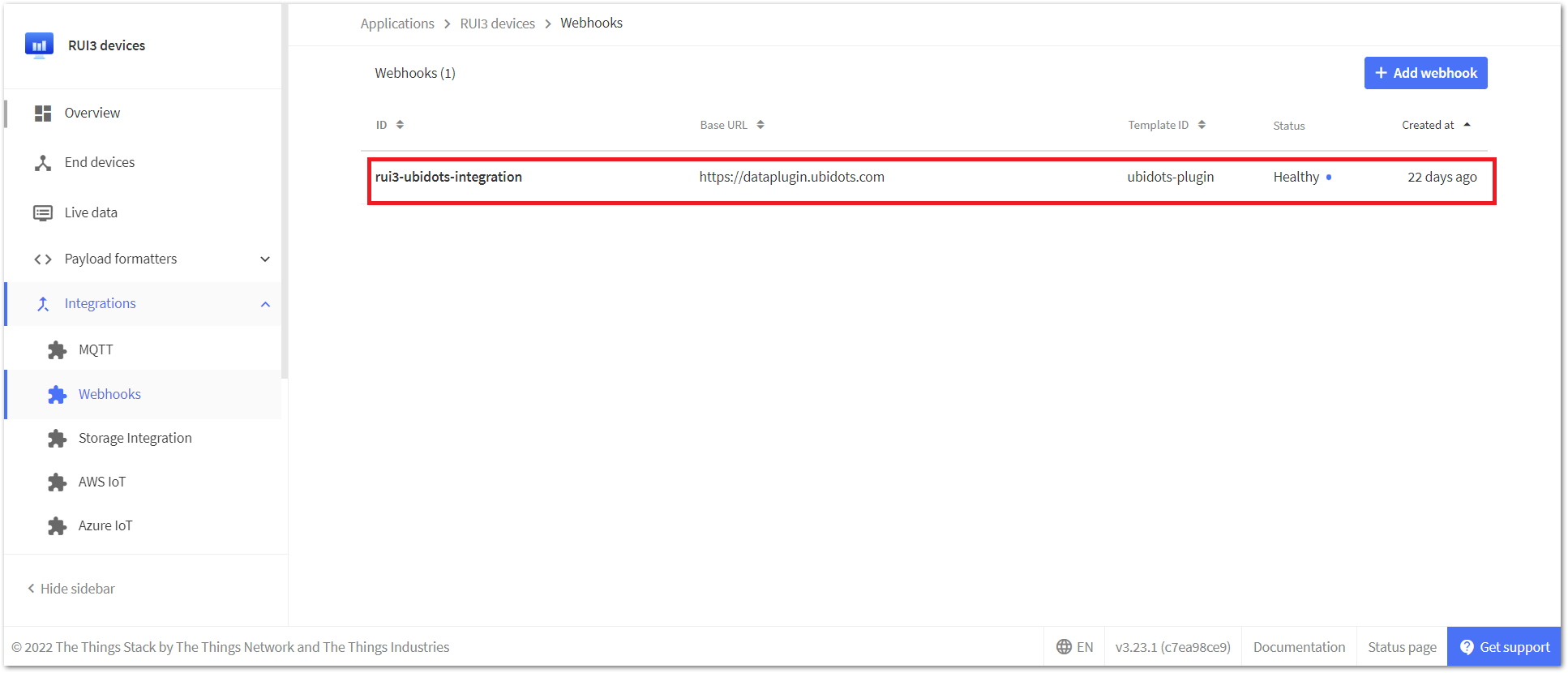

After creating your webhook, it will appear on your TTS V3 account.

Decoding Payloads

Go to your Ubidots account. After creating a TTS Plugin, click on it and you will see a Decoder tab. Scroll-down and you will see it contains a Decoding Function that you can edit at will, in order to decode your data frames.

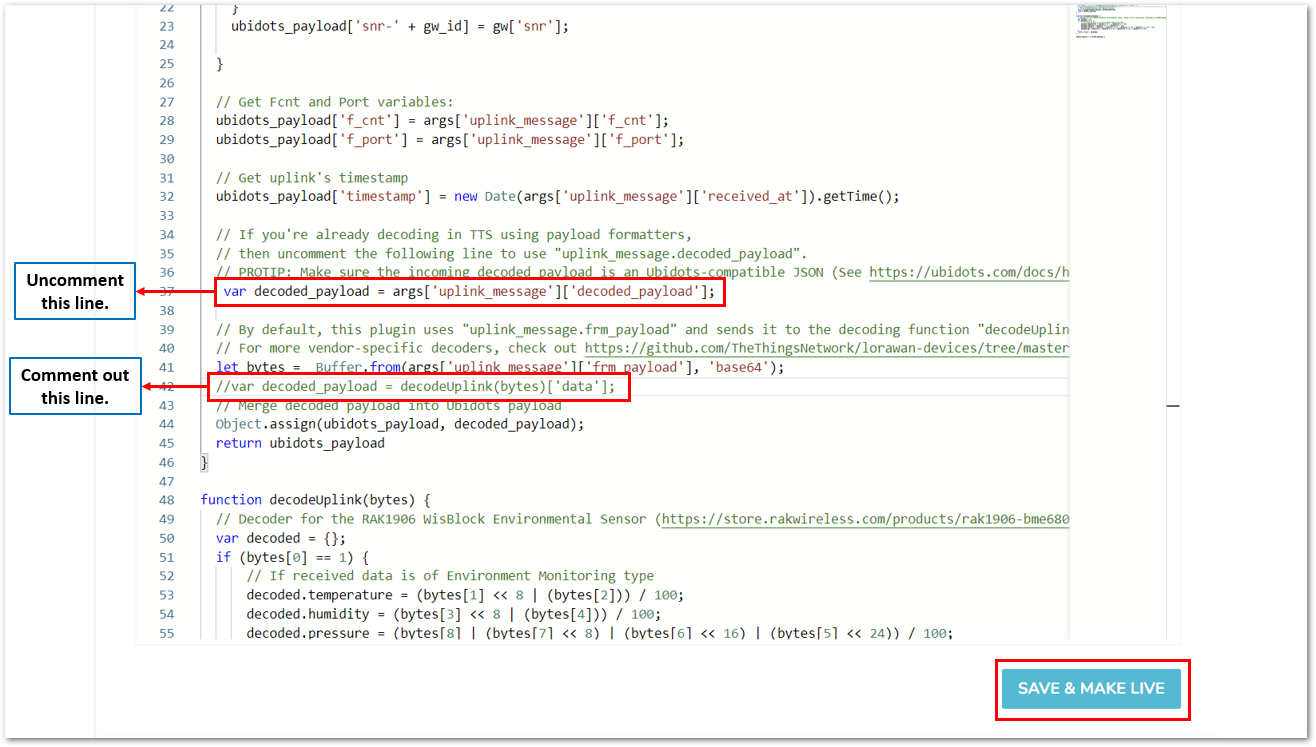

Inside the Decoding Function, you have to uncomment line 37 because we are already decoding in TTS V3 using payload formatters. Then comment out line 42. Finally, click SAVE & MAKE LIVE.

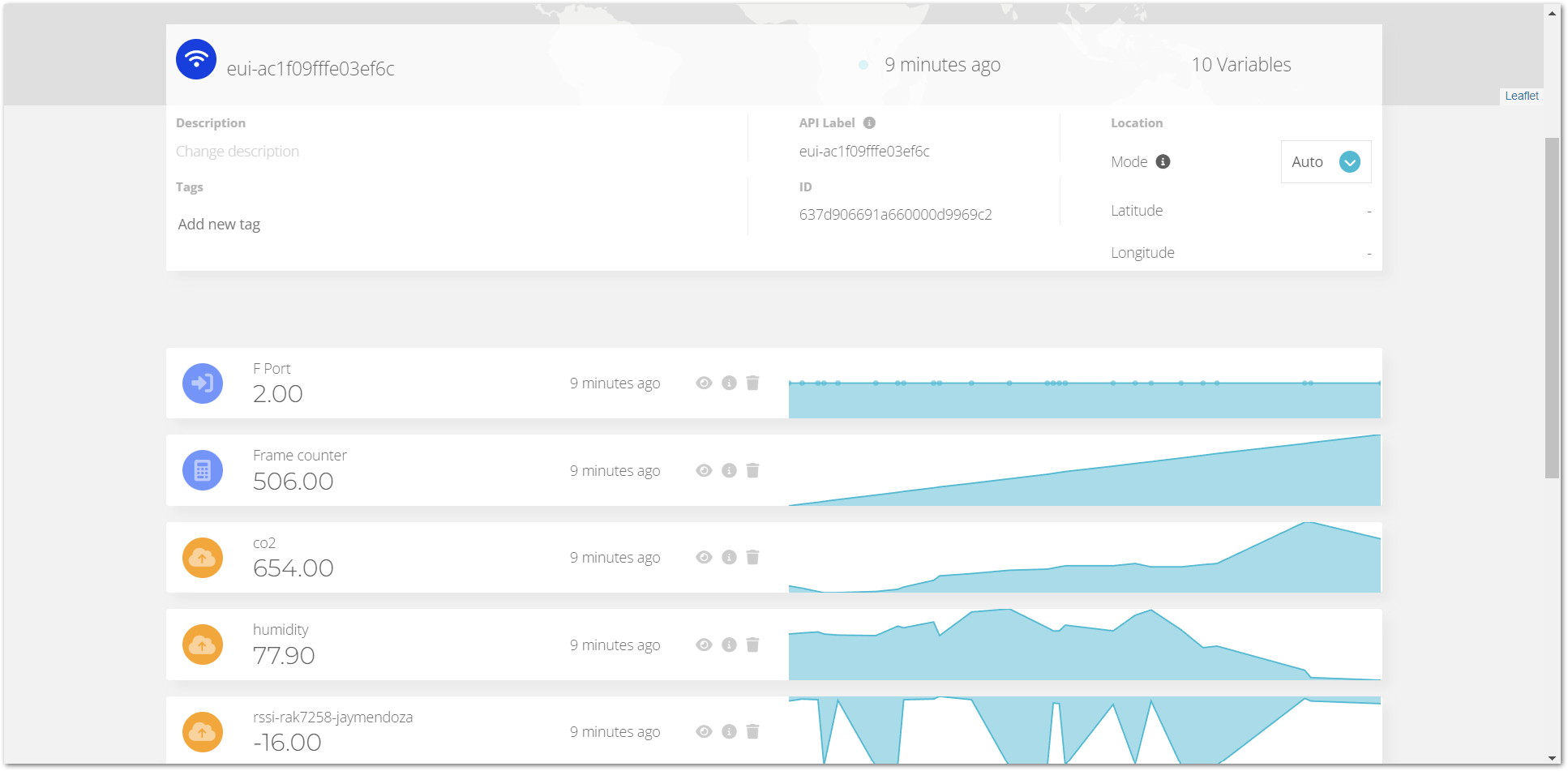

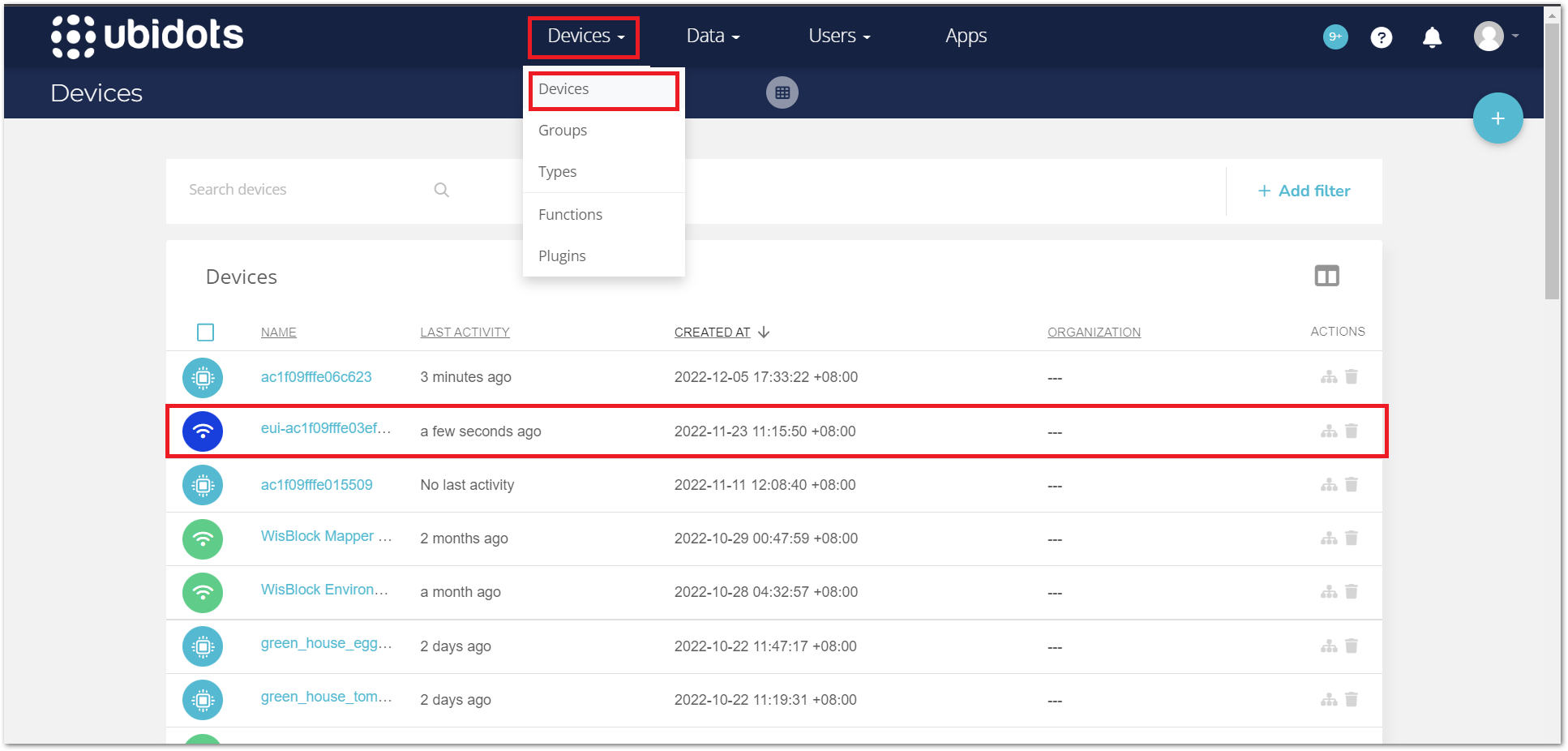

After that, go to Devices > Devices, you will see that Ubidots automatically created your device every time a payload from a new device is received.

Create a Dashboard on Ubidots

You can create your own dashboard to visualize and monitor the data as shown in Figure 41. For dashboard making, please refer to Create Dashboards & Widgets.

Manage Downlink Messages to TTS V3

For the downlink, we want to create toggle switches in our Ubidots dashboard. When one of the switches is pressed, it will send a downlink command to the TTS V3 and down into our end device, and when the end device receives the command, it will change its uplink sending time interval based on the switch that we clicked.

Three (3) switches were used. The first switch will change the uplink interval of the end device to 20 seconds, the second switch is for the 40-second uplink interval, and the last or third switch is for the 60-second uplink interval.

Creating a Switch Widget on Ubidots

Create a widget for switches. But before that, create variables first for the three (3) switches. Go to Devices > Devices and then click your end device name. After that, you'll be able to see the details and other variables, such as the sensor data of your end device.

Next, we need to add three (3) variables because we will create three (3) switches, one variable for each switch. To add a variable, click + Add Variable, then choose Raw and rename your variables as you want. Variables were named uplink-1, uplink-2, and uplink-3.

Go to Data > Dashboard, then click the + icon on the uppermost right to add a new widget for your switches on your dashboard. On the Control section of the widget, choose Switch.

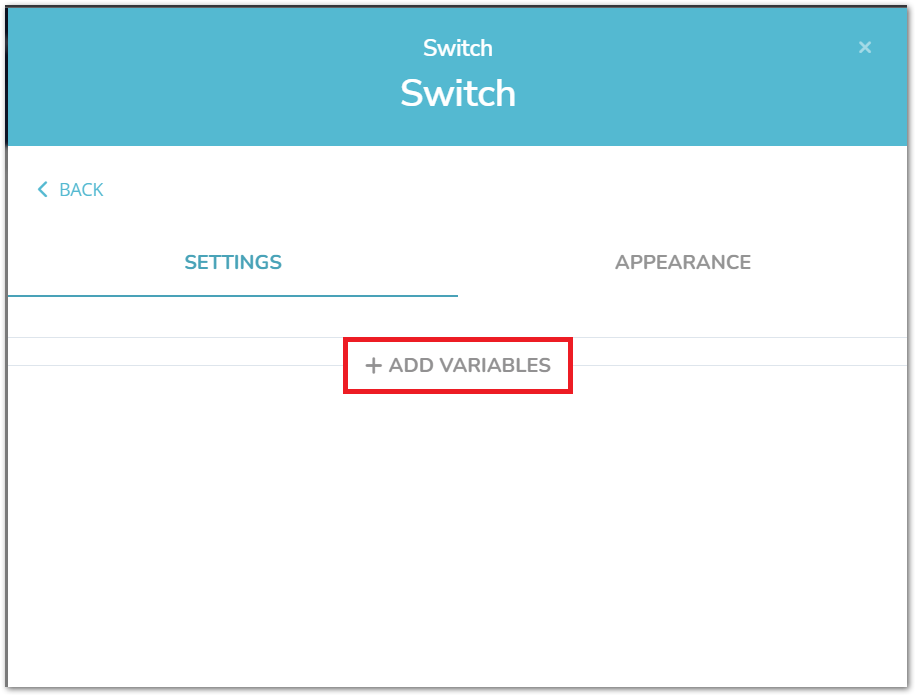

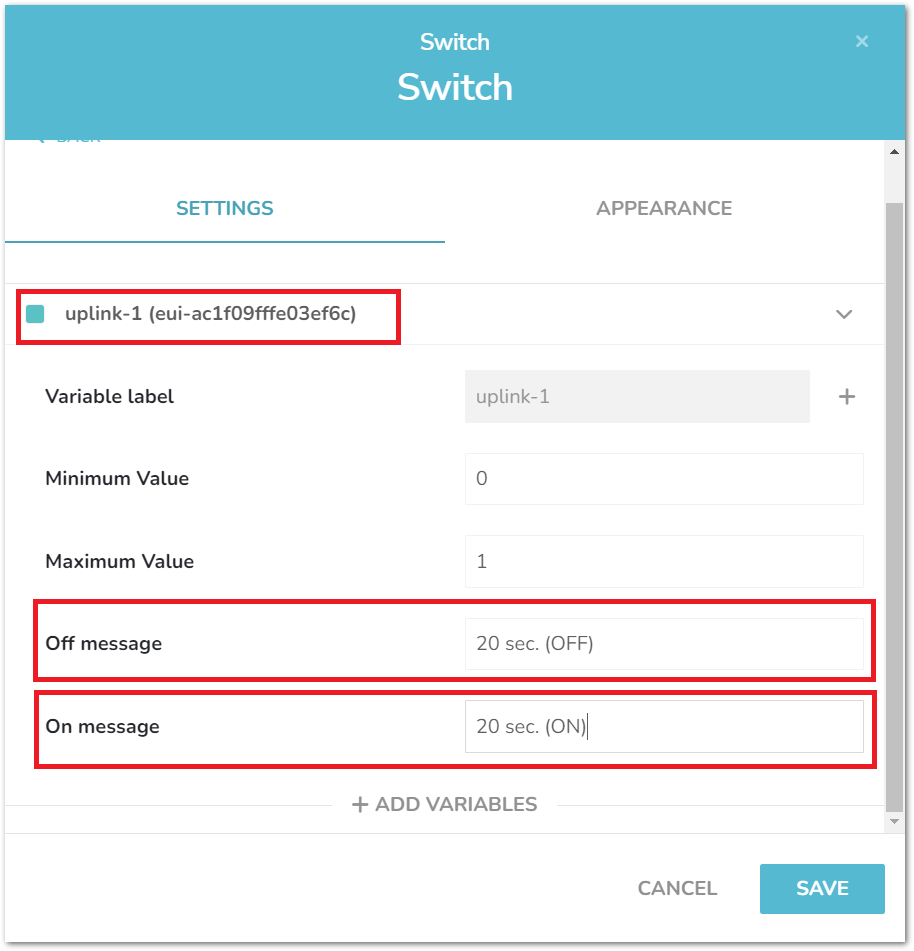

To add a variable on our switch. Click + ADD VARIABLES, then search for your <end device> then choose the raw variable that you have created before on STEP 2, then click SELECT.

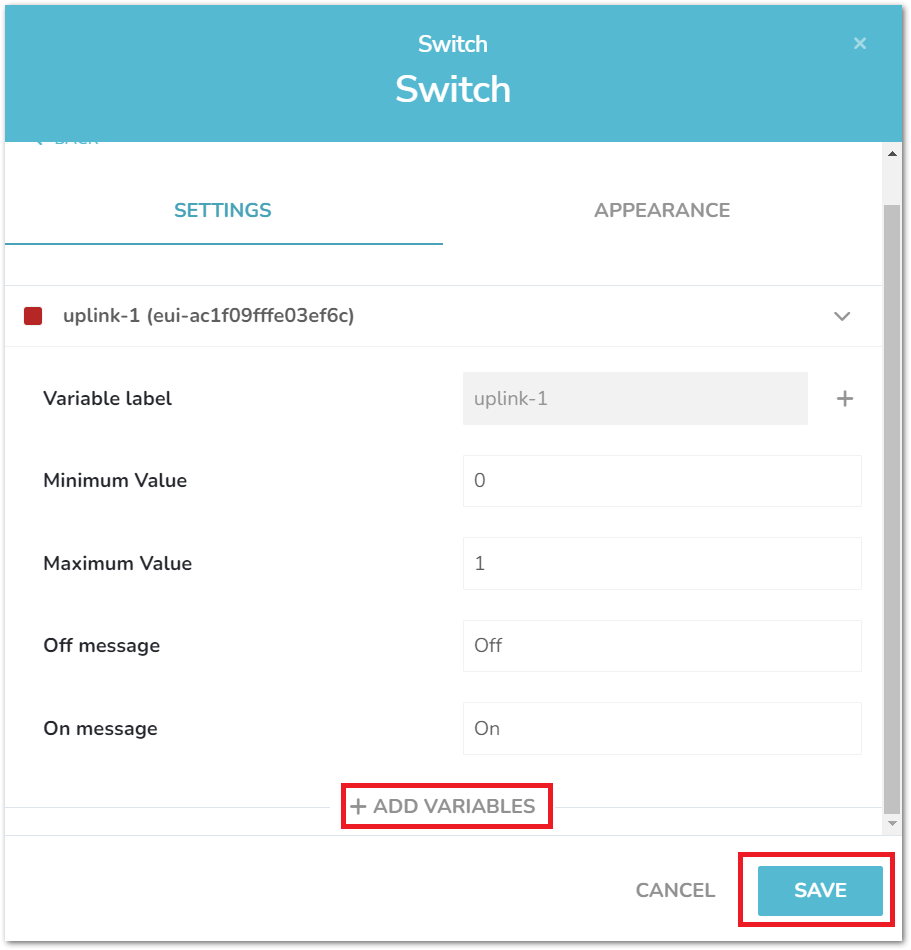

You'll now be able to see the variable you added for your first switch. You can also rename or make other configurations for your switch (optional).

Now, you have to add another variable for the other switches. Just follow the previous steps, then click SAVE.

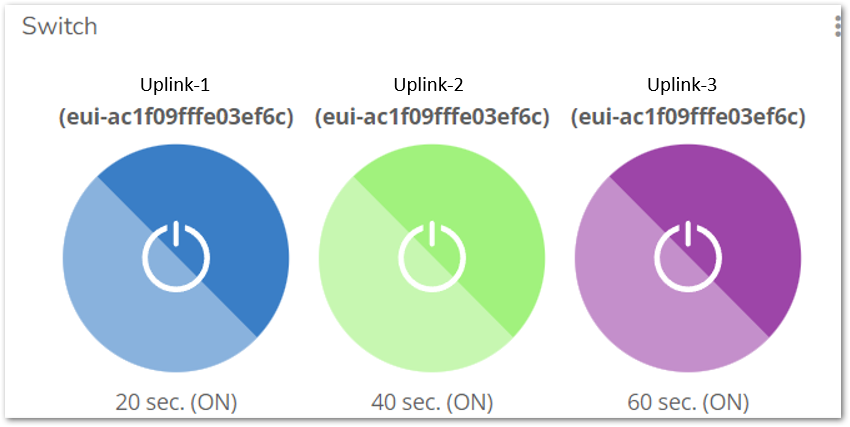

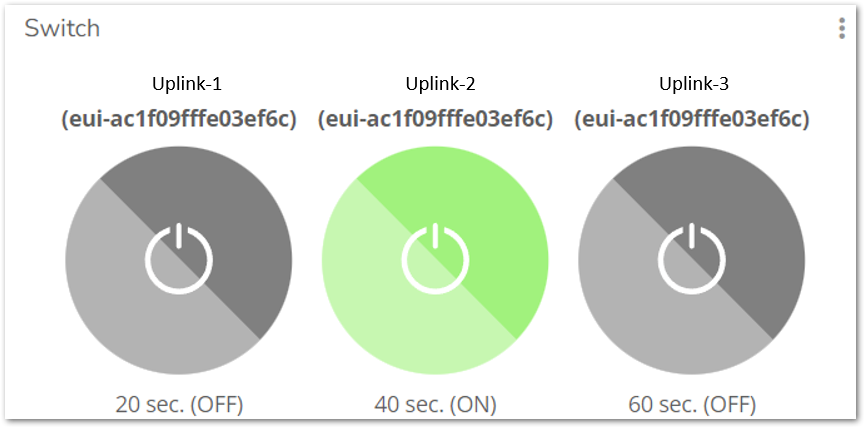

Finally, you have created a widget for the three (3) switches.

Converting the Switch into a Toggle Switch

Now that we have created our three (3) switches, we do not want to turn on all of the switches at the same time. What we wanted to do is to make a toggle switch so that when we turn on one of those switches, the other two switches must be automatically turned-off.

Go to Data > Events, then click the + icon on the upper right side to create a new event.

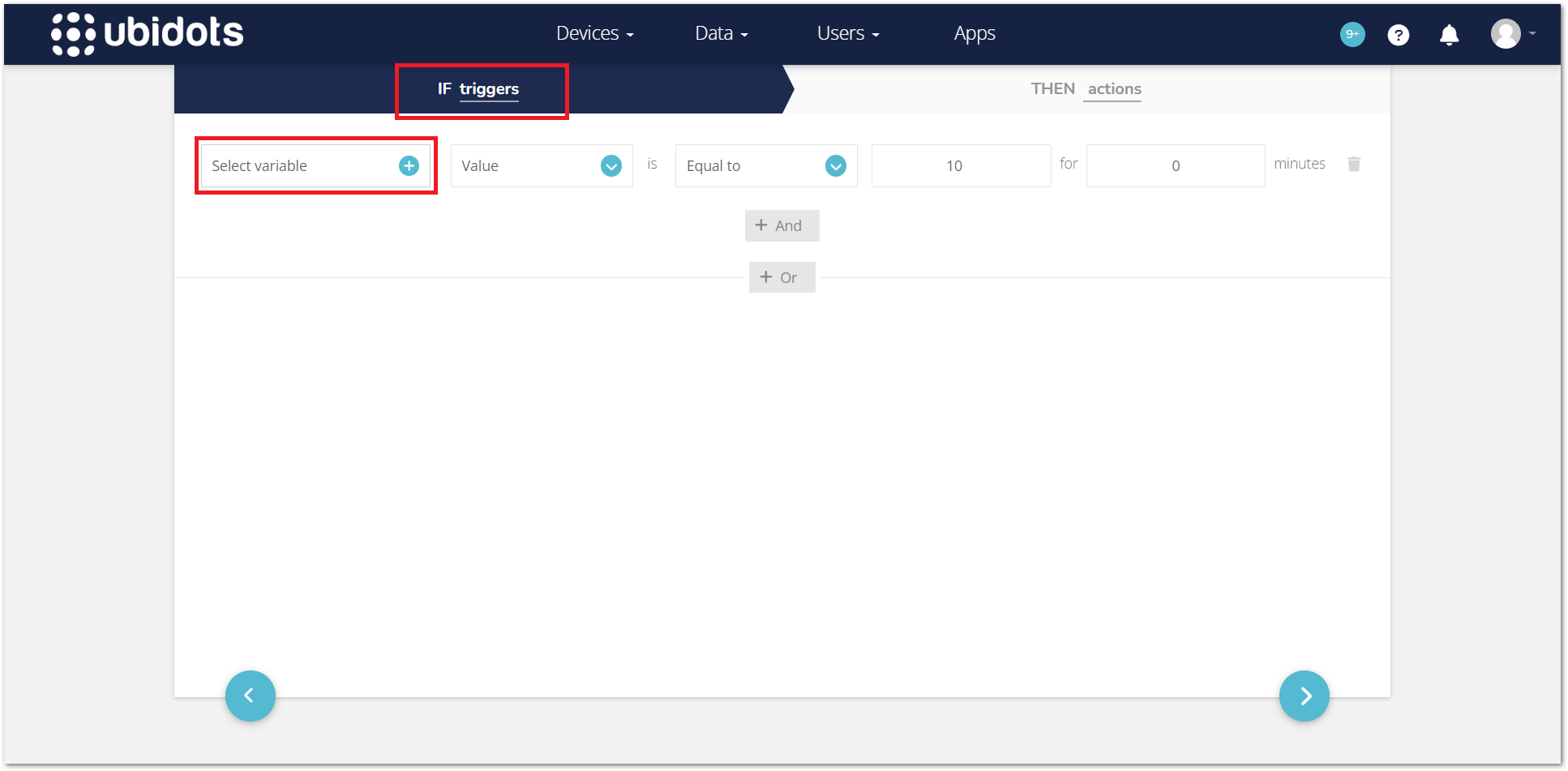

Now, on the IF triggers section of the Events tab, choose Select Variable.

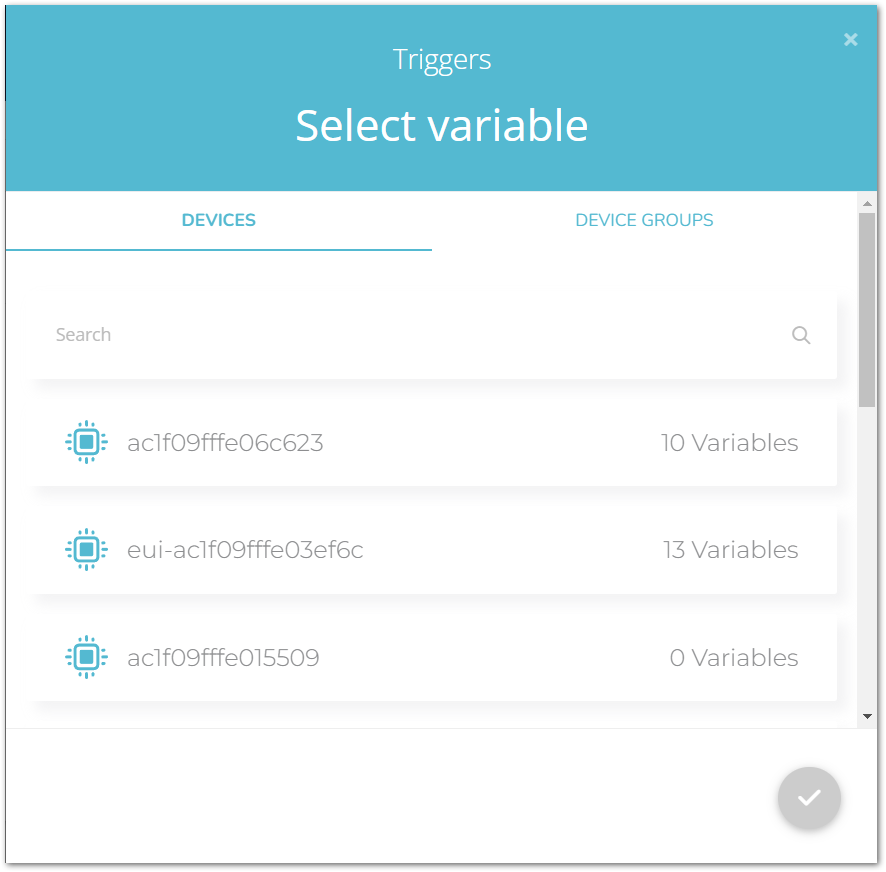

Search for your end device.

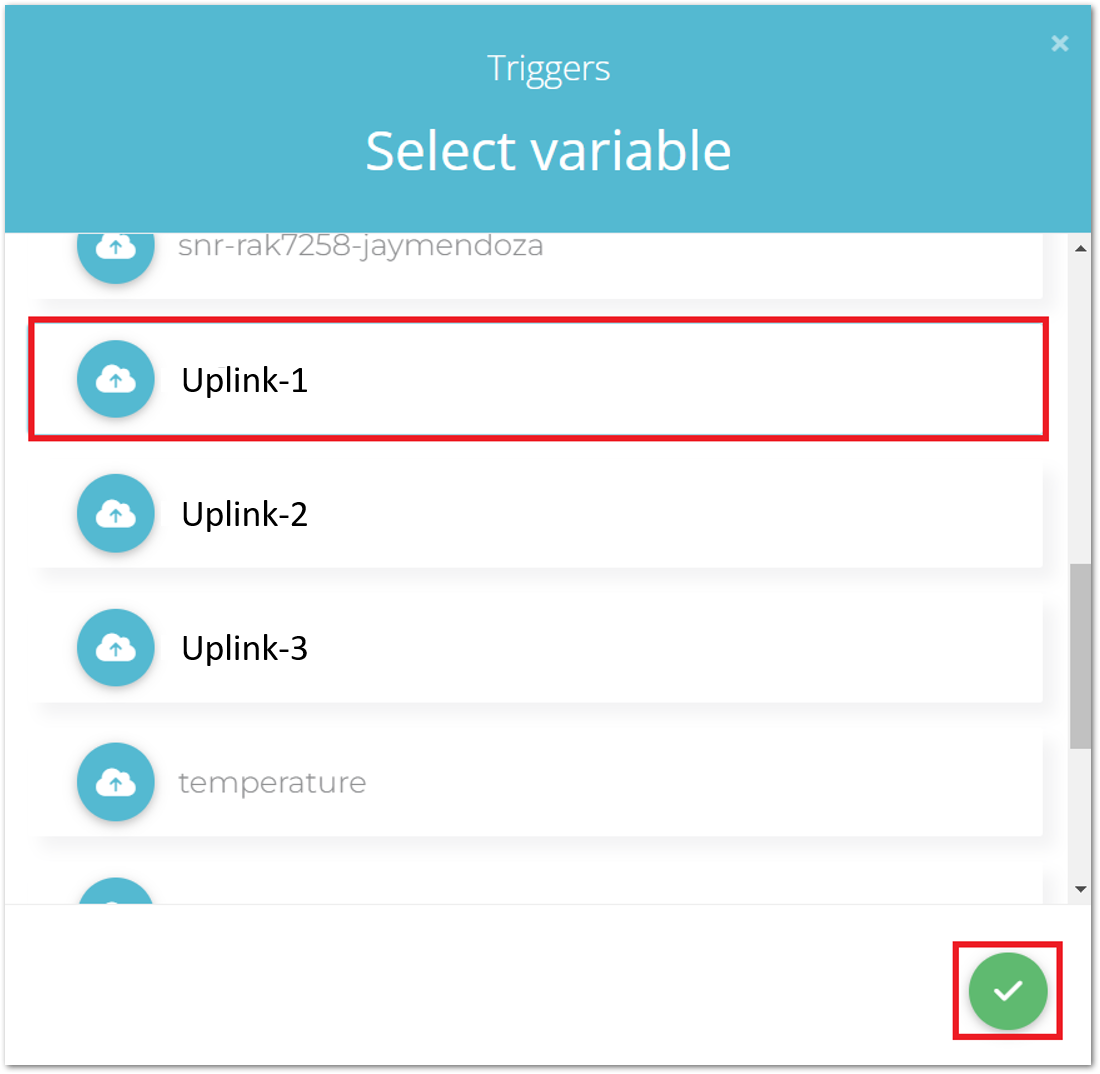

Select the variable of your Uplink-1, then click the check icon.

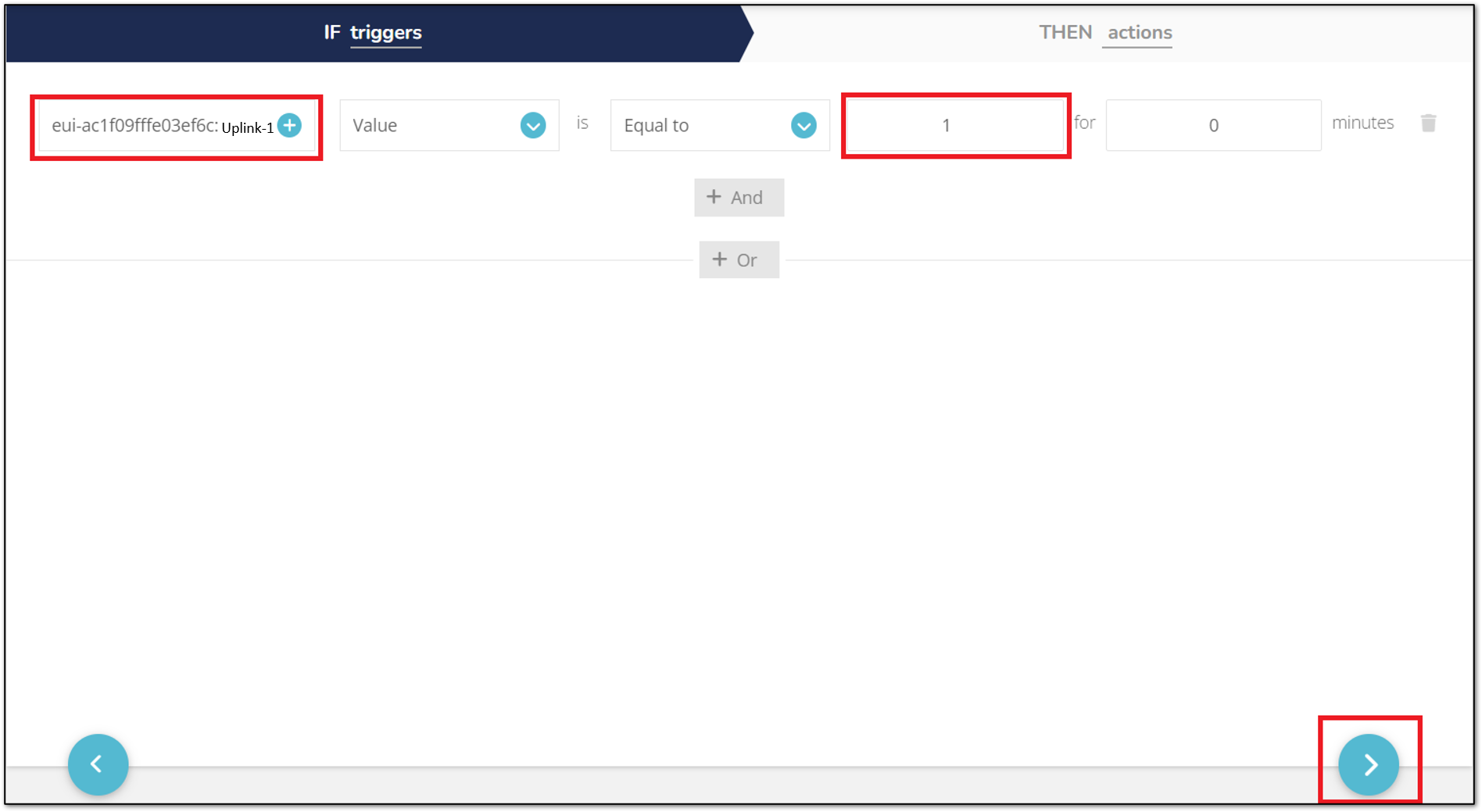

Change the value into 1 to indicate that IF Uplink-1 is turned ON. Then, click Next.
1: means that IF the switch is turned ON
0: means that IF the switch is turned OFF

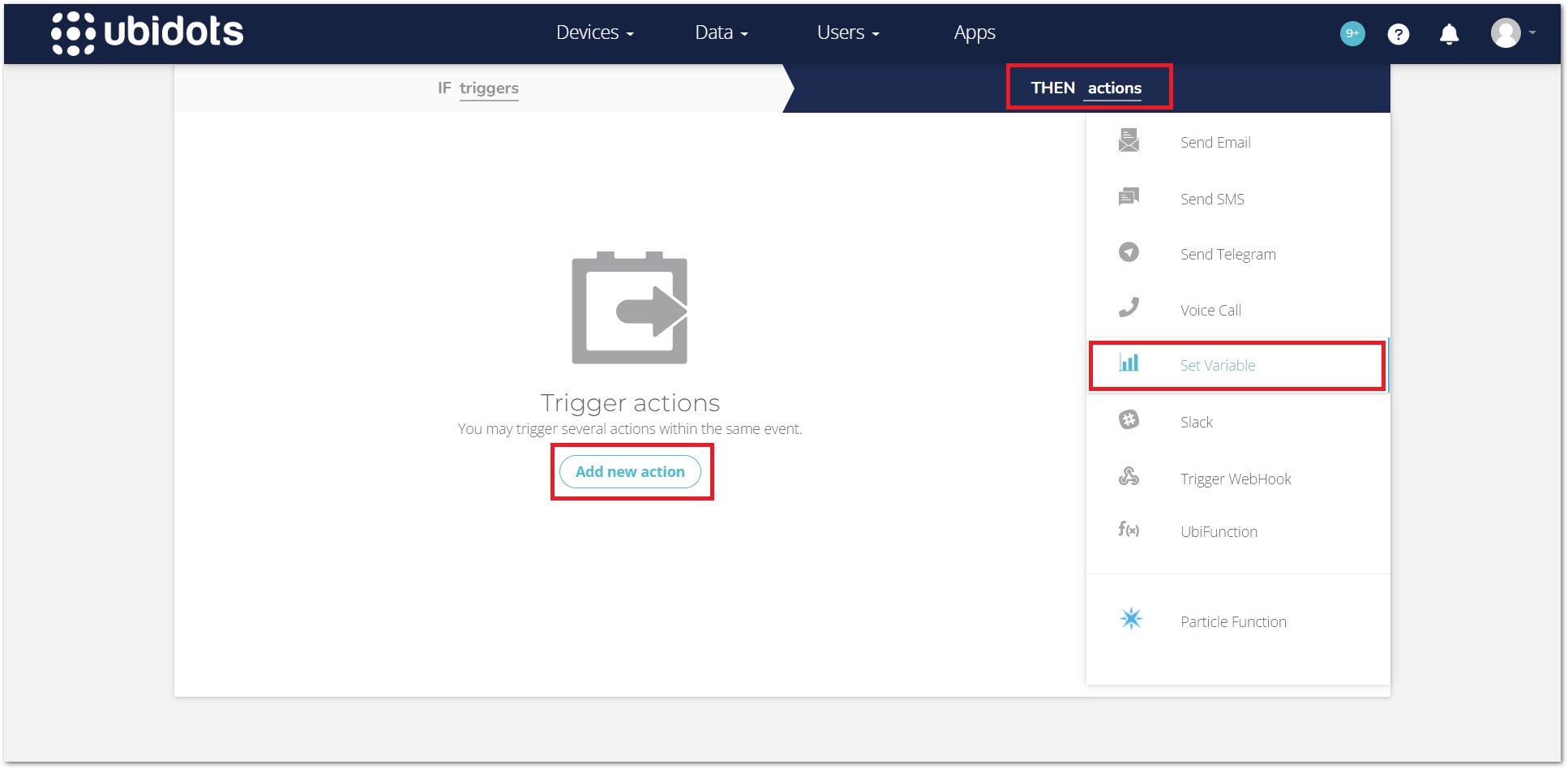

On the THEN actions section of the Events tab. Choose Add new action, then select Set Variable.

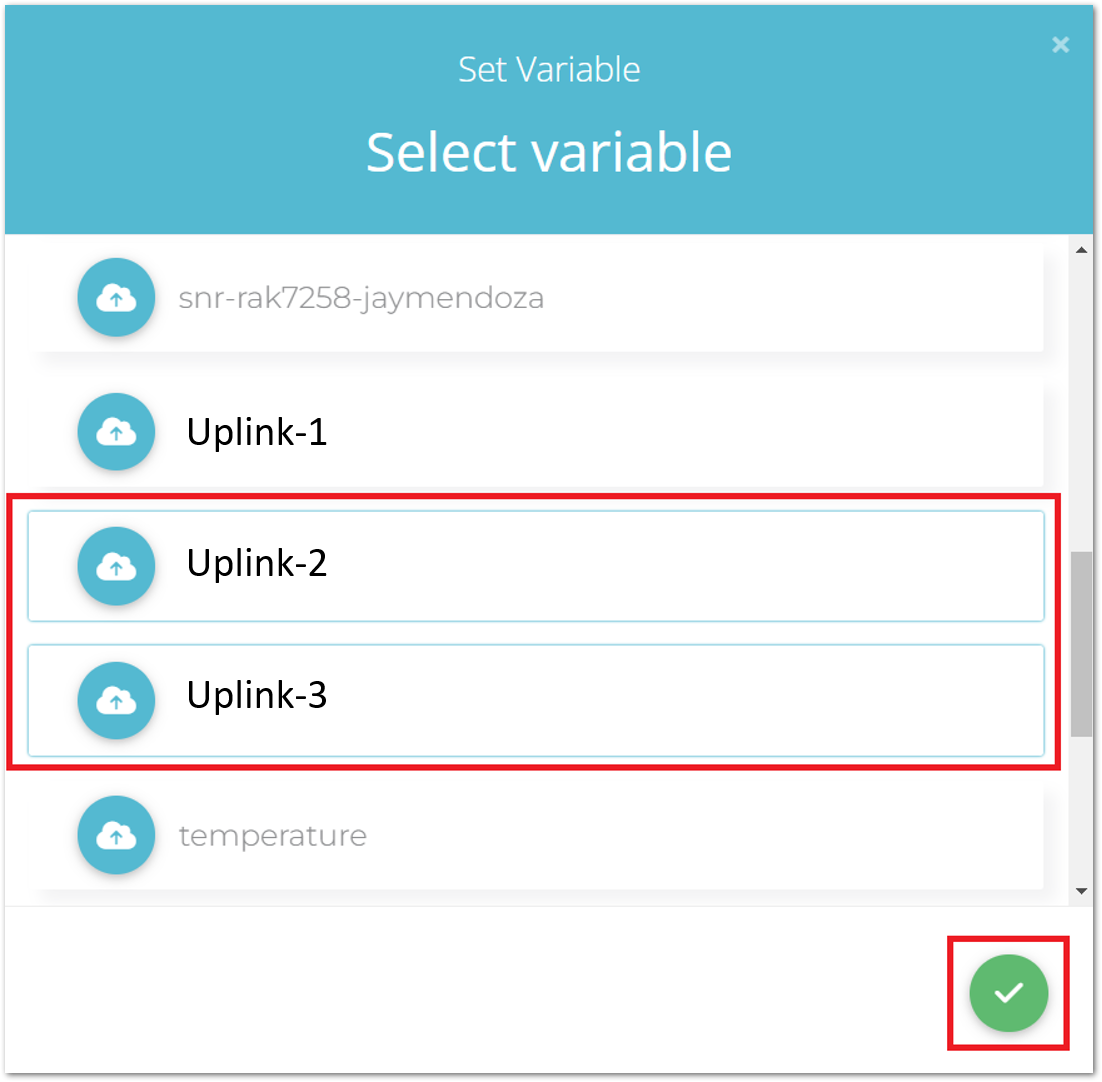

Go to Variables > Select variable and search your end device again, then select multiple variables which are your Uplink-2 and Uplink-3.

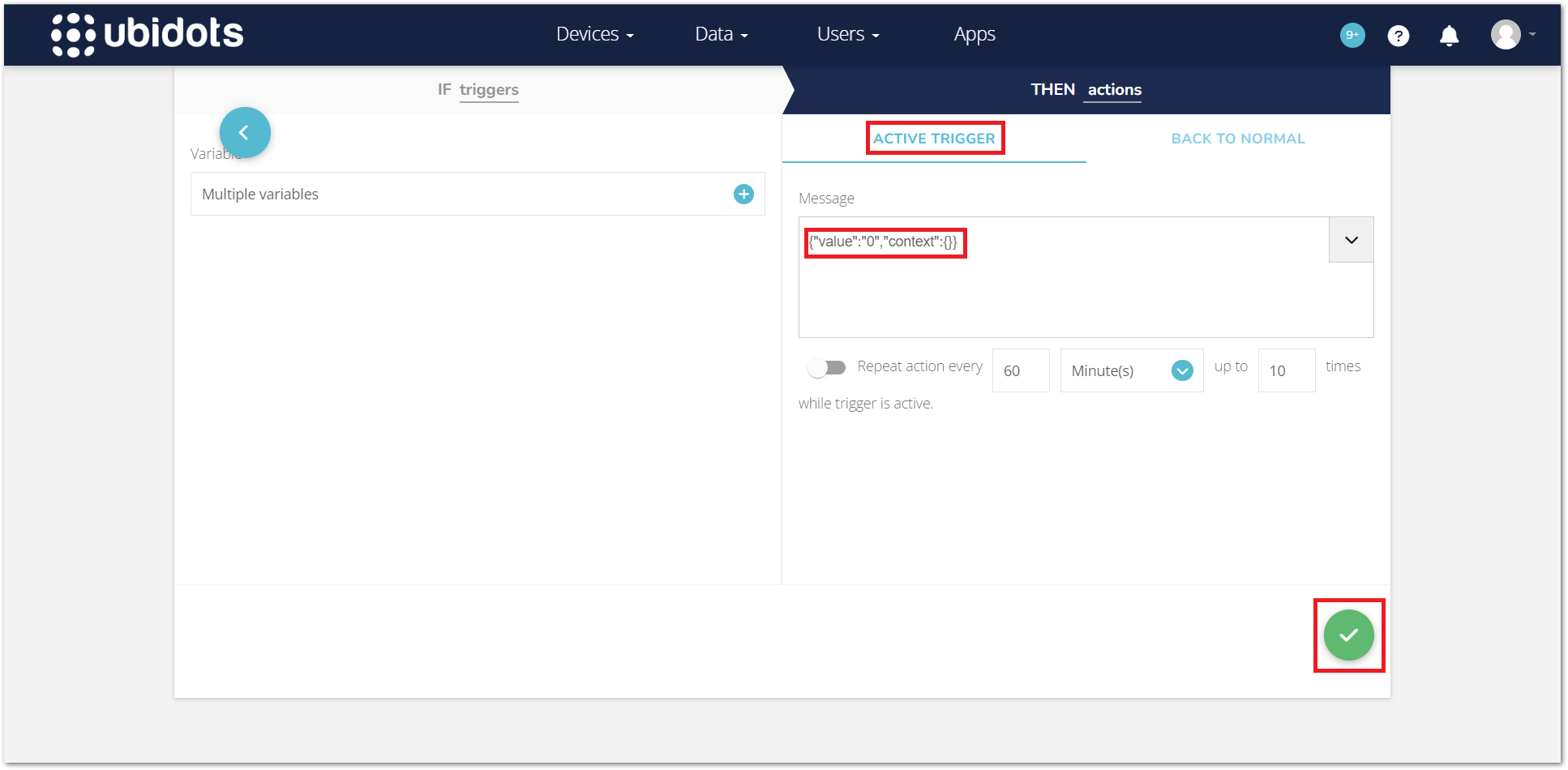

After selecting variables Uplink-2 and Uplink-3, look in the Message box of the ACTIVE TRIGGER section, put a value of zero (0) to set a command to turn OFF our Uplink-2 and Uplink-3. Click the check icon.

Finally, rename your event and click the check icon to finish setting it up.

You will now see your newly created event for the first toggle switch (red box). Do the same previous steps for the other remaining switches (green box). After doing that, you will have three (3) events for your switches as shown in Figure 65 below. Next, go to your Dashboards again to see if the toggle switches work.

Setup a Downlink Payload in Ubidots to TTS V3

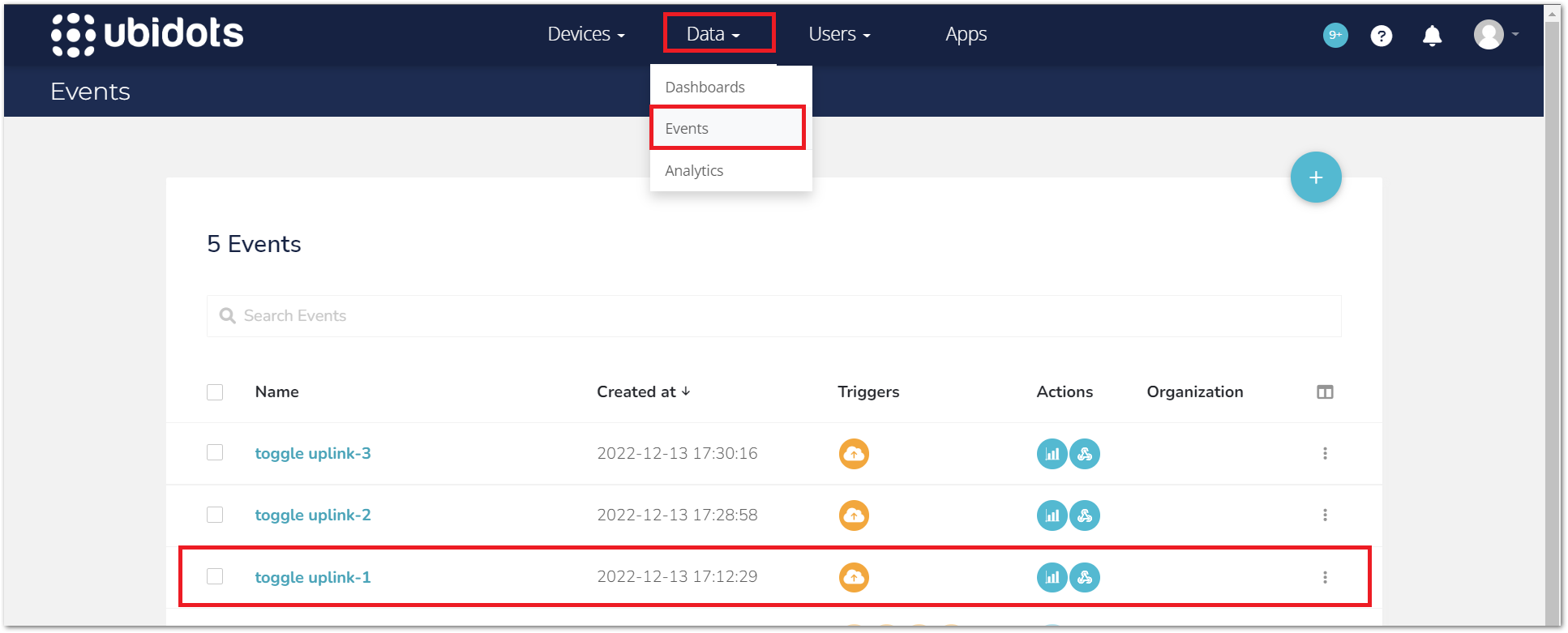

Go to Data > Events, then select one of your created events. Let us pick the switch-1 event as our example.

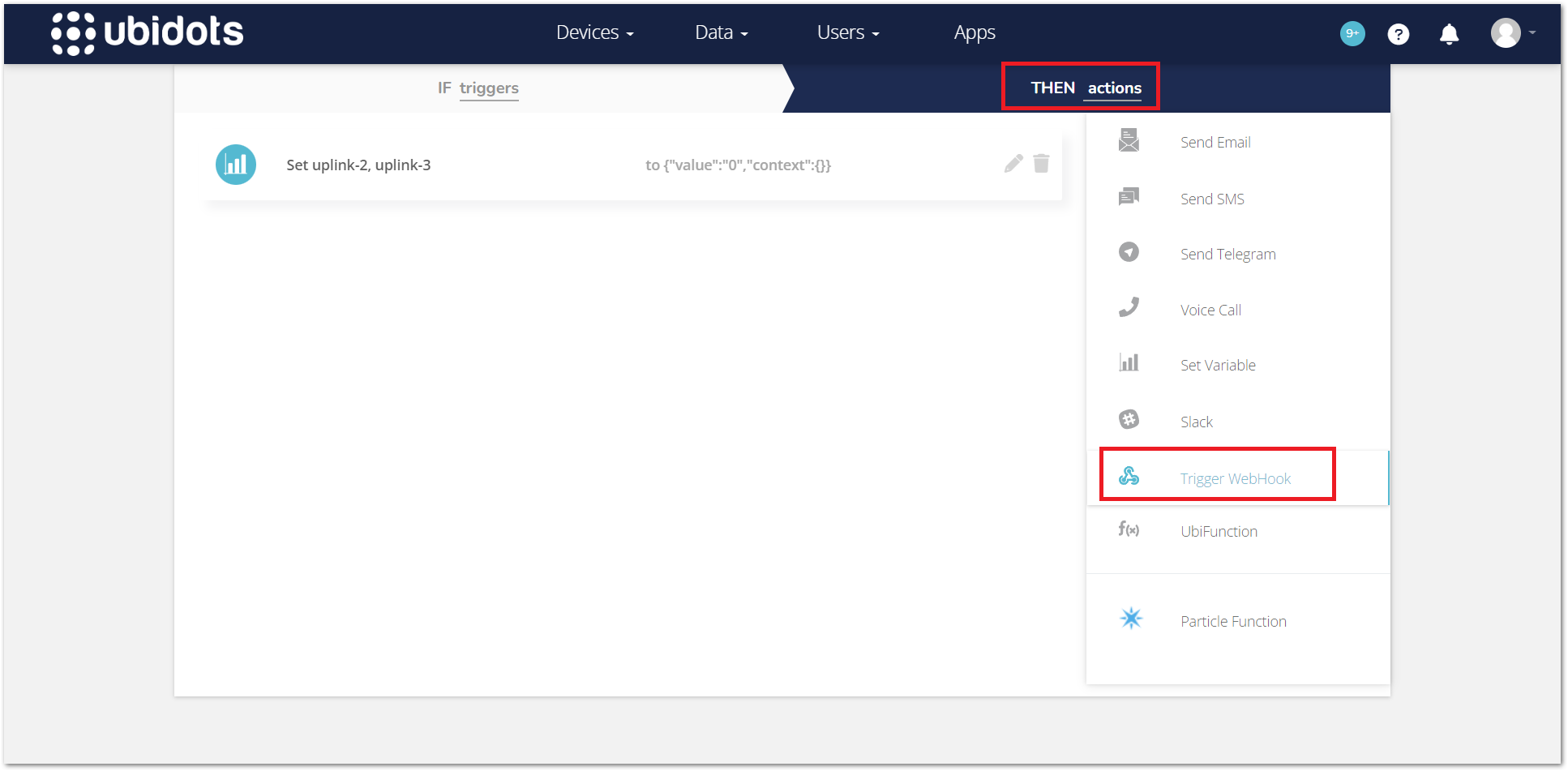

Go to THEN actions section, then create a new event, and select Trigger WebHook.

Head to your The Things Stack account. Go to Applications and select the application hosting the device you want to make a downlink to.

Extract the Region and Application ID and save them into your notes.

Region: The region where your TTS resides.
Application ID: Found in the Application Overview section.

Extract and save the API Key.

API Key: The TTS V3 console doesn't allow seeing existing API Keys. Therefore, unless you already have an existing API Key saved in a secure place, you will have to create a new API Key. Check the box with the Write downlink application traffic because it is mandatory to allow downlink traffic.

Lastly, extract and save the Device ID.

Device ID: Found on the End devices tab.

Enter the acquired information above in the webhook options panel of the event action.

HTTP Method: POST
URL: https://<region>.cloud.thethings.network/api/v3/as/applications/<application-id>/devices/<device-id>/down/push (you'll need to replace <region>, <application-id> and <device-id> with the information obtained in the previous step.)

On the Headers section, click + Add header.

Headers: You'll be needing 2 headers. One is for the Content-Type, and the other one is for the Authorization. It follows the structure key:value.
Content-Type : application/json
Authorization : Bearer <API Key> (you'll need to replace <API Key> with the information obtained in the previous step.)

Lastly, enter the JSON body. This is the JSON expected by the TTS V3 back end. You can send either a base-64 payload or a human-readable payload, but for now, we will be sending a base-64 payload.

Since we are now on a switch-1 event and it is also a 20-second time interval switch, we need to convert the 20-second into HEX.

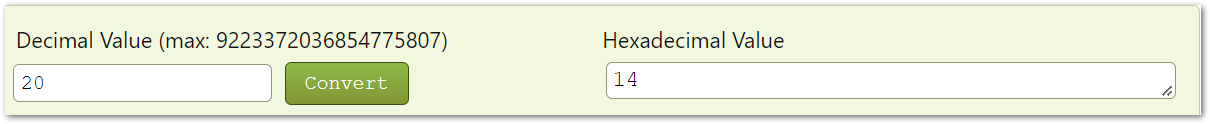

The 20 seconds are now equivalent to 0x14 in HEX.

Let us send 2 bytes of payload down to our TTS V3. The payload we wanted to send if we pressed the switch-1 should be 0x01, 0x14.

WHERE:
0x01: This is just the variable name for the switch (this variable's value should be the same for ALL of the switches.)
0x14: The 20-sec uplink time interval that we set

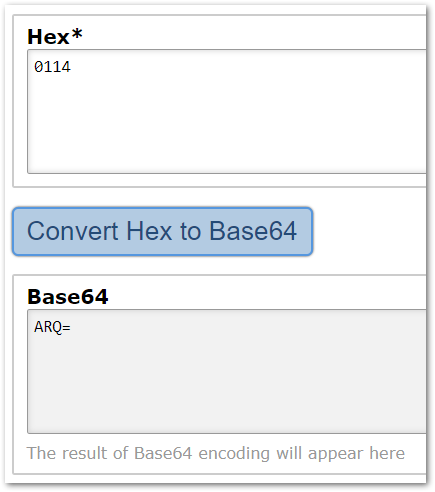

 Now, convert the 2 bytes of payload 0x01, 0x14 into a Base-64.

Our 0x01, 0x14 HEX payload is now equivalent to ARQ= in Base-64.

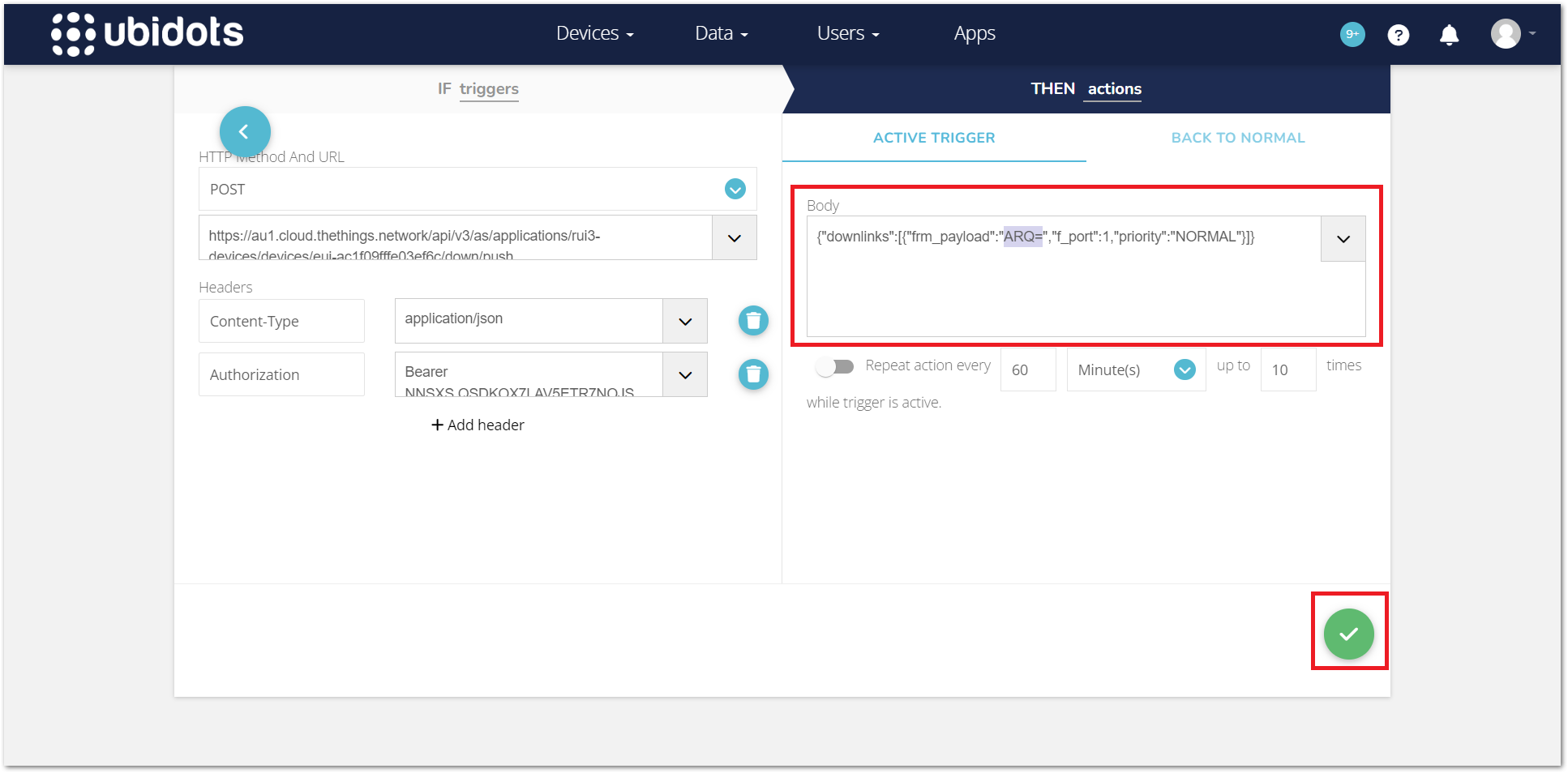

Go to the JSON body and enter the following Base-64 payload, then click the check icon to finish the setup.

Body: {"downlinks":[{"frm_payload":"<base-64-payload>","f_port":<port>,"priority":"NORMAL"}]} (you'll need to replace <base-64-payload> with the payload formatted in base-64, <port> with the listening port of your device.)

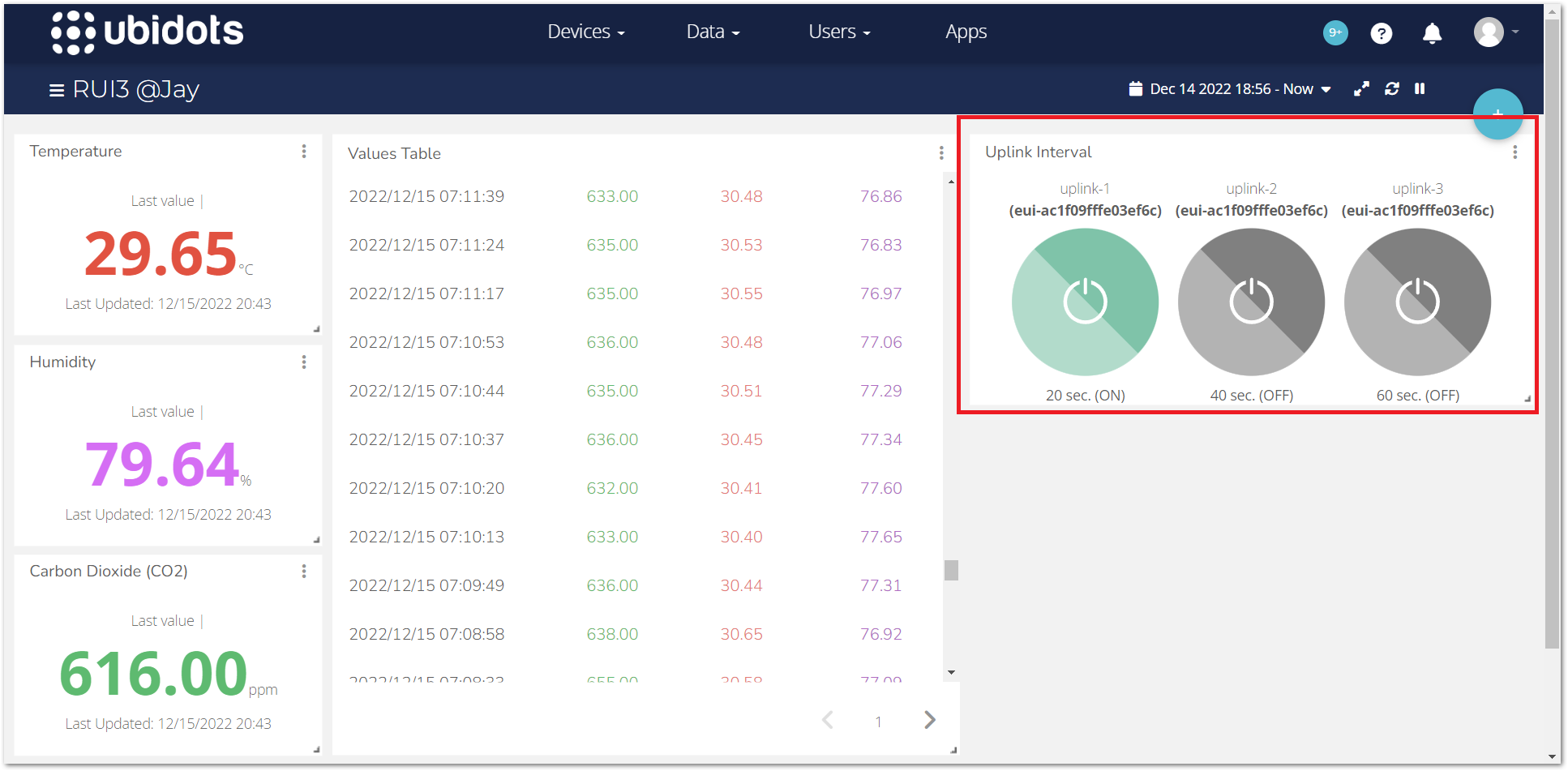

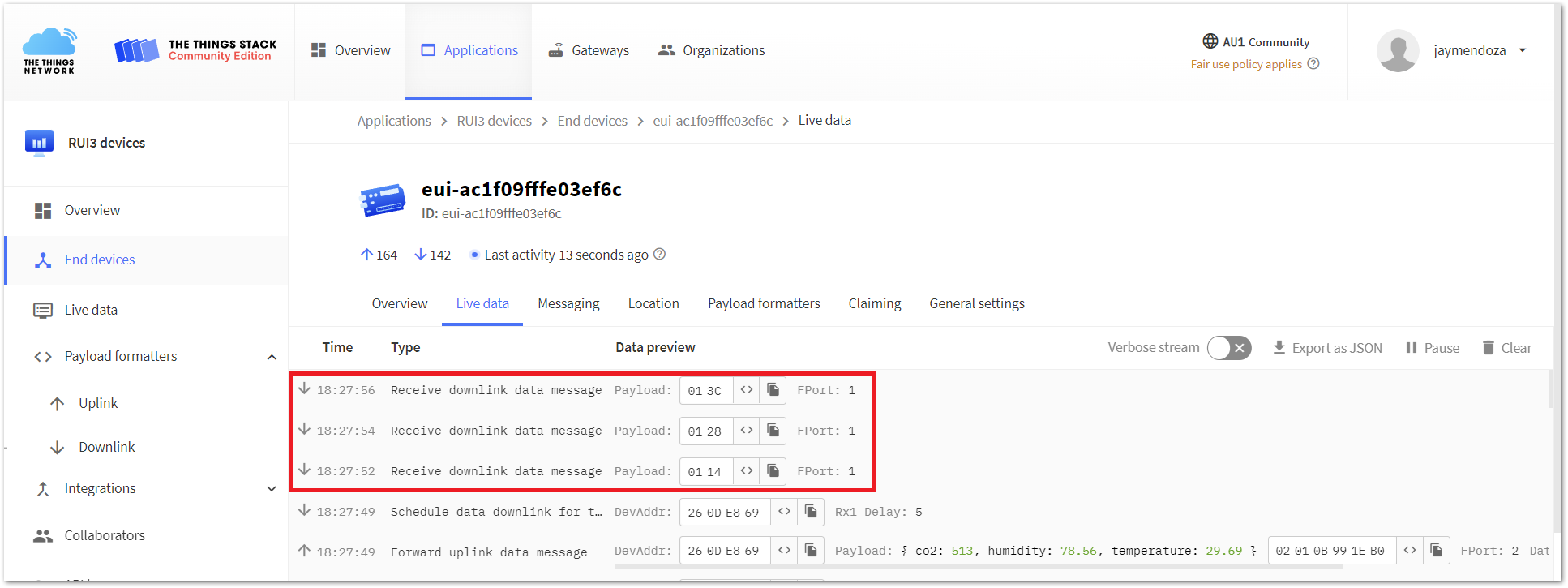

Finally, go to your Dashboards and try to press the 20-second switch, you will now be able to see a downlink payload in your TTS V3 account. Your Base-64 (ARQ=) payload is automatically converted back again into HEX (0x01, 0x14) as shown in Figure 77 below.

Do the same previous steps for the other remaining switches; the 40-second switch and the 60-second switch, and you'll get a downlink result as shown in Figure 78 below.

Data Format

• Downlink is sent as two (2) bytes. For example, if you want to send a 60-second uplink time, it will be sent as 0x01, 0x3C.
• The first byte is just a variable name for the switch.
• The second byte is the desired uplink time interval that has been set by the user.

Example Code Configuration for Downlink

Copy the following example code into your Arduino IDE. It is the same code used for uplink - the one we just made and added some modifications to.

#include <Wire.h>
#include "SparkFun_SCD30_Arduino_Library.h"

/*************************************

   LoRaWAN band setting:
     RAK_REGION_EU433
     RAK_REGION_CN470
     RAK_REGION_RU864
     RAK_REGION_IN865
     RAK_REGION_EU868
     RAK_REGION_US915
     RAK_REGION_AU915
     RAK_REGION_KR920
     RAK_REGION_AS923

 *************************************/
#define OTAA_BAND     (RAK_REGION_EU868)
#define OTAA_DEVEUI   {0xAC, 0x1F, 0x09, 0xFF, 0xFE, 0x03, 0xEF, 0x6C}
#define OTAA_APPEUI   {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}
#define OTAA_APPKEY   {0x98, 0xF9, 0x41, 0x43, 0x94, 0xDA, 0x4D, 0x18, 0x42, 0x34, 0x6E, 0x56, 0xBD, 0xC7, 0x35, 0x43}

SCD30 airSensor;

/** Packet buffer for sending */
uint8_t collected_data[64] = { 0 };
int OTAA_PERIOD = 20000;

void recvCallback(SERVICE_LORA_RECEIVE_T * data)
{
  if (data->BufferSize > 0) {
    Serial.println("Something received!");
    for (int i = 0; i < data->BufferSize; i++) {
      Serial.printf("%x", data->Buffer[i]);
    }
    Serial.print("\r\n");

    uint8_t val_1 = data->Buffer[0];
    uint8_t val_2 = data->Buffer[1];
    Serial.println(val_1);
    Serial.println(val_2);

    if (val_1 == 1)
    {
      OTAA_PERIOD = (val_2 * 1000);
    }
  }
}

void joinCallback(int32_t status)
{
  Serial.printf("Join status: %d\r\n", status);
}

void sendCallback(int32_t status)
{
  if (status == 0) {
    Serial.println("Successfully sent");
  } else {
    Serial.println("Sending failed");
  }
}

void setup()
{
  Serial.begin(115200, RAK_AT_MODE);

  Serial.println("RAKwireless LoRaWan OTAA Example");
  Serial.println("------------------------------------------------------");

  pinMode(WB_IO2, OUTPUT);
  digitalWrite(WB_IO2, HIGH);

  // Initialize Serial for debug output
  time_t timeout = millis();
  Serial.begin(115200);
  while (!Serial)
  {
    if ((millis() - timeout) < 5000)
    {
      delay(100);
    }
    else
    {
      break;
    }
  }

  Serial.println("SCD30 Automatic self-calibration Example.");

  Wire.begin();

  //Start sensor using the Wire port and enable the auto-calibration (ASC)
  if (airSensor.begin(Wire, true) == false)
  {
    Serial.println("Air sensor not detected. Please check wiring. Freezing...");
    while (1)
    {
      delay(10);
    }
  }

  Serial.print("Automatic self-calibration set to：");
  if (airSensor.getAutoSelfCalibration() == true)
    Serial.println("true");
  else
    Serial.println("false");

  // OTAA Device EUI MSB first
  uint8_t node_device_eui[8] = OTAA_DEVEUI;
  // OTAA Application EUI MSB first
  uint8_t node_app_eui[8] = OTAA_APPEUI;
  // OTAA Application Key MSB first
  uint8_t node_app_key[16] = OTAA_APPKEY;

  if (!api.lorawan.appeui.set(node_app_eui, 8)) {
    Serial.printf("LoRaWan OTAA - set application EUI is incorrect! \r\n");
    return;
  }
  if (!api.lorawan.appkey.set(node_app_key, 16)) {
    Serial.printf("LoRaWan OTAA - set application key is incorrect! \r\n");
    return;
  }
  if (!api.lorawan.deui.set(node_device_eui, 8)) {
    Serial.printf("LoRaWan OTAA - set device EUI is incorrect! \r\n");
    return;
  }

  if (!api.lorawan.band.set(OTAA_BAND)) {
    Serial.printf("LoRaWan OTAA - set band is incorrect! \r\n");
    return;
  }
  if (!api.lorawan.deviceClass.set(RAK_LORA_CLASS_A)) {
    Serial.printf("LoRaWan OTAA - set device class is incorrect! \r\n");
    return;
  }
  if (!api.lorawan.njm.set(RAK_LORA_OTAA))	// Set the network join mode to OTAA
  {
    Serial.
	printf("LoRaWan OTAA - set network join mode is incorrect! \r\n");
    return;
  }
  if (!api.lorawan.join())	// Join to Gateway
  {
    Serial.printf("LoRaWan OTAA - join fail! \r\n");
    return;
  }

  /** Wait for Join success */
  while (api.lorawan.njs.get() == 0) {
    Serial.print("Wait for LoRaWAN join...");
    api.lorawan.join();
    delay(10000);
  }

  if (!api.lorawan.adr.set(true)) {
    Serial.printf
	("LoRaWan OTAA - set adaptive data rate is incorrect! \r\n");
    return;
  }
  if (!api.lorawan.rety.set(1)) {
    Serial.printf("LoRaWan OTAA - set retry times is incorrect! \r\n");
    return;
  }
  if (!api.lorawan.cfm.set(1)) {
    Serial.printf("LoRaWan OTAA - set confirm mode is incorrect! \r\n");
    return;
  }

  /** Check LoRaWan Status*/
  Serial.printf("Duty cycle is %s\r\n", api.lorawan.dcs.get()? "ON" : "OFF");	// Check Duty Cycle status
  Serial.printf("Packet is %s\r\n", api.lorawan.cfm.get()? "CONFIRMED" : "UNCONFIRMED");	// Check Confirm status
  uint8_t assigned_dev_addr[4] = { 0 };
  api.lorawan.daddr.get(assigned_dev_addr, 4);
  Serial.printf("Device Address is %02X%02X%02X%02X\r\n", assigned_dev_addr[0], assigned_dev_addr[1], assigned_dev_addr[2], assigned_dev_addr[3]);	// Check Device Address
  Serial.printf("Uplink period is %ums\r\n", OTAA_PERIOD);
  Serial.println("");
  api.lorawan.registerRecvCallback(recvCallback);
  api.lorawan.registerJoinCallback(joinCallback);
  api.lorawan.registerSendCallback(sendCallback);
}

void uplink_routine()
{
  /** Payload of Uplink */
  uint8_t data_len = 0;

  float temp = airSensor.getTemperature();
  float hum = airSensor.getHumidity();

  uint16_t co2_data = (airSensor.getCO2());
  uint16_t temperature_data = (temp) * 100;
  uint16_t humidity_data = (hum) * 100;

  collected_data[data_len++] = co2_data >> 8;
  collected_data[data_len++] = co2_data;
  collected_data[data_len++] = temperature_data >> 8;
  collected_data[data_len++] = temperature_data;
  collected_data[data_len++] = humidity_data >> 8;
  collected_data[data_len++] = humidity_data;

  Serial.println("Data Packet:");
  for (int i = 0; i < data_len; i++) {
    Serial.printf("0x%02X ", collected_data[i]);
  }
    Serial.println();

    Serial.print("co2(ppm):");
    Serial.print(co2_data);

    Serial.print(" temp(C):");
    Serial.print(temp, 2);

    Serial.print(" humidity(%):");
    Serial.print(hum, 2);

  Serial.println("");

  /** Send the data package */
  if (api.lorawan.send(data_len, (uint8_t *) & collected_data, 2, true, 1)) {
    Serial.println("Sending is requested");
  } else {
    Serial.println("Sending failed");
  }
}

void loop()
{
  static uint64_t last = 0;
  static uint64_t elapsed;

  if (airSensor.dataAvailable())
  {
    if ((elapsed = millis() - last) > OTAA_PERIOD) {
      uplink_routine();
      last = millis();
    }
  }
  else
    Serial.println("Waiting for new data");
  //Serial.printf("Try sleep %ums..", OTAA_PERIOD);
  api.system.sleep.all(OTAA_PERIOD);
  //Serial.println("Wakeup..");
}

LoRaWAN Downlink

This is the setup for the OTAA variable uplink time interval.

int OTAA_PERIOD;

This is the setup on the void recvCallback(SERVICE_LORA_RECEIVE_T * data) function. This will gather the downlink data received from the TTS V3 and package it to be set as our new OTAA variable uplink time interval.

void recvCallback(SERVICE_LORA_RECEIVE_T * data)
{
  if (data->BufferSize > 0) {
    Serial.println("Something received!");
    for (int i = 0; i < data->BufferSize; i++) {
      Serial.printf("%x", data->Buffer[i]);
    }
    Serial.print("\r\n");

    uint8_t val_1 = data->Buffer[0];
    uint8_t val_2 = data->Buffer[1];
    Serial.println(val_1);
    Serial.println(val_2);

    if (val_1 == 1)
    {
      OTAA_PERIOD = (val_2 * 1000);
    }
  }
}

Uploading the Arduino Code

You can now select the right serial port and upload the code.

When you have successfully uploaded the example sketch, open the serial monitor of the Arduino IDE to see the reading logs. Try to press the switch you created and configured on Ubidots. If you see the logs, as shown below, then your device is properly sending downlink messages and your device is now sending an uplink based on the time interval that the switch sends.

If you noticed, the HEX payload from TTS has been converted back to the real time-value of the switch in the Serial Monitor.

If there is no downlink that was received on the end-device recvCallback, it is a good idea to test first the firmware directly from TTN downlink.

When using TTN downlink, the input can be the direct payload and no need to convert unlike from Ubidots.

For example, there is no need to convert 0x0114 to ARQ=.

Full Source Code

Below is the full source code of this article:

#include <Wire.h>
#include "SparkFun_SCD30_Arduino_Library.h"

/*************************************

   LoRaWAN band setting:
     RAK_REGION_EU433
     RAK_REGION_CN470
     RAK_REGION_RU864
     RAK_REGION_IN865
     RAK_REGION_EU868
     RAK_REGION_US915
     RAK_REGION_AU915
     RAK_REGION_KR920
     RAK_REGION_AS923

 *************************************/
#define OTAA_BAND     (RAK_REGION_EU868)
#define OTAA_DEVEUI   {0xAC, 0x1F, 0x09, 0xFF, 0xFE, 0x03, 0xEF, 0x6C}
#define OTAA_APPEUI   {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}
#define OTAA_APPKEY   {0x98, 0xF9, 0x41, 0x43, 0x94, 0xDA, 0x4D, 0x18, 0x42, 0x34, 0x6E, 0x56, 0xBD, 0xC7, 0x35, 0x43}

SCD30 airSensor;

/** Packet buffer for sending */
uint8_t collected_data[64] = { 0 };
int OTAA_PERIOD = 20000;

void recvCallback(SERVICE_LORA_RECEIVE_T * data)
{
  if (data->BufferSize > 0) {
    Serial.println("Something received!");
    for (int i = 0; i < data->BufferSize; i++) {
      Serial.printf("%x", data->Buffer[i]);
    }
    Serial.print("\r\n");

    uint8_t val_1 = data->Buffer[0];
    uint8_t val_2 = data->Buffer[1];
    Serial.println(val_1);
    Serial.println(val_2);

    if (val_1 == 1)
    {
      OTAA_PERIOD = (val_2 * 1000);
    }
  }
}

void joinCallback(int32_t status)
{
  Serial.printf("Join status: %d\r\n", status);
}

void sendCallback(int32_t status)
{
  if (status == 0) {
    Serial.println("Successfully sent");
  } else {
    Serial.println("Sending failed");
  }
}

void setup()
{
  Serial.begin(115200, RAK_AT_MODE);

  Serial.println("RAKwireless LoRaWan OTAA Example");
  Serial.println("------------------------------------------------------");

  pinMode(WB_IO2, OUTPUT);
  digitalWrite(WB_IO2, HIGH);

  // Initialize Serial for debug output
  time_t timeout = millis();
  Serial.begin(115200);
  while (!Serial)
  {
    if ((millis() - timeout) < 5000)
    {
      delay(100);
    }
    else
    {
      break;
    }
  }

  Serial.println("SCD30 Automatic self-calibration Example.");

  Wire.begin();

  //Start sensor using the Wire port and enable the auto-calibration (ASC)
  if (airSensor.begin(Wire, true) == false)
  {
    Serial.println("Air sensor not detected. Please check wiring. Freezing...");
    while (1)
    {
      delay(10);
    }
  }

  Serial.print("Automatic self-calibration set to：");
  if (airSensor.getAutoSelfCalibration() == true)
    Serial.println("true");
  else
    Serial.println("false");

  // OTAA Device EUI MSB first
  uint8_t node_device_eui[8] = OTAA_DEVEUI;
  // OTAA Application EUI MSB first
  uint8_t node_app_eui[8] = OTAA_APPEUI;
  // OTAA Application Key MSB first
  uint8_t node_app_key[16] = OTAA_APPKEY;

  if (!api.lorawan.appeui.set(node_app_eui, 8)) {
    Serial.printf("LoRaWan OTAA - set application EUI is incorrect! \r\n");
    return;
  }
  if (!api.lorawan.appkey.set(node_app_key, 16)) {
    Serial.printf("LoRaWan OTAA - set application key is incorrect! \r\n");
    return;
  }
  if (!api.lorawan.deui.set(node_device_eui, 8)) {
    Serial.printf("LoRaWan OTAA - set device EUI is incorrect! \r\n");
    return;
  }

  if (!api.lorawan.band.set(OTAA_BAND)) {
    Serial.printf("LoRaWan OTAA - set band is incorrect! \r\n");
    return;
  }
  if (!api.lorawan.deviceClass.set(RAK_LORA_CLASS_A)) {
    Serial.printf("LoRaWan OTAA - set device class is incorrect! \r\n");
    return;
  }
  if (!api.lorawan.njm.set(RAK_LORA_OTAA))	// Set the network join mode to OTAA
  {
    Serial.
	printf("LoRaWan OTAA - set network join mode is incorrect! \r\n");
    return;
  }
  if (!api.lorawan.join())	// Join to Gateway
  {
    Serial.printf("LoRaWan OTAA - join fail! \r\n");
    return;
  }

  /** Wait for Join success */
  while (api.lorawan.njs.get() == 0) {
    Serial.print("Wait for LoRaWAN join...");
    api.lorawan.join();
    delay(10000);
  }

  if (!api.lorawan.adr.set(true)) {
    Serial.printf
	("LoRaWan OTAA - set adaptive data rate is incorrect! \r\n");
    return;
  }
  if (!api.lorawan.rety.set(1)) {
    Serial.printf("LoRaWan OTAA - set retry times is incorrect! \r\n");
    return;
  }
  if (!api.lorawan.cfm.set(1)) {
    Serial.printf("LoRaWan OTAA - set confirm mode is incorrect! \r\n");
    return;
  }

  /** Check LoRaWan Status*/
  Serial.printf("Duty cycle is %s\r\n", api.lorawan.dcs.get()? "ON" : "OFF");	// Check Duty Cycle status
  Serial.printf("Packet is %s\r\n", api.lorawan.cfm.get()? "CONFIRMED" : "UNCONFIRMED");	// Check Confirm status
  uint8_t assigned_dev_addr[4] = { 0 };
  api.lorawan.daddr.get(assigned_dev_addr, 4);
  Serial.printf("Device Address is %02X%02X%02X%02X\r\n", assigned_dev_addr[0], assigned_dev_addr[1], assigned_dev_addr[2], assigned_dev_addr[3]);	// Check Device Address
  Serial.printf("Uplink period is %ums\r\n", OTAA_PERIOD);
  Serial.println("");
  api.lorawan.registerRecvCallback(recvCallback);
  api.lorawan.registerJoinCallback(joinCallback);
  api.lorawan.registerSendCallback(sendCallback);
}

void uplink_routine()
{
  /** Payload of Uplink */
  uint8_t data_len = 0;

  float temp = airSensor.getTemperature();
  float hum = airSensor.getHumidity();

  uint16_t co2_data = (airSensor.getCO2());
  uint16_t temperature_data = (temp) * 100;
  uint16_t humidity_data = (hum) * 100;

  collected_data[data_len++] = co2_data >> 8;
  collected_data[data_len++] = co2_data;
  collected_data[data_len++] = temperature_data >> 8;
  collected_data[data_len++] = temperature_data;
  collected_data[data_len++] = humidity_data >> 8;
  collected_data[data_len++] = humidity_data;

  Serial.println("Data Packet:");
  for (int i = 0; i < data_len; i++) {
    Serial.printf("0x%02X ", collected_data[i]);
  }
    Serial.println();

    Serial.print("co2(ppm):");
    Serial.print(co2_data);

    Serial.print(" temp(C):");
    Serial.print(temp, 2);

    Serial.print(" humidity(%):");
    Serial.print(hum, 2);

  Serial.println("");

  /** Send the data package */
  if (api.lorawan.send(data_len, (uint8_t *) & collected_data, 2, true, 1)) {
    Serial.println("Sending is requested");
  } else {
    Serial.println("Sending failed");
  }
}

void loop()
{
  static uint64_t last = 0;
  static uint64_t elapsed;

  if (airSensor.dataAvailable())
  {
    if ((elapsed = millis() - last) > OTAA_PERIOD) {
      uplink_routine();
      last = millis();
    }
  }
  else
    Serial.println("Waiting for new data");
  //Serial.printf("Try sleep %ums..", OTAA_PERIOD);
  api.system.sleep.all(OTAA_PERIOD);
  //Serial.println("Wakeup..");
}

Updated October 24, 2024 00:23
