Bluetooth Low Energy (BLE) is a wireless network technology that is used for sensor data and low-bandwidth applications where small amounts of data are transferred at slower speeds.
BLE was introduced in 2010. The original Bluetooth defined in the previous versions is referred to as Bluetooth Classic. BLE is a new technology focused on the Internet of Things (IoT) rather than an upgrade to Bluetooth Classic. BLE is also known as "Bluetooth Smart."
Terms and Definitions
Central/Client: A device that scans for and initiates connections to BLE peripherals in order to perform some operation. This is usually a mobile device, but it can also be an embedded device like the RAK4630.
Peripheral: A device that advertises its presence and accepts connections from a Central to complete a task.
Advertising: When a BLE device wants to communicate its presence to other devices in the area, it broadcasts small packets of data, which are called advertising packets or advertisements.
GAP: Generic Access Profile provides a framework that defines how BLE devices interact with each other.
GATT: The Generic Attribute Profile defines the format of the data exposed by a BLE device.
GATT Service: A collection of characteristics (data fields) that describe a device feature. For example, the DIS (Device Information Service) can include a feature that represents the device's serial number.
GATT Characteristic: An entity containing meaningful data that can typically be read from or written to.
Notification: A method for a BLE peripheral to notify the Central when the value of a characteristic changes. The central does not need to acknowledge receipt of the packet.
Indication: Same as an indication, except each data packet is acknowledged by the Central. This guarantees their delivery at the expense of throughput.
UUID: Universally unique identifier, a 128-bit number used to identify services, characteristics, and descriptors.
Motivation
The Bluetooth Special Interest Group (SIG) manages publicly specified GATT services.
The Adafruit Bluefruit library library makes it easy to add Bluetooth Low Energy connectivity to your IoT project. Bluefruit offers common BLE services such as:
Battery Service (BAS)
- Send notifications about the battery level of the device. DIS (Device Information Service)
- Provides generic information about the device. Such as: manufacturer name, model, serial number. NUS (Nordic UART Service)
- This is a proprietary service defined by Nordic Semiconductors that we can use as a baseline transport mechanism between BLE modules. You can use this service to send any kind of data from central to peripheral or vice versa.
But BLE opens up a world of endless possibilities by allowing developers to specify various custom profiles for different use cases. The lack of good examples of custom BLE profiles using Adafruit Bluefruit inspired me to write this article. If you want to generate a new UUID for your application, see the following link: https://www.novelbits.io/uuid-for-custom-services-and-characteristics/
Prerequisites
- WisBlock Starter Kit with RAK4631 and RAK5005-O
- Mobile with nrf Connect for Mobile application installed
Install Arduino BSP
This guide requires the installation of an Arduino board support package. Refer to this article for information.
Testing Custom BLE Sketch
Download the sketch first. Or, you can copy the following code:
#include <bluefruit.h>
// Custom UUID used to differentiate this device.
// Use any online UUID generator to generate a valid UUID.
// Note that the byte order is reversed ... CUSTOM_UUID
// below corresponds to the follow value:
// df67ff1a-718f-11e7-8cf7-a6006ad3dba0
//E54B0001-67F5-479E-8711-B3B99198CE6C - led service
//E54B0002-67F5-479E-8711-B3B99198CE6C - led characteristic
const uint8_t LED_SERVICE_UUID[] =
{
0x6C, 0xCE, 0x98, 0x91, 0xB9, 0xB3, 0x11, 0x87,
0x9E, 0x47, 0xF5, 0x67, 0x01, 0x00, 0x4B, 0xE5
};
const uint8_t LED_CHR_UUID[] =
{
0x6C, 0xCE, 0x98, 0x91, 0xB9, 0xB3, 0x11, 0x87,
0x9E, 0x47, 0xF5, 0x67, 0x02, 0x00, 0x4B, 0xE5
};
// RAK4630 supply two LED
// Green LED
#ifndef LED_BUILTIN
#define LED_BUILTIN 35
#endif
// Blue LED
#ifndef LED_BUILTIN2
#define LED_BUILTIN2 36
#endif
BLEService lbs(LED_SERVICE_UUID);
BLECharacteristic lsbLED(LED_CHR_UUID);
BLEConnection* connection;
void setupAdv(void)
{
Bluefruit.Advertising.addFlags(BLE_GAP_ADV_FLAGS_LE_ONLY_GENERAL_DISC_MODE);
Bluefruit.Advertising.addTxPower();
// Include bleuart 128-bit uuid
Bluefruit.Advertising.addService(lbs);
// There isn't enough room in the advertising packet for the
// name so we'll place it on the secondary Scan Response packet
Bluefruit.ScanResponse.addName();
// For recommended advertising interval
// https://developer.apple.com/library/content/qa/qa1931/_index.html
Bluefruit.Advertising.setInterval(320,360); // in unit of 0.625 ms
Bluefruit.Advertising.restartOnDisconnect(true);
}
void setup()
{
Serial.begin(115200);
while ( !Serial ) delay(10); // for nrf52840 with native usb
Serial.println("BLE custom example");
Bluefruit.begin();
Bluefruit.setName("RAK4630");
// Configure callbacks
Bluefruit.Periph.setConnectCallback(connect_callback);
Bluefruit.Periph.setDisconnectCallback(disconnect_callback);
pinMode(LED_BUILTIN, OUTPUT);
digitalWrite(LED_BUILTIN, 0); // led off
lbs.begin();
lsbLED.setProperties(CHR_PROPS_READ | CHR_PROPS_WRITE);
lsbLED.setPermission(SECMODE_OPEN, SECMODE_OPEN);
lsbLED.setFixedLen(1);
lsbLED.begin();
lsbLED.write8(0x00); // led = off
lsbLED.setWriteCallback(led_write_callback);
// Set up Advertising Packet
setupAdv();
// Start Advertising
Bluefruit.Advertising.start();
}
/**
* Callback invoked when a connection is dropped
* @param conn_handle connection where this event happens
* @param reason is a BLE_HCI_STATUS_CODE which can be found in ble_hci.h
*/
void disconnect_callback(uint16_t conn_handle, uint8_t reason)
{
(void) conn_handle;
(void) reason;
Serial.println();
Serial.print("Disconnected, reason = 0x");
Serial.println(reason, HEX);
lsbLED.write8(0x0);
}
// callback invoked when central connects
void connect_callback(uint16_t conn_handle)
{
// Get the reference to current connection
connection = Bluefruit.Connection(conn_handle);
char central_name[32] = { 0 };
connection->getPeerName(central_name, sizeof(central_name));
Serial.print("Connected to ");
Serial.println(central_name);
}
void led_write_callback(uint16_t conn_hdl, BLECharacteristic* chr, uint8_t* data, uint16_t len)
{
(void) conn_hdl;
(void) chr;
(void) len; // len should be 1
// data = 1 -> LED = On
// data = 0 -> LED = Off
digitalWrite(LED_BUILTIN,data[0]&1);
Serial.print("Data: ");
Serial.println(data[0],HEX);
lsbLED.write8(0x01);
}
void loop()
{
}Before upload the sketch, attach the LoRa and BLE antennas. Although this guide does not use LoRa, the LoRa antenna must be installed.
Connect your WisBlock Starter Kit to the PC using the USB cable.
Launch the Arduino IDE, choose File → Open, and select the path where you downloaded the sketch.
On the Arduino IDE, navigate to Tools → Board → RAKwireless nRF modules → WisBlock RAKwireless nRF modules → WisBlock Core RAK4631 Board to find your board in the Arduino menu.
Select the appropriate serial port for your board from the Tools → Port menu.
Finally, click the Upload button.
After that, check the log messages of the application. Open the Arduino Serial Monitor and launch the nRF Connect mobile application.

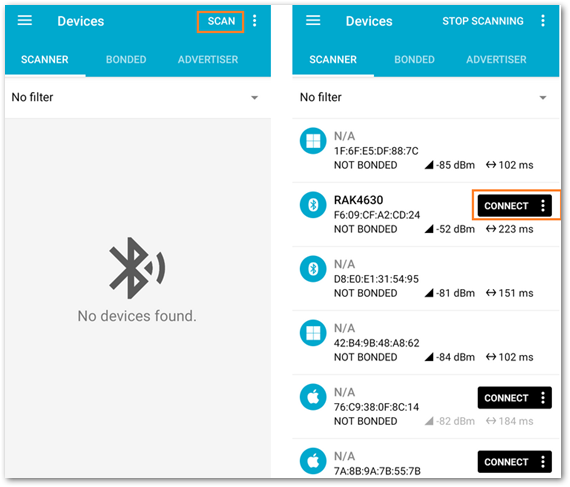

Click the SCAN button and look for the device RAK4630 in the list. If you have a WisBlock Starter Kit connected, you can see the blue LED flashing while the BLE is disconnected.
Finally, click the CONNECT button.
After a successful BLE connection, the blue LED turns off. To send a message using a custom BLE service, go to the CLIENT tab and click Unknown Service.
A new Unknown Service and Characteristic window will appear. Finally, click on the up arrow icon that has been highlighted.

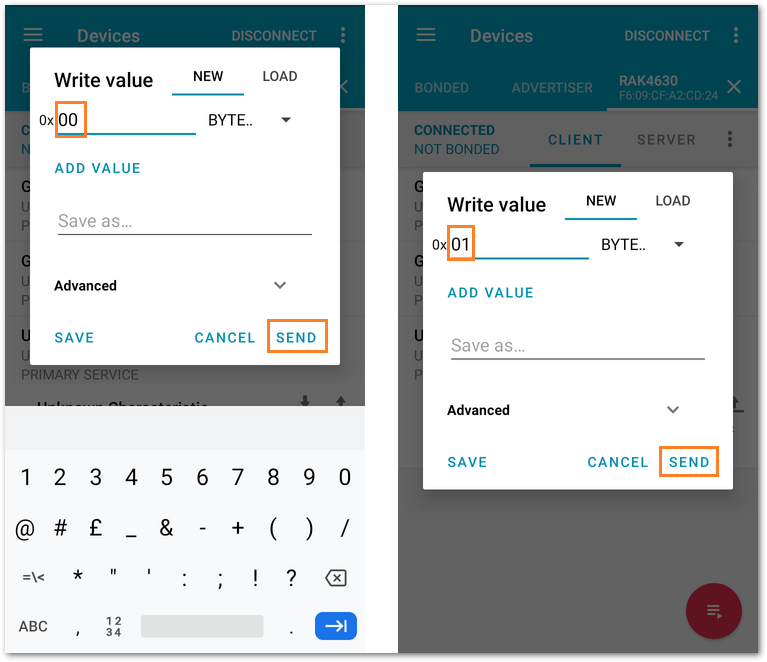

A new Write value window will appear. To turn off the green LED on the WisBlock Starter Kit RAK5005-O Base board, type 00 and then press the SEND button. To turn on the green LED, type 01 and then press the SEND button.
Use this example only as a reference to develop a more complete application.
