How To Use the WisBlock IO Pin Mapping Tool

How to Use the Pin Mapper

Download and save the Pin Mapper in .xlsx format, and then open it in Microsoft Excel.

Download Pin Mapper

đź“ť NOTE: Using other spreadsheet applications such as Libre Office and Open Office might not be able to export the cell format and equations correctly.

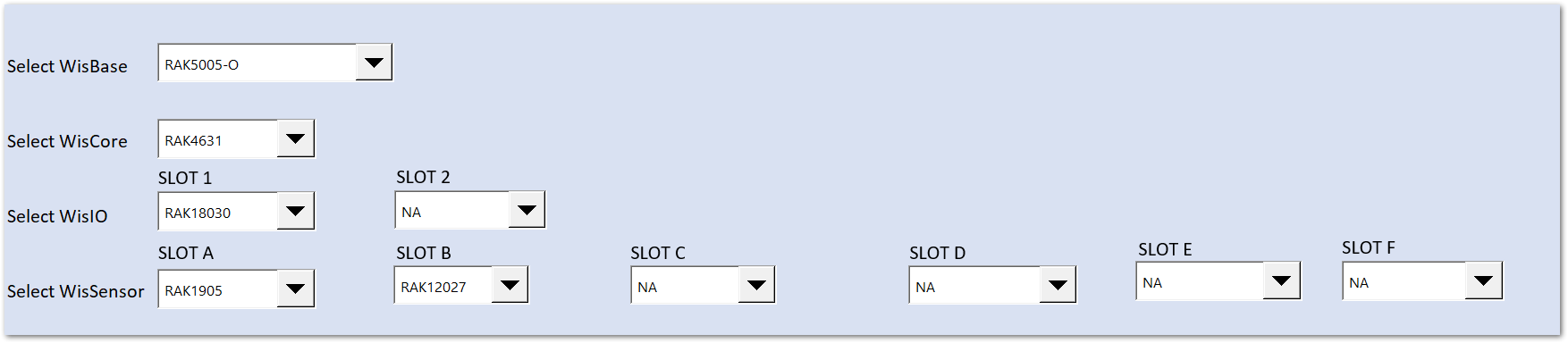

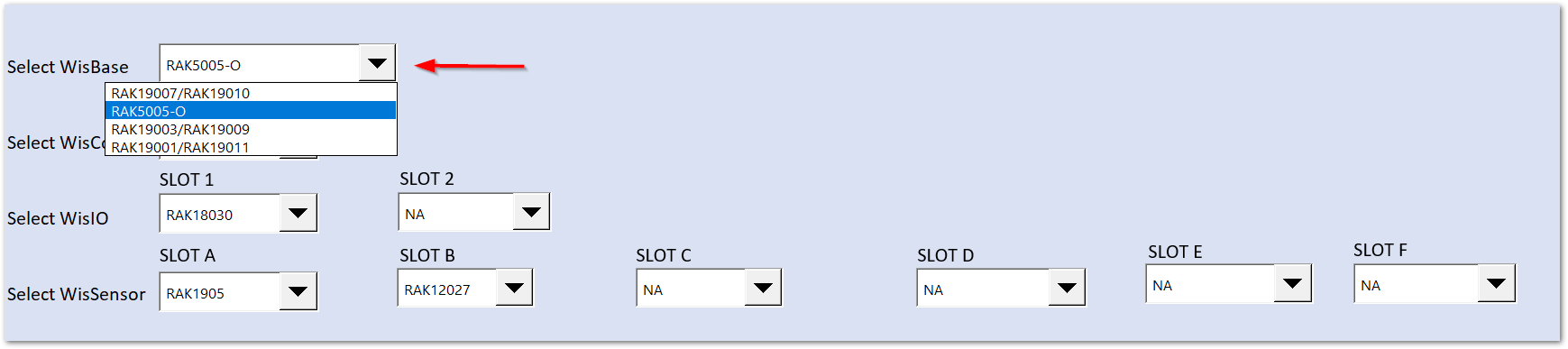

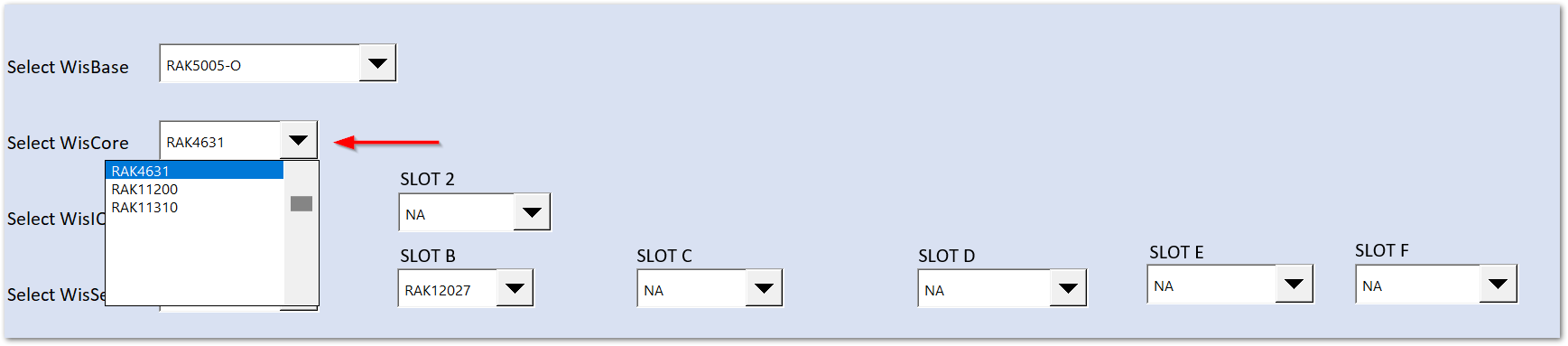

Select the WisBlock module/s from the dropdown list. The WisBase and WisCore are required fields.



Choose NA for those slots that are not applicable or for those slots that you will not use.


The mapper will only reflect pin compatibility data of slots available with the chosen WisBase.

đź“ť NOTE: Pinouts highlighted in yellow might cause conflicts.
  • Example 1: Board options were selected for both WisIO slots 1 and 2, but the tool didn’t show pin mapping compatibility info because RAK5005-O has one WisIO slot only.

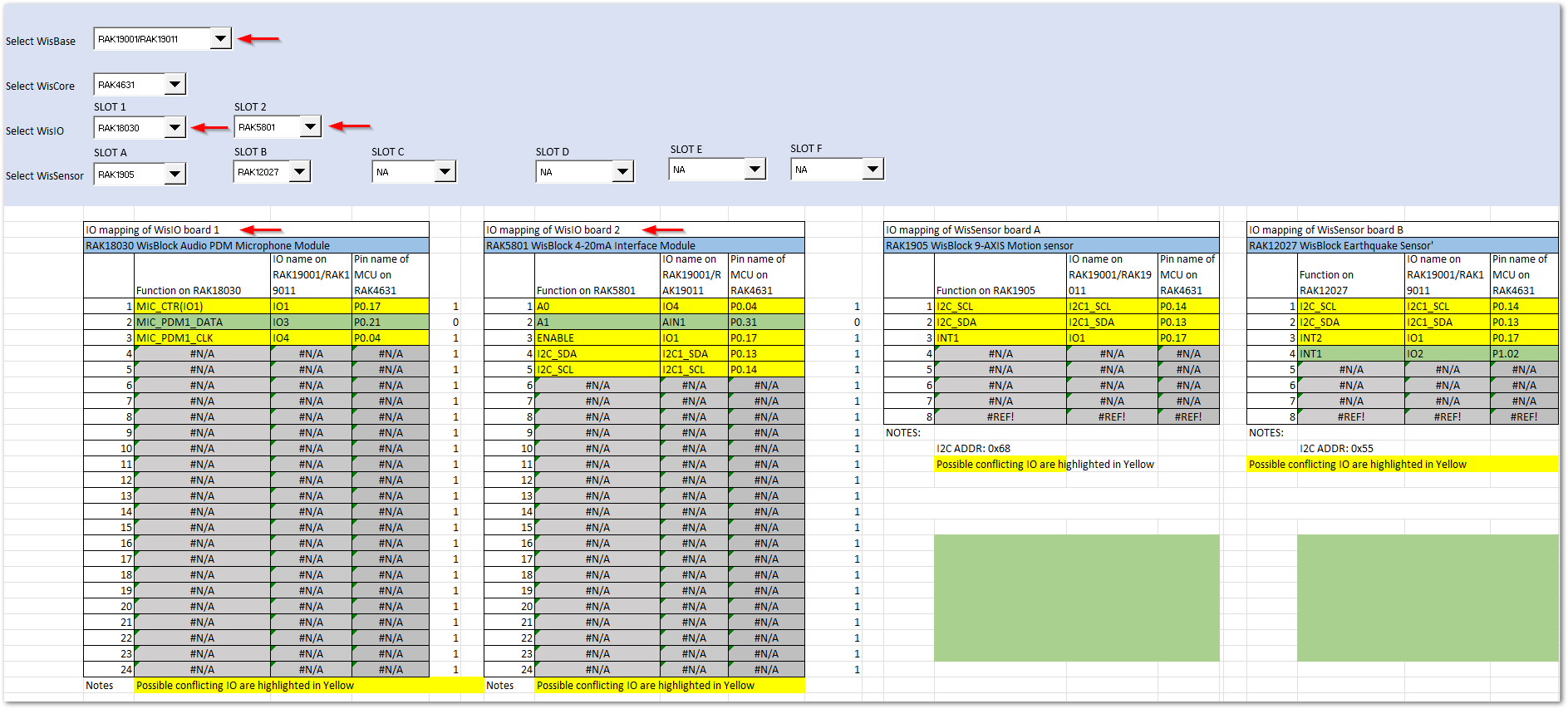

  • Example 2: Options were selected for both WisIO slots 1 and 2, and the tool showed pin mapping compatibility info for both WisIO Board 1 and 2 because RAK19001/19011 has two WisIO slots.
